NTR4170NT1G
  • Share:

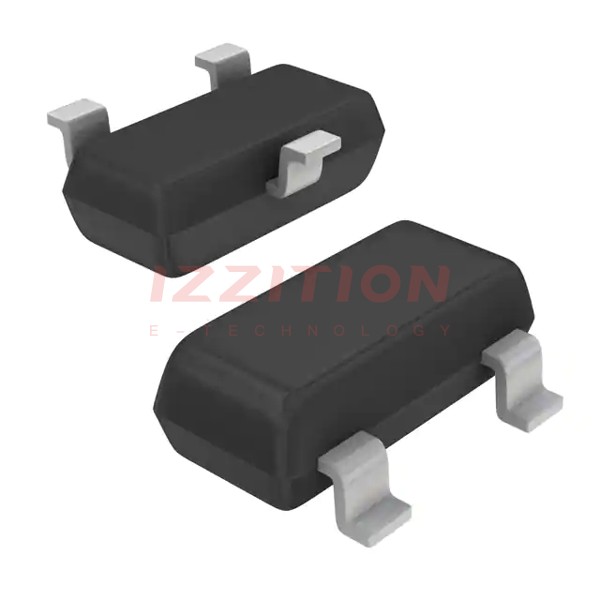

onsemi NTR4170NT1G

Manufacturer No:
NTR4170NT1G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 30V SOT23-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NTR4170NT1G is a power MOSFET produced by onsemi, designed to offer high performance and reliability in various electronic applications. This device is packaged in a SOT-23 form factor, making it suitable for space-constrained designs. It is lead-free and comes in tape and reel packaging for ease of use in high-volume manufacturing processes.

Key Specifications

ParameterValue
Minimum Operating Temperature-55°C
Maximum Operating Temperature+150°C
Power Dissipation (Pd)1.25 W
Channel ModeEnhancement
Package TypeSOT-23 (Pb-Free)

Key Features

  • High operating temperature range: -55°C to +150°C, making it suitable for harsh environments.
  • Enhancement mode operation for efficient switching.
  • Compact SOT-23 package for space-saving designs.
  • Lead-free and RoHS compliant, ensuring environmental sustainability.
  • High power dissipation capability of 1.25 W.

Applications

The NTR4170NT1G is versatile and can be used in a variety of applications, including but not limited to:

  • Power management systems
  • Switching circuits
  • Automotive systems
  • Industrial control systems
  • Consumer electronics requiring high reliability and efficiency.

Q & A

  1. What is the package type of the NTR4170NT1G? The NTR4170NT1G is packaged in a SOT-23 form factor.
  2. Is the NTR4170NT1G lead-free? Yes, the NTR4170NT1G is lead-free and RoHS compliant.
  3. What is the maximum operating temperature of the NTR4170NT1G? The maximum operating temperature is +150°C.
  4. What is the power dissipation capability of the NTR4170NT1G? The power dissipation capability is 1.25 W.
  5. In what channel mode does the NTR4170NT1G operate? The NTR4170NT1G operates in enhancement mode.
  6. What are some common applications of the NTR4170NT1G? Common applications include power management systems, switching circuits, automotive systems, and industrial control systems.
  7. What is the minimum operating temperature of the NTR4170NT1G? The minimum operating temperature is -55°C.
  8. Is the NTR4170NT1G suitable for high-volume manufacturing? Yes, it is available in tape and reel packaging for high-volume manufacturing.
  9. Where can I find detailed specifications for the NTR4170NT1G? Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Mouser Electronics.
  10. Is the NTR4170NT1G environmentally friendly? Yes, it is lead-free and RoHS compliant, making it an environmentally friendly option.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):2.5V, 10V
Rds On (Max) @ Id, Vgs:55mOhm @ 3.2A, 10V
Vgs(th) (Max) @ Id:1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:4.76 nC @ 4.5 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:432 pF @ 15 V
FET Feature:-
Power Dissipation (Max):480mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23-3 (TO-236)
Package / Case:TO-236-3, SC-59, SOT-23-3
0 Remaining View Similar

In Stock

$0.39
1,893

Please send RFQ , we will respond immediately.

Same Series
NTR4170NT3G
NTR4170NT3G
MOSFET N-CH 30V 3.2A SOT23-3

Similar Products

Part Number NTR4170NT1G NTR4170NT3G
Manufacturer onsemi onsemi
Product Status Active Obsolete
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V 30 V
Current - Continuous Drain (Id) @ 25°C 2.4A (Ta) 2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 10V 2.5V, 10V
Rds On (Max) @ Id, Vgs 55mOhm @ 3.2A, 10V 55mOhm @ 3.2A, 10V
Vgs(th) (Max) @ Id 1.4V @ 250µA 1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 4.76 nC @ 4.5 V 4.76 nC @ 4.5 V
Vgs (Max) ±12V ±12V
Input Capacitance (Ciss) (Max) @ Vds 432 pF @ 15 V 432 pF @ 15 V
FET Feature - -
Power Dissipation (Max) 480mW (Ta) 480mW (Ta)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package SOT-23-3 (TO-236) SOT-23-3 (TO-236)
Package / Case TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3
