Overview

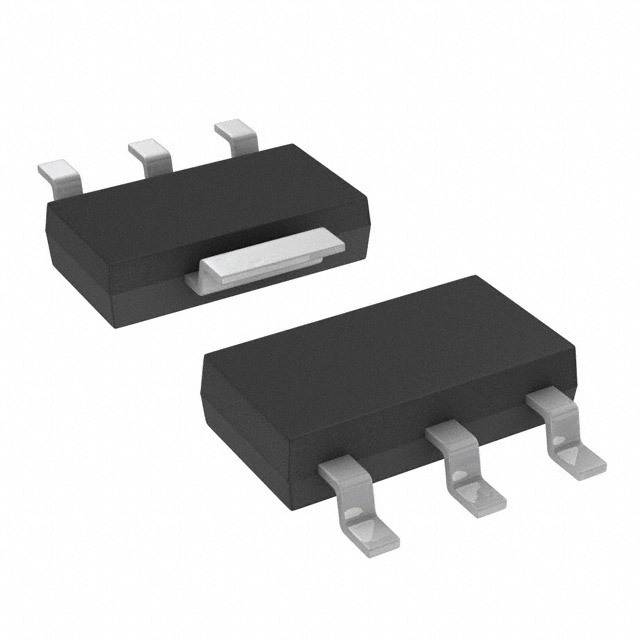

The NDT2955 is a 60V P-Channel MOSFET produced by ON Semiconductor using their high voltage Trench process. This device is optimized for power management applications and is designed to withstand high energy in avalanche and commutation modes. It is particularly suited for low-voltage, high-speed switching applications in power supplies, converters, and power motor controls.
Key Specifications
| Characteristic | Symbol | Value | Unit |
|---|---|---|---|
| Drain-to-Source Voltage | VDSS | -60 | Vdc |
| Gate-to-Source Voltage (Continuous) | VGS | ±20 | Vdc |
| Gate-to-Source Voltage (Non-repetitive, tp ≤ 10 ms) | VGSM | ±25 | Vdc |
| Drain Current (Continuous at Ta = 25°C) | ID | -12 | A |
| Drain Current (Single Pulse, tp ≤ 10 ms) | IDM | -18 | A |
| Total Power Dissipation at Ta = 25°C | PD | 55 | W |
| Operating and Storage Temperature Range | TJ, Tstg | -55 to 175 | °C |
| Single Pulse Drain-to-Source Avalanche Energy | EAS | 216 | mJ |
| Thermal Resistance - Junction-to-Case | RθJC | 2.73 | °C/W |
| Thermal Resistance - Junction-to-Ambient | RθJA | 71.4 | °C/W |
| Maximum Lead Temperature for Soldering | TL | 260 | °C |
| Static Drain-to-Source On-State Resistance | RDS(on) | 0.155 | Ω |
| Gate Threshold Voltage | VGS(th) | -2.0 to -4.0 | Vdc |
Key Features
- Avalanche Energy Specified
- IDSS and VDS(on) Specified at Elevated Temperature
- Designed for low-voltage, high-speed switching applications
- Withstands high energy in avalanche and commutation modes
- NVD and SVD prefixes for automotive and other applications requiring unique site and control change requirements; AEC-Q101 Qualified and PPAP Capable
- Pb-Free and RoHS Compliant
Applications
The NDT2955 is particularly well-suited for various power management applications, including:
- Power supplies
- Converters
- Power motor controls
- Bridge circuits where diode speed and commutating safe operating areas are critical
Q & A
- What is the maximum drain-to-source voltage of the NDT2955?
The maximum drain-to-source voltage (VDSS) is -60 Vdc. - What is the continuous drain current rating at Ta = 25°C?
The continuous drain current (ID) is -12 A. - What is the total power dissipation at Ta = 25°C?
The total power dissipation (PD) is 55 W. - What is the operating and storage temperature range?
The operating and storage temperature range is -55 to 175 °C. - Is the NDT2955 Pb-Free and RoHS Compliant?
Yes, the NDT2955 is Pb-Free and RoHS Compliant. - What are the typical applications of the NDT2955?
The NDT2955 is used in power supplies, converters, power motor controls, and bridge circuits. - What is the gate threshold voltage range?
The gate threshold voltage (VGS(th)) range is -2.0 to -4.0 Vdc. - What is the static drain-to-source on-state resistance?
The static drain-to-source on-state resistance (RDS(on)) is typically 0.155 Ω. - Is the NDT2955 suitable for automotive applications?
Yes, the NDT2955 with NVD and SVD prefixes is suitable for automotive and other applications requiring unique site and control change requirements; it is AEC-Q101 Qualified and PPAP Capable. - What is the maximum lead temperature for soldering?
The maximum lead temperature for soldering is 260 °C.
