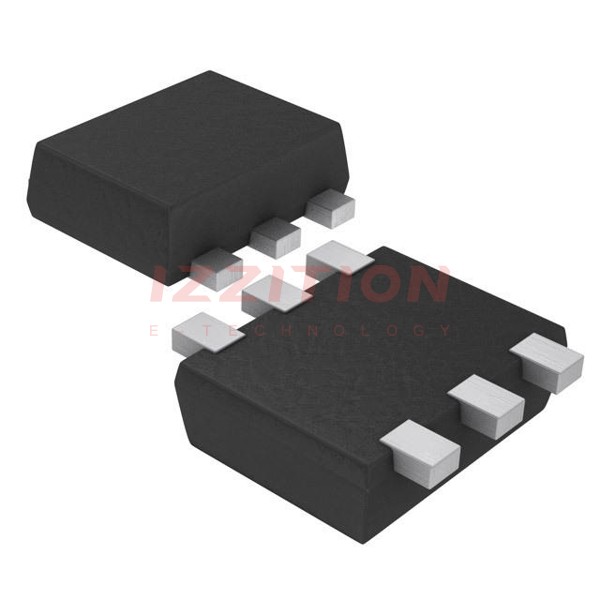

MCH6344-TL-H
  • Share:

onsemi MCH6344-TL-H

Manufacturer No:
MCH6344-TL-H
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 30V 2A 6MCPH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MCH6344-TL-H is a single P-Channel power MOSFET manufactured by onsemi. This component is designed for high-performance applications requiring efficient power management. It is part of onsemi's extensive range of discrete semiconductor products, known for their reliability and robustness.

Key Specifications

ParameterValue
Transistor PolarityP-Channel
Number of Channels1 Channel
Vds - Drain-Source Breakdown Voltage30 V
Id - Continuous Drain Current2 A
Power Dissipation (Ta)800 mW
Package TypeSurface Mount 6-MCPH

Key Features

  • High Drain-Source Breakdown Voltage: The MCH6344-TL-H features a breakdown voltage of 30 V, making it suitable for applications requiring high voltage handling.
  • Continuous Drain Current: It can handle a continuous drain current of 2 A, ensuring reliable performance in power-intensive applications.
  • Low Power Dissipation: With a power dissipation of 800 mW at ambient temperature, this MOSFET is efficient in managing power without excessive heat generation.
  • Surface Mount Package: The 6-MCPH surface mount package is compact and suitable for modern PCB designs, facilitating easy integration into various electronic systems.

Applications

The MCH6344-TL-H is versatile and can be used in a variety of applications, including:

  • Power Management Systems: It is ideal for power switching and voltage regulation in power supplies, DC-DC converters, and other power management circuits.
  • Automotive Systems: Its robustness and high voltage handling make it suitable for use in automotive electronics, such as in battery management and motor control systems.
  • Industrial Control Systems: It can be used in industrial control circuits, including motor drives, power amplifiers, and other high-current applications.

Q & A

  1. What is the transistor polarity of the MCH6344-TL-H?
    The transistor polarity of the MCH6344-TL-H is P-Channel.
  2. What is the maximum continuous drain current of the MCH6344-TL-H?
    The maximum continuous drain current is 2 A.
  3. What is the drain-source breakdown voltage of the MCH6344-TL-H?
    The drain-source breakdown voltage is 30 V.
  4. What is the power dissipation at ambient temperature for the MCH6344-TL-H?
    The power dissipation at ambient temperature is 800 mW.
  5. What type of package does the MCH6344-TL-H use?
    The MCH6344-TL-H uses a surface mount 6-MCPH package.
  6. What are some common applications for the MCH6344-TL-H?
    Common applications include power management systems, automotive systems, and industrial control systems.
  7. Who is the manufacturer of the MCH6344-TL-H?
    The manufacturer is onsemi.
  8. Where can I find detailed specifications for the MCH6344-TL-H?
    Detailed specifications can be found on the official onsemi website, as well as on distributor websites like Mouser and Digi-Key.
  9. Is the MCH6344-TL-H suitable for high-temperature applications?
    While it is robust, it is important to refer to the datasheet for specific temperature ratings and ensure it meets the requirements of your application.
  10. Can the MCH6344-TL-H be used in high-frequency applications?
    The suitability for high-frequency applications should be evaluated based on the component's switching characteristics and the specific requirements of your application.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4V, 10V
Rds On (Max) @ Id, Vgs:150mOhm @ 1A, 10V
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:3.9 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:172 pF @ 10 V
FET Feature:-
Power Dissipation (Max):800mW (Ta)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-MCPH
Package / Case:6-SMD, Flat Leads
0 Remaining View Similar

In Stock

$0.15
3,397

Please send RFQ , we will respond immediately.

Same Series
MCH6344-TL-W
MCH6344-TL-W
MOSFET P-CH 30V 2A SC88FL/MCPH6

Similar Products

Part Number MCH6344-TL-H MCH6444-TL-H MCH6344-TL-W MCH6341-TL-H
Manufacturer onsemi onsemi onsemi onsemi
Product Status Obsolete Obsolete Obsolete Discontinued at Digi-Key
FET Type P-Channel N-Channel P-Channel P-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V 35 V 30 V 30 V
Current - Continuous Drain (Id) @ 25°C 2A (Ta) 2.5A (Ta) 2A (Ta) 5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4V, 10V 4V, 10V 4V, 10V 4V, 10V
Rds On (Max) @ Id, Vgs 150mOhm @ 1A, 10V 98mOhm @ 1.5A, 10V 150mOhm @ 1A, 10V 59mOhm @ 3A, 10V
Vgs(th) (Max) @ Id - - 2.6V @ 1mA -
Gate Charge (Qg) (Max) @ Vgs 3.9 nC @ 10 V 4 nC @ 10 V 3.9 nC @ 10 V 10 nC @ 10 V
Vgs (Max) ±20V ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 172 pF @ 10 V 186 pF @ 20 V 172 pF @ 10 V 430 pF @ 10 V
FET Feature - - - -
Power Dissipation (Max) 800mW (Ta) 800mW (Ta) 800mW (Ta) 1.5W (Ta)
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ) -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package 6-MCPH 6-MCPH SC-88FL/MCPH6 6-MCPH
Package / Case 6-SMD, Flat Leads 6-SMD, Flat Leads 6-TSSOP, SC-88, SOT-363 6-SMD, Flat Leads
