FDMS4D0N12C
  • Share:

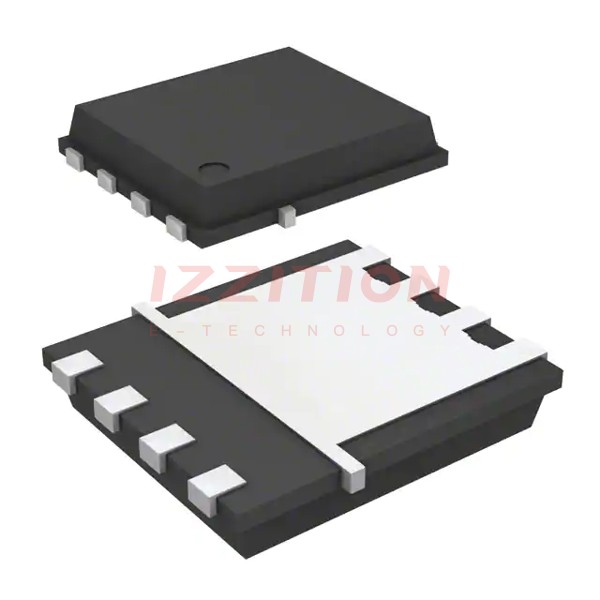

onsemi FDMS4D0N12C

Manufacturer No:
FDMS4D0N12C
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 120V 18.5A/114A 8QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDMS4D0N12C is a high-performance, single N-Channel PowerTrench® MOSFET produced by onsemi. This device is designed for low to medium voltage applications and features a compact PQFN8 package. It is known for its high current handling capability, low on-resistance, and robust thermal performance, making it suitable for a variety of power management and switching applications.

Key Specifications

ParameterValue
Voltage Rating (Vds)120 V
Continuous Drain Current (Id)118 A
Maximum Drain Current (Idm)628 A
On-Resistance (Rds(on))4.0 mΩ
Package TypePQFN8 (5 x 6 mm)
Power Dissipation (Pd)106 W
Gate Threshold Voltage (Vgs(th))2.0 - 4.0 V

Key Features

  • High current handling capability up to 118 A continuous and 628 A maximum.
  • Low on-resistance of 4.0 mΩ, reducing power losses.
  • Compact PQFN8 package (5 x 6 mm) for space-efficient designs.
  • Shielded Gate technology for improved switching performance and reduced gate charge.
  • High power dissipation of 106 W, suitable for demanding applications.

Applications

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Automotive systems, including electric vehicles and hybrid vehicles.
  • Industrial power systems and control circuits.
  • Renewable energy systems, such as solar and wind power inverters.

Q & A

  1. What is the voltage rating of the FDMS4D0N12C MOSFET?
    The voltage rating (Vds) of the FDMS4D0N12C is 120 V.
  2. What is the maximum continuous drain current of the FDMS4D0N12C?
    The maximum continuous drain current (Id) is 118 A.
  3. What is the on-resistance of the FDMS4D0N12C?
    The on-resistance (Rds(on)) is 4.0 mΩ.
  4. What package type does the FDMS4D0N12C come in?
    The FDMS4D0N12C comes in a PQFN8 package (5 x 6 mm).
  5. What are some common applications for the FDMS4D0N12C?
    Common applications include power supplies, motor control systems, automotive systems, industrial power systems, and renewable energy systems.
  6. What is the maximum power dissipation of the FDMS4D0N12C?
    The maximum power dissipation (Pd) is 106 W.
  7. What is the gate threshold voltage range of the FDMS4D0N12C?
    The gate threshold voltage (Vgs(th)) range is 2.0 - 4.0 V.
  8. Is the FDMS4D0N12C suitable for high-frequency switching applications?
    Yes, the FDMS4D0N12C is suitable for high-frequency switching applications due to its low on-resistance and shielded gate technology.
  9. Where can I find detailed specifications for the FDMS4D0N12C?
    Detailed specifications can be found in the datasheet available on onsemi's official website and other electronic component distributors like RS Components and TME.
  10. What is the significance of the Shielded Gate technology in the FDMS4D0N12C?
    The Shielded Gate technology improves switching performance by reducing gate charge and enhancing overall efficiency.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):120 V
Current - Continuous Drain (Id) @ 25°C:18.5A (Ta), 114A (Tc)
Drive Voltage (Max Rds On, Min Rds On):6V, 10V
Rds On (Max) @ Id, Vgs:4mOhm @ 67A, 10V
Vgs(th) (Max) @ Id:4V @ 370A
Gate Charge (Qg) (Max) @ Vgs:82 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:6460 pF @ 60 V
FET Feature:-
Power Dissipation (Max):2.7W (Ta), 106W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-PQFN (5x6)
Package / Case:8-PowerTDFN
