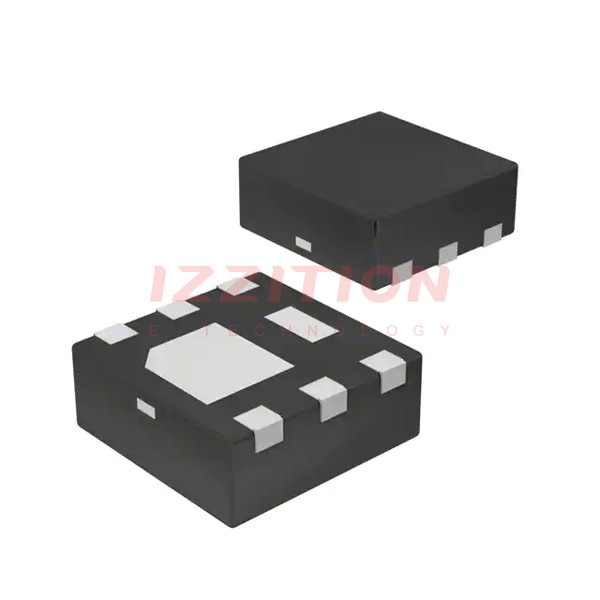

FDMA8051L
  • Share:

onsemi FDMA8051L

Manufacturer No:
FDMA8051L
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 10A 6MICROFET
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDMA8051L is a single N-Channel MOSFET produced by onsemi, designed to offer high efficiency and superior thermal performance. This device is particularly suited for synchronous buck converters, leveraging its low on-resistance (rDS(on)) and gate charge to minimize power losses and enhance overall system efficiency.

Key Specifications

ParameterValue
Voltage Rating (VDS)40 V
Current Rating (ID)10 A
On-Resistance (rDS(on))14 mΩ (typical at VGS = 10 V)
Gate Charge (Qg)12 nC (typical)
Power Dissipation (PD)Dependent on package and thermal conditions
Operating Temperature Range-55°C to 150°C

Key Features

  • Low on-resistance (rDS(on)) of 14 mΩ (typical at VGS = 10 V) for reduced power losses.
  • Low gate charge (Qg) of 12 nC (typical) for improved switching performance.
  • High current rating of 10 A, suitable for high-power applications.
  • Wide operating temperature range from -55°C to 150°C.
  • Optimized for synchronous buck converters, enhancing system efficiency.

Applications

  • Synchronous buck converters in power supply units.
  • High-efficiency DC-DC converters.
  • Power management systems in consumer electronics and industrial equipment.
  • Automotive and aerospace applications requiring high reliability and efficiency.

Q & A

  1. What is the voltage rating of the FDMA8051L MOSFET?
    The voltage rating (VDS) of the FDMA8051L is 40 V.
  2. What is the current rating of the FDMA8051L MOSFET?
    The current rating (ID) of the FDMA8051L is 10 A.
  3. What is the typical on-resistance (rDS(on)) of the FDMA8051L?
    The typical on-resistance (rDS(on)) is 14 mΩ at VGS = 10 V.
  4. What is the typical gate charge (Qg) of the FDMA8051L?
    The typical gate charge (Qg) is 12 nC.
  5. What are the primary applications of the FDMA8051L MOSFET?
    The FDMA8051L is primarily used in synchronous buck converters, high-efficiency DC-DC converters, and power management systems.
  6. What is the operating temperature range of the FDMA8051L?
    The operating temperature range is from -55°C to 150°C.
  7. Why is the FDMA8051L optimized for synchronous buck converters?
    The FDMA8051L is optimized for synchronous buck converters due to its low rDS(on) and gate charge, which enhance system efficiency.
  8. Where can I find detailed specifications and datasheets for the FDMA8051L?
    Detailed specifications and datasheets can be found on the onsemi official website, as well as on distributor websites like Mouser, Digi-Key, and Octopart.
  9. What are some of the industries that use the FDMA8051L MOSFET?
    The FDMA8051L is used in various industries including consumer electronics, industrial equipment, automotive, and aerospace.
  10. How does the FDMA8051L contribute to system efficiency?
    The FDMA8051L contributes to system efficiency through its low on-resistance and gate charge, which reduce power losses and improve switching performance.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:10A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:14mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:20 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1260 pF @ 20 V
FET Feature:-
Power Dissipation (Max):2.4W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-MicroFET (2x2)
Package / Case:6-WDFN Exposed Pad
0 Remaining View Similar

In Stock

$1.12
721

Please send RFQ , we will respond immediately.
