ATP216-TL-H
  • Share:

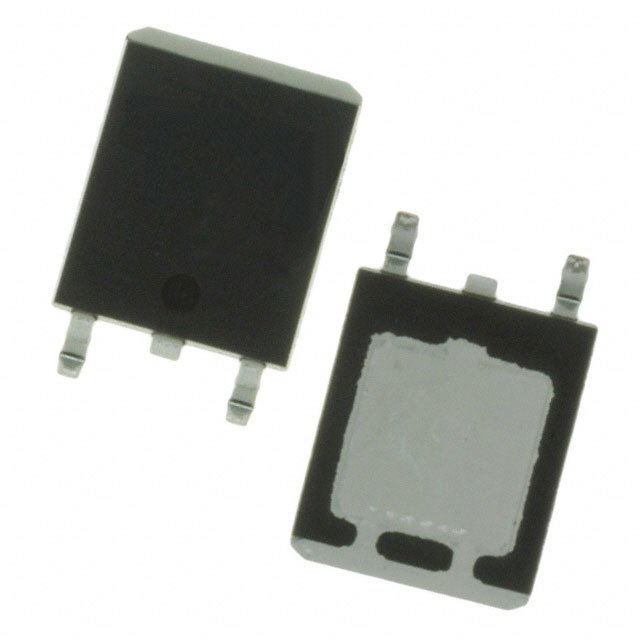

onsemi ATP216-TL-H

Manufacturer No:
ATP216-TL-H
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 50V 35A ATPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The ATP216-TL-H is an N-Channel Power MOSFET produced by onsemi. This device is designed for high-performance switching applications, offering a balance of low on-resistance and high current handling capabilities. It is part of onsemi's portfolio of low to medium voltage MOSFETs, making it suitable for a variety of power management and switching tasks.

Key Specifications

ParameterValueUnit
Drain-Source Breakdown Voltage (Vds)50V
Continuous Drain Current (Id)35A
Drain-Source On-Resistance (Rds On)23mΩ
Gate-Source Voltage (Vgs)±20V
Package TypeTO-220 (Single Gauge) / DPAK
Maximum Junction Temperature150°C

Key Features

  • Low On-Resistance: The ATP216-TL-H features a low Rds On of 23 mΩ, which minimizes power losses and enhances efficiency in switching applications.
  • High Current Handling: With a continuous drain current of 35 A, this MOSFET is capable of handling high current requirements.
  • Robust Gate Voltage: The device can operate with a gate-source voltage range of ±20 V, providing flexibility in control circuit design.
  • Compact Packaging: Available in TO-220 and DPAK packages, making it suitable for various board layouts and space constraints.

Applications

The ATP216-TL-H is versatile and can be used in a wide range of applications, including:

  • Power Management: DC-DC converters, power supplies, and voltage regulators.
  • Motor Control: Motor drives, servo motors, and other motor control systems.
  • Automotive Systems: Battery management, starter systems, and other automotive power electronics.
  • Industrial Automation: Control circuits, power amplifiers, and other industrial automation applications.

Q & A

  1. What is the drain-source breakdown voltage of the ATP216-TL-H?
    The drain-source breakdown voltage (Vds) is 50 V.
  2. What is the continuous drain current rating of the ATP216-TL-H?
    The continuous drain current (Id) is 35 A.
  3. What is the typical on-resistance of the ATP216-TL-H?
    The typical drain-source on-resistance (Rds On) is 23 mΩ.
  4. What are the package options for the ATP216-TL-H?
    The ATP216-TL-H is available in TO-220 and DPAK packages.
  5. What is the maximum junction temperature for the ATP216-TL-H?
    The maximum junction temperature is 150°C.
  6. Is the ATP216-TL-H suitable for high-frequency switching applications?
    Yes, it is designed for high-performance switching applications.
  7. Can the ATP216-TL-H be used in automotive systems?
    Yes, it can be used in various automotive power electronics applications.
  8. What is the gate-source voltage range for the ATP216-TL-H?
    The gate-source voltage range is ±20 V.
  9. Is the ATP216-TL-H available for purchase through major distributors?
    Yes, it is available through distributors like Mouser, Digi-Key, and others.
  10. Where can I find detailed specifications and datasheets for the ATP216-TL-H?
    Detailed specifications and datasheets can be found on the onsemi website and through distributors like Mouser and Digi-Key.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):50 V
Current - Continuous Drain (Id) @ 25°C:35A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
Rds On (Max) @ Id, Vgs:23mOhm @ 18A, 4.5V
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:30 nC @ 4.5 V
Vgs (Max):±10V
Input Capacitance (Ciss) (Max) @ Vds:2700 pF @ 20 V
FET Feature:-
Power Dissipation (Max):40W (Tc)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:ATPAK
Package / Case:ATPAK (2 leads+tab)
0 Remaining View Similar

In Stock

-
244

Please send RFQ , we will respond immediately.

Similar Products

Part Number ATP216-TL-H ATP218-TL-H ATP206-TL-H ATP212-TL-H ATP213-TL-H ATP214-TL-H
Manufacturer onsemi onsemi onsemi onsemi onsemi onsemi
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Discontinued at Digi-Key
FET Type N-Channel N-Channel N-Channel N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 50 V 30 V 40 V 60 V 60 V 60 V
Current - Continuous Drain (Id) @ 25°C 35A (Ta) 100A (Ta) 40A (Ta) 35A (Ta) 50A (Ta) 75A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V 2.5V, 4.5V 4.5V, 10V 4V, 10V 4V, 10V 4V, 10V
Rds On (Max) @ Id, Vgs 23mOhm @ 18A, 4.5V 3.8mOhm @ 50A, 4.5V 16mOhm @ 20A, 10V 23mOhm @ 18A, 10V 16mOhm @ 25A, 10V 8.1mOhm @ 38A, 10V
Vgs(th) (Max) @ Id - - - - - -
Gate Charge (Qg) (Max) @ Vgs 30 nC @ 4.5 V 70 nC @ 4.5 V 27 nC @ 10 V 34.5 nC @ 10 V 58 nC @ 10 V 96 nC @ 10 V
Vgs (Max) ±10V ±10V ±20V ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 2700 pF @ 20 V 6600 pF @ 10 V 1630 pF @ 20 V 1820 pF @ 20 V 3150 pF @ 20 V 4850 pF @ 20 V
FET Feature - - - - - -
Power Dissipation (Max) 40W (Tc) 60W (Tc) 40W (Tc) 40W (Tc) 50W (Tc) 60W (Tc)
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package ATPAK ATPAK ATPAK ATPAK ATPAK ATPAK
Package / Case ATPAK (2 leads+tab) ATPAK (2 leads+tab) ATPAK (2 leads+tab) ATPAK (2 leads+tab) ATPAK (2 leads+tab) ATPAK (2 leads+tab)
