PMCPB5530X
  • Share:

NXP USA Inc. PMCPB5530X

Manufacturer No:
PMCPB5530X
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
NOW NEXPERIA PMCPB5530X - SMALL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

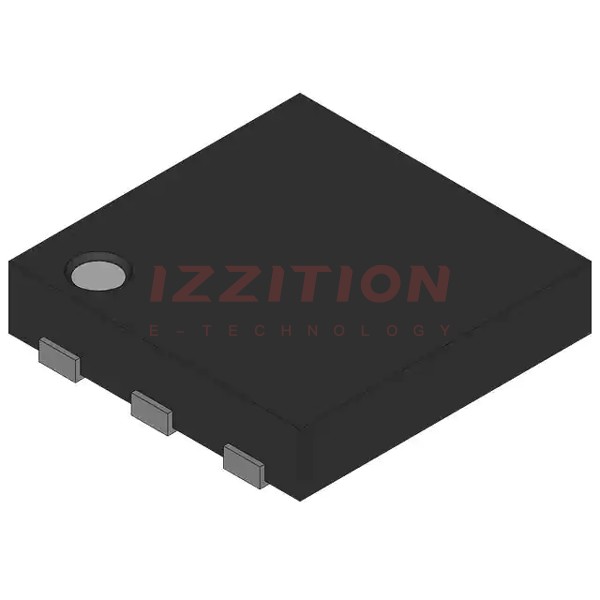

The PMCPB5530X is a 20 V, complementary Trench MOSFET produced by Nexperia, formerly part of NXP USA Inc. This component is designed to offer high performance and efficiency in various electronic applications. It features Trench MOSFET technology, which provides very fast switching times and low on-resistance. The device is packaged in a small and leadless ultra-thin SMD plastic package (DFN2020-6 or SOT1118), measuring 2 x 2 x 0.65 mm, with an exposed drain pad for enhanced thermal performance.

Key Specifications

Parameter Value
Type Number PMCPB5530X
Package DFN2020-6 (SOT1118)
VDS [max] 20 V
VGS [max] 12 V
RDSon [max] @ VGS = 4.5 V; @25°C 34 mΩ
RDSon [max] @ VGS = 2.5 V 46 mΩ
Tj [max] 150°C
ID [max] 5.3 A
QGD [typ] 1.5 nC
QG(tot) [typ] @ VGS = 4.5 V 14.4 nC
Ptot [max] 0.49 W
VGSth [typ] 0.65 V
Automotive Qualified No
Ciss [typ] 660 pF
Coss [typ] 63 pF

Key Features

  • Very Fast Switching: The PMCPB5530X benefits from Trench MOSFET technology, enabling very fast switching times.
  • Small and Leadless Package: The device is packaged in a small and leadless ultra-thin SMD plastic package (DFN2020-6 or SOT1118), measuring 2 x 2 x 0.65 mm.
  • Exposed Drain Pad: The package includes an exposed drain pad for enhanced thermal performance.
  • Low On-Resistance: The MOSFET offers low RDSon values, making it suitable for high-efficiency applications.
  • RoHS Compliant: The component is lead-free and RoHS compliant, ensuring environmental sustainability.

Applications

The PMCPB5530X is versatile and can be used in a variety of applications across different industries, including:

  • Automotive: Suitable for automotive systems requiring high efficiency and reliability.
  • Industrial: Used in industrial power systems, motor control, and power supplies.
  • Consumer Electronics: Found in consumer electronics such as power adapters, battery chargers, and other portable devices.
  • Power and Computing: Used in power management and computing systems where high efficiency and fast switching are critical.

Q & A

  1. What is the maximum drain-source voltage (VDS) of the PMCPB5530X?

    The maximum drain-source voltage (VDS) is 20 V.

  2. What is the package type of the PMCPB5530X?

    The PMCPB5530X is packaged in a DFN2020-6 (SOT1118) package.

  3. What is the maximum gate-source voltage (VGS) of the PMCPB5530X?

    The maximum gate-source voltage (VGS) is 12 V.

  4. What is the typical on-resistance (RDSon) at VGS = 4.5 V?

    The typical on-resistance (RDSon) at VGS = 4.5 V is 34 mΩ.

  5. What is the maximum junction temperature (Tj) of the PMCPB5530X?

    The maximum junction temperature (Tj) is 150°C.

  6. What is the maximum continuous drain current (ID) of the PMCPB5530X?

    The maximum continuous drain current (ID) is 5.3 A.

  7. Is the PMCPB5530X RoHS compliant?

    Yes, the PMCPB5530X is RoHS compliant and lead-free.

  8. What are some common applications of the PMCPB5530X?

    The PMCPB5530X is used in automotive, industrial, consumer electronics, and power and computing applications.

  9. What is the typical gate-source threshold voltage (VGSth) of the PMCPB5530X?

    The typical gate-source threshold voltage (VGSth) is 0.65 V.

  10. Is the PMCPB5530X automotive qualified?

    No, the PMCPB5530X is not automotive qualified.

Product Attributes

FET Type:-
Technology:-
Drain to Source Voltage (Vdss):-
Current - Continuous Drain (Id) @ 25°C:-
Drive Voltage (Max Rds On, Min Rds On):-
Rds On (Max) @ Id, Vgs:-
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):-
Input Capacitance (Ciss) (Max) @ Vds:-
FET Feature:-
Power Dissipation (Max):-
Operating Temperature:-
Mounting Type:-
Supplier Device Package:-
Package / Case:-
0 Remaining View Similar

In Stock

-
201

Please send RFQ , we will respond immediately.
