BUK9240-100A/C1,11
  • Share:

NXP USA Inc. BUK9240-100A/C1,11

Manufacturer No:
BUK9240-100A/C1,11
Manufacturer:
NXP USA Inc.
Package:
Tape & Reel (TR)
Description:

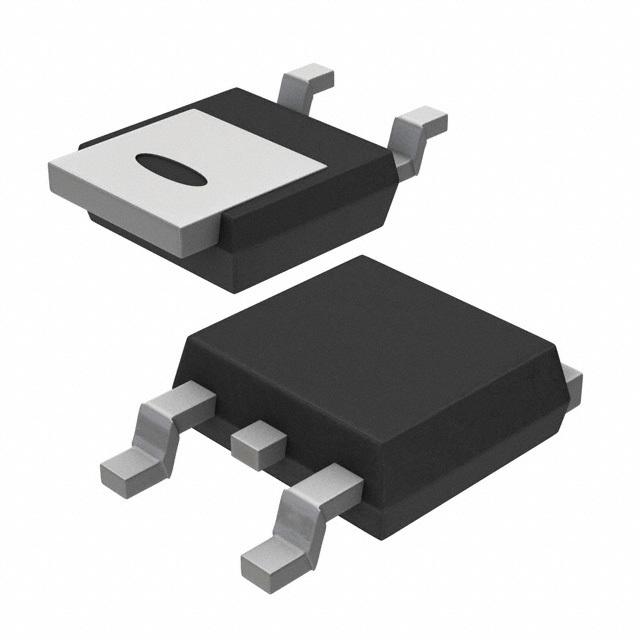

MOSFET N-CH 100V 33A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK9240-100A/C1,11 is an N-channel TrenchMOS logic level MOSFET produced by NXP USA Inc., now part of Nexperia. This device is designed to offer high performance and efficiency in various electronic applications. Although the specific part number BUK9240-100A/C1,11 is listed as obsolete, it remains relevant for understanding the capabilities and features of similar MOSFETs in the same series.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)100 V
ID (Continuous Drain Current)33 A
RDS(on) (On-State Resistance)Typically 11 mΩ at VGS = 10 V
VGS(th) (Gate-Source Threshold Voltage)Typically 2.5 V
QG (Total Gate Charge)Typically 43 nC at VDS = 50 V
PD (Power Dissipation)Dependent on package and thermal conditions

Key Features

  • Low conduction losses due to low on-state resistance (RDS(on))
  • Q101 compliant, ensuring high reliability and quality
  • Suitable for logic level gate drive sources, making it versatile for various applications
  • High efficiency and performance in switching applications
  • Thermally enhanced package for better heat dissipation

Applications

The BUK9240-100A/C1,11 MOSFET is suitable for a variety of applications, including but not limited to:

  • Automotive systems: Due to its Q101 compliance, it is reliable for use in automotive environments.
  • Power supplies: Its low on-state resistance makes it efficient for power supply applications.
  • Motor control: It is used in motor control circuits due to its high current handling capability.
  • Switching circuits: Its fast switching times and low gate charge make it ideal for high-frequency switching applications.

Q & A

  1. What is the drain-source voltage (VDS) of the BUK9240-100A/C1,11 MOSFET?
    The drain-source voltage (VDS) is 100 V.
  2. What is the continuous drain current (ID) of this MOSFET?
    The continuous drain current (ID) is 33 A.
  3. What is the typical on-state resistance (RDS(on)) of this device?
    The typical on-state resistance (RDS(on)) is 11 mΩ at VGS = 10 V.
  4. Is the BUK9240-100A/C1,11 Q101 compliant?
    Yes, it is Q101 compliant.
  5. What is the gate-source threshold voltage (VGS(th)) of this MOSFET?
    The gate-source threshold voltage (VGS(th)) is typically 2.5 V.
  6. What are the typical applications of the BUK9240-100A/C1,11 MOSFET?
    It is used in automotive systems, power supplies, motor control, and switching circuits.
  7. Why is the BUK9240-100A/C1,11 considered efficient for power supply applications?
    It is considered efficient due to its low on-state resistance (RDS(on)).
  8. Is the BUK9240-100A/C1,11 suitable for high-frequency switching applications?
    Yes, it is suitable due to its fast switching times and low gate charge.
  9. What is the status of the BUK9240-100A/C1,11 part number?
    The BUK9240-100A/C1,11 part number is listed as obsolete.
  10. Where can I find detailed specifications for the BUK9240-100A/C1,11 MOSFET?
    Detailed specifications can be found in the datasheet available from sources like Nexperia, Digi-Key, or Win-Source.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:33A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:38.6mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±10V
Input Capacitance (Ciss) (Max) @ Vds:3072 pF @ 25 V
FET Feature:-
Power Dissipation (Max):114W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

-
25
