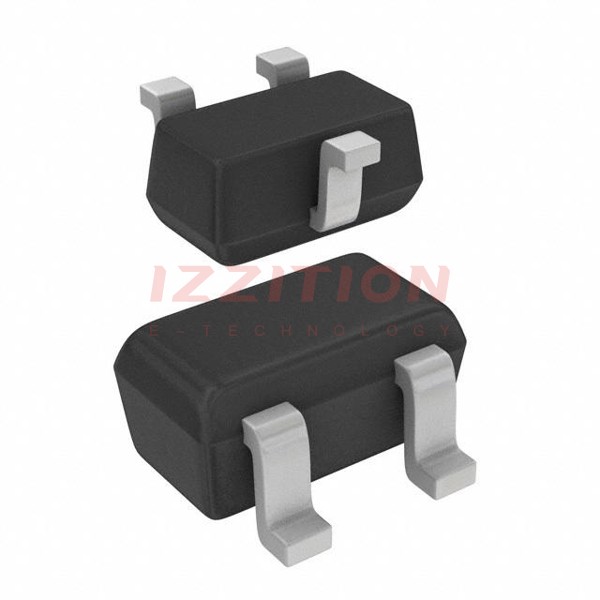

NXP USA Inc. BSS84AKT,115

Manufacturer No:
BSS84AKT,115
Manufacturer:
NXP USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 50V 150MA SC75
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BSS84AKT,115 is a P-channel Trench MOSFET produced by NXP USA Inc. This component is designed for a variety of applications requiring low on-resistance and high current handling. It features a compact SC-75 (SOT-416) package, making it suitable for space-constrained designs. The MOSFET is known for its high performance and reliability, making it a popular choice in various electronic circuits.

Key Specifications

ParameterValueUnit
Drain to Source Voltage (Vdss)50V
Continuous Drain Current (Id) @ 25°C150mA
On-Resistance (Rds On) @ Id, Vgs7.5Ω @ 100mA, 10V
Gate Threshold Voltage (Vgs(th)) @ Id2.1V @ 250µA
Input Capacitance (Ciss) @ Vds36pF @ 25V
Gate Charge (Qg) @ Vgs0.35nC @ 5V
Power Dissipation (Max)250mW (Ta), 770mW (Tc)mW
Operating Temperature-55°C ~ 150°C (TJ)°C
Package / CaseSC-75 (SOT-416)
Mounting TypeSurface Mount

Key Features

  • P-Channel Trench MOSFET with low on-resistance and high current handling.
  • Compact SC-75 (SOT-416) package suitable for space-constrained designs.
  • High performance and reliability.
  • Low gate threshold voltage for easy switching.
  • High input capacitance for stable operation.

Applications

The BSS84AKT,115 is versatile and can be used in a variety of applications, including:

  • Power switching and power management circuits.
  • Audio and video switching.
  • Motor control and drive circuits.
  • General-purpose switching in electronic devices.

Q & A

  1. What is the drain to source voltage (Vdss) of the BSS84AKT,115?
    The drain to source voltage (Vdss) is 50V.
  2. What is the continuous drain current (Id) at 25°C?
    The continuous drain current (Id) at 25°C is 150mA.
  3. What is the on-resistance (Rds On) of the BSS84AKT,115?
    The on-resistance (Rds On) is 7.5Ω at 100mA and 10V Vgs.
  4. What is the gate threshold voltage (Vgs(th)) of the BSS84AKT,115?
    The gate threshold voltage (Vgs(th)) is 2.1V at 250µA.
  5. What is the input capacitance (Ciss) of the BSS84AKT,115?
    The input capacitance (Ciss) is 36pF at 25V Vds.
  6. What is the gate charge (Qg) of the BSS84AKT,115?
    The gate charge (Qg) is 0.35nC at 5V Vgs.
  7. What is the maximum power dissipation of the BSS84AKT,115?
    The maximum power dissipation is 250mW (Ta) and 770mW (Tc).
  8. What is the operating temperature range of the BSS84AKT,115?
    The operating temperature range is -55°C to 150°C (TJ).
  9. What package type does the BSS84AKT,115 come in?
    The BSS84AKT,115 comes in an SC-75 (SOT-416) package.
  10. Is the BSS84AKT,115 suitable for surface mounting?
    Yes, the BSS84AKT,115 is suitable for surface mounting.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):50 V
Current - Continuous Drain (Id) @ 25°C:150mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:7.5Ohm @ 100mA, 10V
Vgs(th) (Max) @ Id:2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:0.35 nC @ 5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:36 pF @ 25 V
FET Feature:-
Power Dissipation (Max):250mW (Ta), 770mW (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SC-75
Package / Case:SC-75, SOT-416
