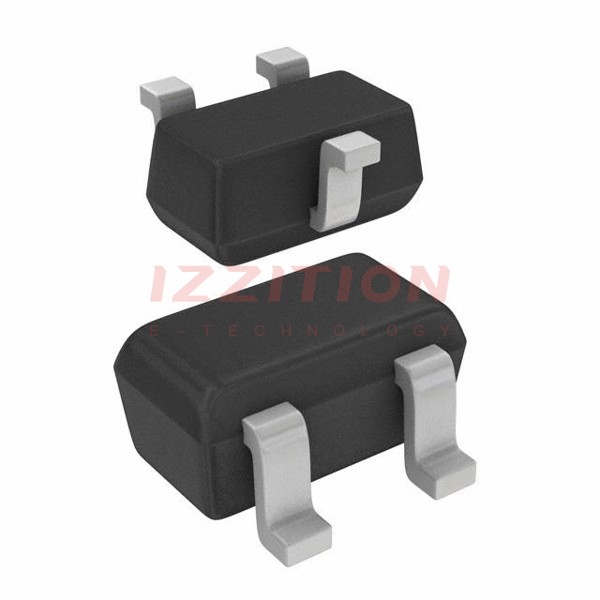

NXP USA Inc. 2PC4617R,135

Manufacturer No:
2PC4617R,135
Manufacturer:
NXP USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 50V 0.15A SC75
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2PC4617R,135 is a bipolar junction transistor (BJT) produced by NXP USA Inc. This transistor is part of the single NPN transistor family and is designed for general-purpose applications. It is packaged in the SC-75 (SOT-416) surface mount package, making it suitable for a variety of electronic circuits where space is a concern. The transistor is lead-free and RoHS compliant, ensuring it meets current environmental standards. Although the product is currently marked as obsolete, it remains available from various distributors for immediate shipping.

Key Specifications

Specification Value
Manufacturer NXP USA Inc.
Transistor Type NPN
Maximum Collector Current (Ic) 150 mA
Voltage - Collector Emitter Breakdown (Max) 50 V
Vce Saturation (Max) @ Ib, Ic 200 mV @ 5 mA, 50 mA
Current - Collector Cutoff (Max) 100 nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 180 @ 1 mA, 6 V
Power - Max 150 mW
Frequency - Transition 100 MHz
Operating Temperature 150°C (TJ)
Mounting Type Surface Mount
Package / Case SC-75, SOT-416
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Production Status (Lifecycle) Obsolete / Discontinued

Key Features

  • NPN Transistor: Designed as an NPN bipolar junction transistor, suitable for a wide range of general-purpose applications.
  • High Collector Current: Maximum collector current of 150 mA, making it suitable for applications requiring moderate current handling.
  • High Voltage Capability: Collector-emitter breakdown voltage of 50 V, ensuring robust performance in various voltage conditions.
  • Low Vce Saturation: Vce saturation of 200 mV at specified conditions, contributing to efficient switching and amplification.
  • High DC Current Gain: Minimum DC current gain (hFE) of 180 at specified conditions, ensuring reliable amplification.
  • Compact Packaging: SC-75 (SOT-416) surface mount package, ideal for space-constrained designs.
  • Environmental Compliance: Lead-free and RoHS compliant, meeting current environmental standards.

Applications

The 2PC4617R,135 transistor is versatile and can be used in a variety of applications, including:

  • General-Purpose Amplification: Suitable for amplifying signals in audio, video, and other electronic circuits.
  • Switching Circuits: Can be used in switching applications due to its high transition frequency and low Vce saturation.
  • Automotive Electronics: Applicable in automotive systems where robust performance and high reliability are required.
  • Consumer Electronics: Used in various consumer electronic devices such as TVs, radios, and other household appliances.

Q & A

  1. What is the maximum collector current of the 2PC4617R,135 transistor?

    The maximum collector current is 150 mA.

  2. What is the collector-emitter breakdown voltage of the 2PC4617R,135 transistor?

    The collector-emitter breakdown voltage is 50 V.

  3. What is the Vce saturation of the 2PC4617R,135 transistor?

    The Vce saturation is 200 mV at specified conditions.

  4. What is the DC current gain (hFE) of the 2PC4617R,135 transistor?

    The minimum DC current gain (hFE) is 180 at specified conditions.

  5. What is the maximum power dissipation of the 2PC4617R,135 transistor?

    The maximum power dissipation is 150 mW.

  6. What is the transition frequency of the 2PC4617R,135 transistor?

    The transition frequency is 100 MHz.

  7. What is the operating temperature range of the 2PC4617R,135 transistor?

    The operating temperature range is up to 150°C (TJ).

  8. Is the 2PC4617R,135 transistor RoHS compliant?

    Yes, the transistor is lead-free and RoHS compliant.

  9. What is the packaging type of the 2PC4617R,135 transistor?

    The transistor is packaged in the SC-75 (SOT-416) surface mount package.

  10. Is the 2PC4617R,135 transistor still in production?

    No, the 2PC4617R,135 transistor is currently marked as obsolete/discontinued.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):150 mA
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:200mV @ 5mA, 50mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:180 @ 1mA, 6V
Power - Max:150 mW
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-75, SOT-416
Supplier Device Package:SC-75
