Overview

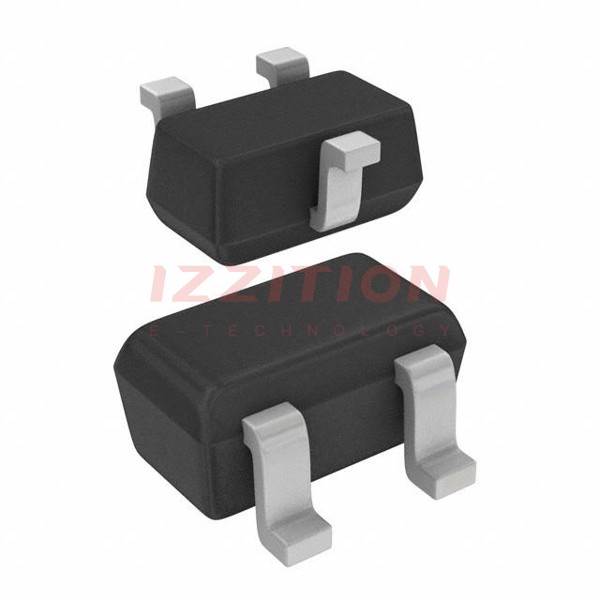

The 2PC4617R,115 is an NPN general-purpose transistor manufactured by NXP USA Inc. This transistor is housed in a SOT416 (SC-75) plastic surface-mounted package. It is designed for low current and low voltage applications, making it suitable for a variety of electronic systems. Although the 2PC4617R,115 is currently obsolete and no longer manufactured, it remains relevant for existing designs and maintenance of older systems.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Manufacturer Part Number | 2PC4617R,115 | |
| Manufacturer | NXP Semiconductors / Freescale | |
| Description | TRANS NPN 50V 0.15A SC-75 | |
| Transistor Type | NPN | |
| Package / Case | SOT416 (SC-75) | |
| Voltage - Collector Emitter Breakdown (Max) | 50V | V |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 5mA, 50mA | mV |
| Current - Collector (Ic) (Max) | 150mA | mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 180 @ 1mA, 6V | |
| Power - Max | 150mW | mW |
| Operating Temperature | -65°C to 150°C | °C |
| Frequency - Transition | 100MHz | MHz |
| Mounting Type | Surface Mount |
Key Features
- Low current capability with a maximum collector current of 150mA
- Low voltage operation with a maximum collector-emitter voltage of 50V
- High DC current gain (hFE) with a minimum value of 180 at 1mA and 6V
- Low collector-emitter saturation voltage of 200mV at 5mA and 50mA
- Compact SOT416 (SC-75) surface-mounted package
- High transition frequency of 100MHz
Applications
The 2PC4617R,115 is suitable for general-purpose switching and amplification in various applications, including:
- Communication systems
- Electronic Data Processing (EDP)
- Consumer electronics
Q & A
- What is the transistor type of the 2PC4617R,115?
The 2PC4617R,115 is an NPN transistor.
- What is the maximum collector current of the 2PC4617R,115?
The maximum collector current is 150mA.
- What is the maximum collector-emitter voltage of the 2PC4617R,115?
The maximum collector-emitter voltage is 50V.
- What is the package type of the 2PC4617R,115?
The transistor is housed in a SOT416 (SC-75) plastic surface-mounted package.
- What is the DC current gain (hFE) of the 2PC4617R,115?
The minimum DC current gain (hFE) is 180 at 1mA and 6V.
- What is the operating temperature range of the 2PC4617R,115?
The operating temperature range is -65°C to 150°C.
- What is the transition frequency of the 2PC4617R,115?
The transition frequency is 100MHz.
- Is the 2PC4617R,115 still in production?
No, the 2PC4617R,115 is obsolete and no longer manufactured.
- What are some common applications of the 2PC4617R,115?
It is used in general-purpose switching and amplification in communication, EDP, and consumer electronics.
- What is the maximum power dissipation of the 2PC4617R,115?
The maximum power dissipation is 150mW.
