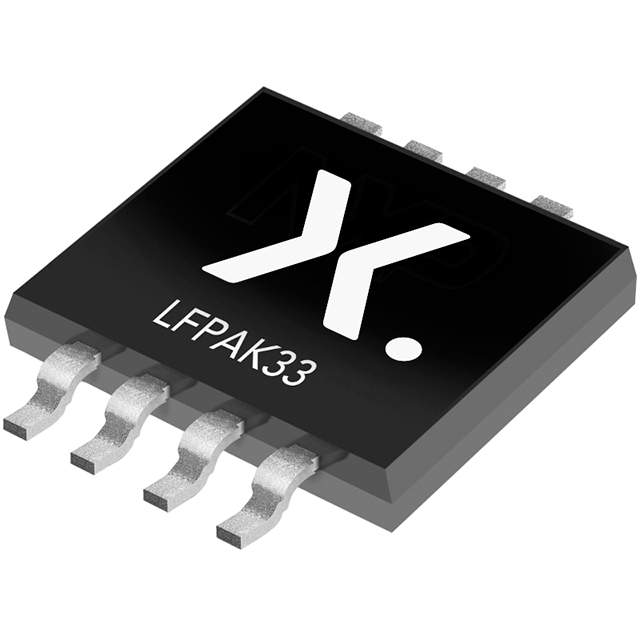

Nexperia USA Inc. PSMN040-100MSEX

Manufacturer No:
PSMN040-100MSEX
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 30A LFPAK33
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PSMN040-100MSEX is an N-channel MOSFET (Metal Oxide Semiconductor Field-Effect Transistor) manufactured by Nexperia USA Inc. This component is specifically designed for high power Power-over-Ethernet (PoE) applications. It features a standard level MOSFET in the LFPAK33 package, which is known for its compact size and high power density. The PSMN040-100MSEX is part of Nexperia’s extensive portfolio of power MOSFETs, which are used across various industries including automotive, industrial, power, computing, and consumer electronics.

Key Specifications

Parameter Value Unit
Drain to Source Voltage (Vdss) 100 V
Continuous Drain Current (Id) @ 25°C 30 A
On-State Resistance (Rds(on)) @ Vgs = 10 V 36.6 mΩ
Maximum Junction Temperature (Tj) 175 °C
Gate Threshold Voltage (Vgs(th)) 3.3 V
Total Gate Charge (Qg(tot)) @ Vgs = 10 V 30 nC
Input Capacitance (Ciss) 1470 pF
Output Capacitance (Coss) 110 pF
Package Type LFPAK33 (SOT1210)

Key Features

  • High Power Handling: Designed for high power PoE applications, capable of delivering up to 90W to each powered device (PD).
  • Low On-State Resistance: Features a low Rds(on) of 36.6 mΩ, which minimizes power losses and enhances efficiency.
  • Compact Package: The LFPAK33 package offers high power density in a compact form factor, making it ideal for space-constrained designs.
  • Thermal Management: Optimized for thermal performance, with guidelines provided in application notes for thermal design.
  • Reliability and Durability: Ensures robust performance with features like soft-start and repetitive avalanche ruggedness).

Applications

  • Power-over-Ethernet (PoE): Specifically designed for high power PoE systems, enabling the delivery of up to 90W to powered devices).
  • Automotive and Industrial Systems: Used in various automotive and industrial applications due to its high reliability and performance).
  • Power and Computing Systems: Suitable for power supplies, DC-DC converters, and other computing applications requiring high power handling and efficiency).
  • Consumer Electronics: Found in consumer electronics such as mobile devices, wearables, and other power-sensitive applications).

Q & A

  1. What is the maximum drain to source voltage (Vdss) of the PSMN040-100MSEX?

    100 V.

  2. What is the continuous drain current (Id) rating at 25°C?

    30 A.

  3. What is the on-state resistance (Rds(on)) of the PSMN040-100MSEX at Vgs = 10 V?

    36.6 mΩ.

  4. What is the maximum junction temperature (Tj) for this MOSFET?

    175 °C.

  5. What package type is used for the PSMN040-100MSEX?

    LFPAK33 (SOT1210).

  6. Is the PSMN040-100MSEX suitable for high power PoE applications?
  7. What are some of the key features of the PSMN040-100MSEX?

    High power handling, low on-state resistance, compact package, and robust thermal management.

  8. What industries can the PSMN040-100MSEX be used in?

    Automotive, industrial, power, computing, and consumer electronics.

  9. Is the PSMN040-100MSEX automotive qualified?

    No, it is not automotive qualified.

  10. Where can I find detailed specifications and application notes for the PSMN040-100MSEX?

    Detailed specifications and application notes can be found on the Nexperia website and through distributors like Mouser and Digi-Key.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:30A (Tj)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:36.6mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:30 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1470 pF @ 50 V
FET Feature:-
Power Dissipation (Max):91W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:LFPAK33
Package / Case:SOT-1210, 8-LFPAK33 (5-Lead)
0 Remaining View Similar

In Stock

$0.99
520
