PMV65ENEAR
  • Share:

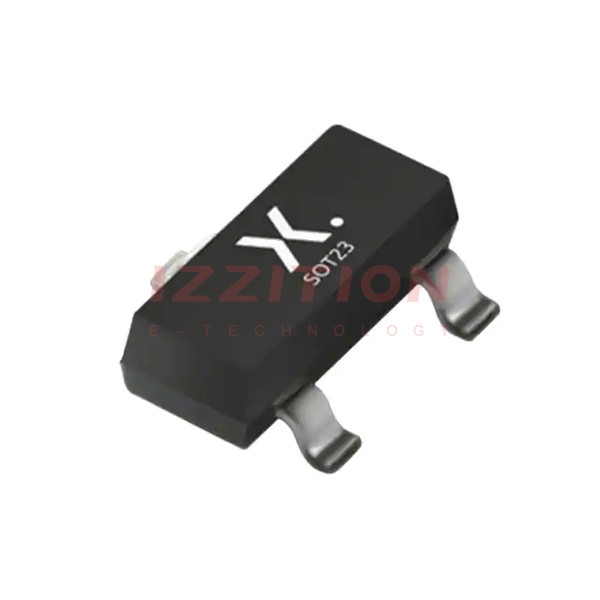

Nexperia USA Inc. PMV65ENEAR

Manufacturer No:
PMV65ENEAR
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 2.7A TO236AB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PMV65ENEAR is an N-Channel MOSFET produced by Nexperia USA Inc. This device is designed for high-performance applications, particularly in thermally demanding environments. It features a robust design suitable for automotive and other industrial uses, where reliability and durability are crucial.

Key Specifications

ParameterValue
Voltage Rating (Vds)40 V
Continuous Drain Current (Id)2.7 A (Ta), 490 mW (Ta), 6.25 W (Tc)
Operating Temperature (TJ)-55°C to 150°C
Package TypeTO-236AB, SC-59, SOT-23-3
Mounting TypeSurface Mount

Key Features

  • High voltage rating of 40 V, making it suitable for a wide range of applications.
  • Continuous drain current of 2.7 A, ensuring reliable operation in demanding conditions.
  • Operating temperature range from -55°C to 150°C, ideal for thermally challenging environments.
  • Compact surface mount packages (TO-236AB, SC-59, SOT-23-3) for efficient board design.
  • Designed for automotive and industrial applications where high reliability and durability are essential.

Applications

The PMV65ENEAR MOSFET is primarily used in automotive systems and other industrial applications where high performance and reliability are critical. These include power management systems, motor control circuits, and other high-power electronic devices that operate in harsh environments.

Q & A

  1. What is the voltage rating of the PMV65ENEAR MOSFET?
    The voltage rating of the PMV65ENEAR MOSFET is 40 V.
  2. What is the continuous drain current of the PMV65ENEAR?
    The continuous drain current is 2.7 A (Ta), with power dissipation of 490 mW (Ta) and 6.25 W (Tc).
  3. What is the operating temperature range of the PMV65ENEAR?
    The operating temperature range is from -55°C to 150°C.
  4. What package types are available for the PMV65ENEAR?
    The PMV65ENEAR is available in TO-236AB, SC-59, and SOT-23-3 packages.
  5. Is the PMV65ENEAR suitable for automotive applications?
    Yes, the PMV65ENEAR is designed for automotive and other industrial applications where high reliability and durability are essential.
  6. What is the mounting type of the PMV65ENEAR?
    The PMV65ENEAR is a surface mount device.
  7. Why is the PMV65ENEAR preferred in thermally demanding environments?
    The PMV65ENEAR is preferred in thermally demanding environments due to its high operating temperature rating and robust design.
  8. Can the PMV65ENEAR be used in home and portable applications?
    While it can be used in various applications, the PMV65ENEAR is specifically designed for more hostile environments than those typically found in home and portable applications.
  9. What are some common applications of the PMV65ENEAR?
    Common applications include power management systems, motor control circuits, and other high-power electronic devices.
  10. Where can I purchase the PMV65ENEAR?
    The PMV65ENEAR can be purchased from various electronic component distributors such as Digi-Key, Mouser Electronics, and WT Electronics.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:2.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:75mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:6 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:160 pF @ 20 V
FET Feature:-
Power Dissipation (Max):490mW (Ta), 6.25W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:TO-236AB
Package / Case:TO-236-3, SC-59, SOT-23-3
0 Remaining View Similar

In Stock

$0.53
1,486

Please send RFQ , we will respond immediately.

Similar Products

Part Number PMV65ENEAR PMV65UNEAR PMV15ENEAR PMV25ENEAR PMV55ENEAR PMV60ENEAR
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active Active Active Active
FET Type N-Channel N-Channel N-Channel N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V 20 V 30 V 30 V 60 V 40 V
Current - Continuous Drain (Id) @ 25°C 2.7A (Ta) 2.8A (Ta) 6.2A (Ta) 5.5A (Ta) 3.1A (Ta) 3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 1.8V, 4.5V 4.5V, 10V 4.5V, 10V 4.5V, 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 75mOhm @ 2.7A, 10V 73mOhm @ 2.8A, 4.5V 20mOhm @ 5.8A, 10V 24mOhm @ 5.5A, 10V 60mOhm @ 3.1A, 10V 75mOhm @ 3A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA 1V @ 250µA 2.5V @ 250µA 2.5V @ 250µA 2.7V @ 250µA 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 6 nC @ 10 V 6 nC @ 4.5 V 14 nC @ 10 V 18 nC @ 10 V 19 nC @ 10 V 5 nC @ 10 V
Vgs (Max) ±20V ±8V ±20V ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 160 pF @ 20 V 291 pF @ 10 V 440 pF @ 15 V 597 pF @ 15 V 646 pF @ 30 V 180 pF @ 20 V
FET Feature - - - - - -
Power Dissipation (Max) 490mW (Ta), 6.25W (Tc) 940mW (Ta) 700mW (Ta), 8.3W (Tc) 460mW (Ta), 6.94W (Tc) 478mW (Ta), 8.36W (Tc) 615mW (Ta), 7.5W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package TO-236AB TO-236AB TO-236AB TO-236AB TO-236AB TO-236AB
Package / Case TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3
