Overview
The PMPB15XP,115 is a high-performance P-channel Trench MOSFET manufactured by Nexperia USA Inc. This device is designed to meet the demands of various power management and switching applications. It features a compact 6-UDFN Exposed Pad package, making it ideal for space-constrained designs. The MOSFET is built using trench technology, which enhances its electrical performance and reliability.
Key Specifications
| Parameter | Value |
|---|---|
| Type | P-Channel Trench MOSFET |
| Vds - Drain-Source Breakdown Voltage | 12 V |
| Id - Continuous Drain Current | 8.2 A (at 25°C) |
| Rds On - Drain-Source On Resistance | 19 mΩ (at 8.2 A, 4.5 V) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8 V to 4.5 V |
| Package | 6-UDFN Exposed Pad (SOT1220) |
| Number of Pins | 6 |
| Transistor Element Material | Silicon |
| Power Dissipation (Max) | 1.7 W (Ta), 12.5 W (Tc) |
| Turn On Delay Time | 18 ns |
| ESD Protection | 1.5 kV (human body model) |
Key Features
- Trench MOSFET technology for enhanced electrical performance and reliability.
- Compact 6-UDFN Exposed Pad package (SOT1220) for space-constrained designs.
- High continuous drain current of 8.2 A at 25°C.
- Low on-resistance of 19 mΩ at 8.2 A, 4.5 V.
- 1.5 kV ESD protection (human body model).

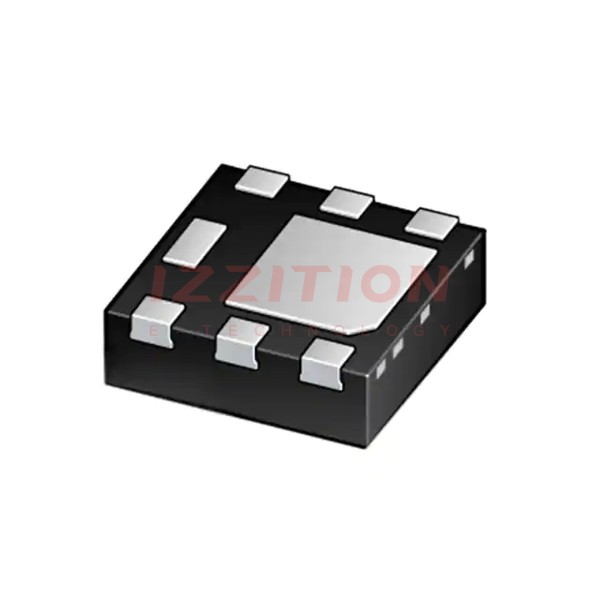

- Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm.
Applications
- Power management and switching in various electronic devices.
- DC-DC converters and power supplies.
- Motor control and drive systems.
- High-power audio amplifiers.
- Automotive and industrial control systems.
Q & A
- What is the type of the PMPB15XP,115 MOSFET?
The PMPB15XP,115 is a P-channel Trench MOSFET.
- What is the maximum drain-source breakdown voltage of the PMPB15XP,115?
The maximum drain-source breakdown voltage is 12 V.
- What is the continuous drain current rating of the PMPB15XP,115 at 25°C?
The continuous drain current rating is 8.2 A at 25°C.
- What is the on-resistance of the PMPB15XP,115?
The on-resistance is 19 mΩ at 8.2 A, 4.5 V.
- What type of package does the PMPB15XP,115 come in?
The PMPB15XP,115 comes in a 6-UDFN Exposed Pad package (SOT1220).
- What is the ESD protection rating of the PMPB15XP,115?
The ESD protection rating is 1.5 kV (human body model).
- What are some common applications of the PMPB15XP,115?
Common applications include power management and switching, DC-DC converters, motor control, high-power audio amplifiers, and automotive and industrial control systems.
- What is the power dissipation rating of the PMPB15XP,115?
The power dissipation rating is 1.7 W (Ta) and 12.5 W (Tc).
- What is the turn-on delay time of the PMPB15XP,115?
The turn-on delay time is 18 ns.
- Where can I purchase the PMPB15XP,115?
The PMPB15XP,115 can be purchased from various distributors such as Mouser, Utmel, and X-ON Electronics, among others.
