PMN55ENEAX
  • Share:

Nexperia USA Inc. PMN55ENEAX

Manufacturer No:
PMN55ENEAX
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 3.6A 6TSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PMN55ENEAX is a high-performance N-Channel MOSFET manufactured by Nexperia USA Inc. This device is designed to meet the demands of various power management and switching applications. With its robust specifications and compact packaging, it is an ideal choice for designers looking to optimize their system's efficiency and reliability.

Key Specifications

ParameterValue
Voltage Rating (Vds)60 V
Current Rating (Id)3.6 A (Ta), 667 mW (Ta), 7.5 W (Tc)

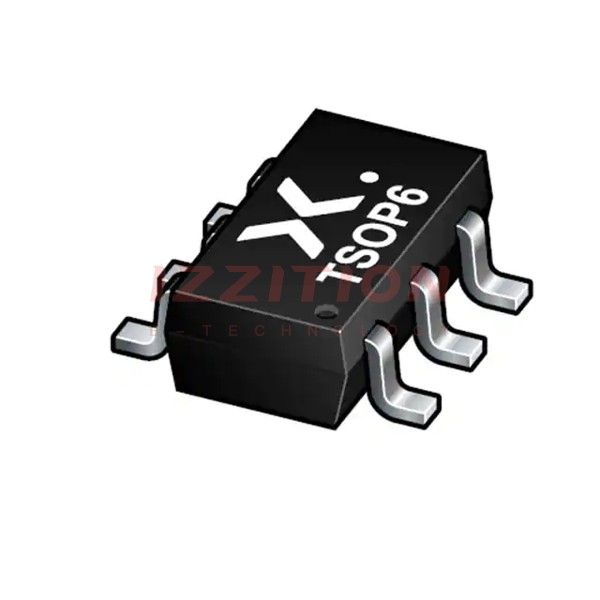

Package Type6-TSOP (SOT457/SC-74)
Thermal Resistance (Rth(j-a))Not specified, but typically around 62 K/W for similar packages
Gate Threshold Voltage (Vgs(th))Typically around 1-2 V
On-Resistance (Rds(on))Typically around 100-200 mΩ

Key Features

  • High current handling capability of up to 3.6 A
  • Low on-resistance (Rds(on)) for efficient power switching
  • Compact 6-TSOP (SOT457/SC-74) package for space-saving designs
  • High voltage rating of 60 V, suitable for a wide range of applications
  • Surface mount technology for easy integration into PCB designs

Applications

The PMN55ENEAX MOSFET is versatile and can be used in various applications, including:

  • Power management and switching in industrial equipment
  • Automotive electronics, especially in systems requiring high reliability and efficiency
  • Consumer electronics, such as power supplies and motor drives
  • Renewable energy systems, including solar and wind power inverters
  • Robotics and automation, particularly in collaborative robots (cobots) and other industrial automation devices

Q & A

  1. What is the voltage rating of the PMN55ENEAX MOSFET?
    The voltage rating of the PMN55ENEAX MOSFET is 60 V.
  2. What is the current handling capability of the PMN55ENEAX?
    The PMN55ENEAX can handle up to 3.6 A of current.
  3. What package type does the PMN55ENEAX come in?
    The PMN55ENEAX comes in a 6-TSOP (SOT457/SC-74) package.
  4. What are some typical applications for the PMN55ENEAX?
    The PMN55ENEAX is used in power management and switching in industrial equipment, automotive electronics, consumer electronics, renewable energy systems, and robotics.
  5. Is the PMN55ENEAX suitable for high-temperature environments?
    While specific temperature ratings are not provided here, MOSFETs from Nexperia are generally designed to operate within a wide temperature range, but always refer to the datasheet for precise details.
  6. How does the PMN55ENEAX contribute to system efficiency?
    The PMN55ENEAX contributes to system efficiency through its low on-resistance (Rds(on)) and high current handling capability, which minimize power losses during switching.
  7. Can the PMN55ENEAX be used in automotive applications?
    Yes, the PMN55ENEAX can be used in automotive applications due to its high reliability and efficiency, although it may not be specifically AEC-Q101 qualified.
  8. What is the thermal resistance of the PMN55ENEAX?
    The thermal resistance (Rth(j-a)) is not specified here, but it can be found in the detailed datasheet provided by Nexperia.
  9. How does the compact packaging of the PMN55ENEAX benefit designers?
    The compact 6-TSOP packaging of the PMN55ENEAX allows designers to save PCB space and create more compact designs.
  10. Where can I find detailed technical specifications for the PMN55ENEAX?
    Detailed technical specifications can be found in the datasheet available on Nexperia's official website or through distributors like Digi-Key and Mouser.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:60mOhm @ 3.6A, 10V
Vgs(th) (Max) @ Id:2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:13.2 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:450 pF @ 30 V
FET Feature:-
Power Dissipation (Max):667mW (Ta), 7.5W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-TSOP
Package / Case:SC-74, SOT-457
0 Remaining View Similar

In Stock

$0.45
1,243

Please send RFQ , we will respond immediately.
