BUK9Y3R0-40E,115
  • Share:

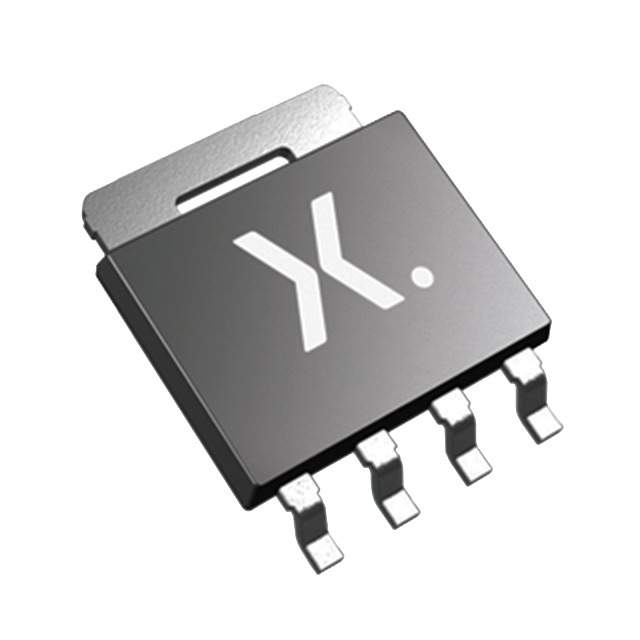

Nexperia USA Inc. BUK9Y3R0-40E,115

Manufacturer No:
BUK9Y3R0-40E,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 100A LFPAK56
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK9Y3R0-40E,115 is a high-performance N-channel MOSFET produced by Nexperia USA Inc. This device is designed and qualified to the AEC-Q101 standard, making it suitable for high-performance automotive applications. It utilizes TrenchMOS technology and is packaged in the LFPAK56 (Power-SO8) format, which is optimized for thermal performance and reliability in demanding environments.

Key Specifications

Parameter Value Unit
Type Number BUK9Y3R0-40E -
Package LFPAK56; Power-SO8 (SOT669) -
Channel Type N-channel -
VDS (Max) 40 V
RDSon (Max) @ VGS = 10 V 2.5 mΩ
RDSon (Max) @ VGS = 5 V 3.0 mΩ
Tj (Max) 175 °C
ID (Max) 100 A
QGD (Typ) 10.7 nC
Ptot (Max) 194 W
VGSth (Typ) 1.7 V
Automotive Qualified Yes (AEC-Q101) -

Key Features

  • TrenchMOS Technology: Utilizes advanced TrenchMOS technology for high performance and reliability.
  • Logic Level Gate: Features a true logic level gate with VGS(th) rating of greater than 0.5 V at 175 °C.
  • High Thermal Performance: Suitable for thermally demanding environments with a maximum junction temperature of 175 °C.
  • Repetitive Avalanche Rated: Designed to withstand repetitive avalanche conditions, enhancing its durability.
  • Low On-Resistance: Offers low on-resistance (RDSon) of 2.5 mΩ at VGS = 10 V and 3.0 mΩ at VGS = 5 V.

Applications

  • Automotive Systems: Ideal for 12 V automotive systems, including motors, lighting, and solenoid control.
  • Start-Stop Micro-Hybrid Applications: Suitable for start-stop micro-hybrid systems due to its high performance and reliability.
  • Transmission Control: Used in transmission control systems where high power and voltage handling are required.
  • Ultra High Performance Power Switching: Applicable in various high-power switching applications requiring low on-resistance and high thermal performance.

Q & A

  1. What is the maximum drain-to-source voltage (VDS) of the BUK9Y3R0-40E,115 MOSFET?

    The maximum drain-to-source voltage (VDS) is 40 V.

  2. What is the package type of the BUK9Y3R0-40E,115 MOSFET?

    The package type is LFPAK56 (Power-SO8) or SOT669.

  3. What is the maximum junction temperature (Tj) of the BUK9Y3R0-40E,115 MOSFET?

    The maximum junction temperature (Tj) is 175 °C.

  4. Is the BUK9Y3R0-40E,115 MOSFET automotive qualified?

    Yes, it is qualified to the AEC-Q101 standard for automotive applications.

  5. What is the typical gate threshold voltage (VGSth) of the BUK9Y3R0-40E,115 MOSFET?

    The typical gate threshold voltage (VGSth) is 1.7 V.

  6. What are the typical applications of the BUK9Y3R0-40E,115 MOSFET?

    Typical applications include 12 V automotive systems, start-stop micro-hybrid systems, transmission control, and ultra high performance power switching.

  7. What is the maximum continuous drain current (ID) of the BUK9Y3R0-40E,115 MOSFET?

    The maximum continuous drain current (ID) is 100 A.

  8. What is the on-resistance (RDSon) of the BUK9Y3R0-40E,115 MOSFET at VGS = 5 V?

    The on-resistance (RDSon) at VGS = 5 V is 3.0 mΩ.

  9. Is the BUK9Y3R0-40E,115 MOSFET repetitive avalanche rated?

    Yes, it is designed to be repetitive avalanche rated, enhancing its durability.

  10. What is the total power dissipation (Ptot) of the BUK9Y3R0-40E,115 MOSFET?

    The total power dissipation (Ptot) is 194 W.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):5V
Rds On (Max) @ Id, Vgs:2.5mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:2.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:35.5 nC @ 5 V
Vgs (Max):±10V
Input Capacitance (Ciss) (Max) @ Vds:5962 pF @ 25 V
FET Feature:-
Power Dissipation (Max):194W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:LFPAK56, Power-SO8
Package / Case:SC-100, SOT-669
0 Remaining View Similar

In Stock

$1.61
177

Please send RFQ , we will respond immediately.

Similar Products

Part Number BUK9Y3R0-40E,115 BUK9Y3R5-40E,115
Manufacturer Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V 40 V
Current - Continuous Drain (Id) @ 25°C 100A (Tc) 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 5V 5V
Rds On (Max) @ Id, Vgs 2.5mOhm @ 25A, 10V 3.6mOhm @ 25A, 10V
Vgs(th) (Max) @ Id 2.1V @ 1mA 2.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 35.5 nC @ 5 V 30.2 nC @ 5 V
Vgs (Max) ±10V ±10V
Input Capacitance (Ciss) (Max) @ Vds 5962 pF @ 25 V 5137 pF @ 25 V
FET Feature - -
Power Dissipation (Max) 194W (Tc) 167W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package LFPAK56, Power-SO8 LFPAK56, Power-SO8
Package / Case SC-100, SOT-669 SC-100, SOT-669
