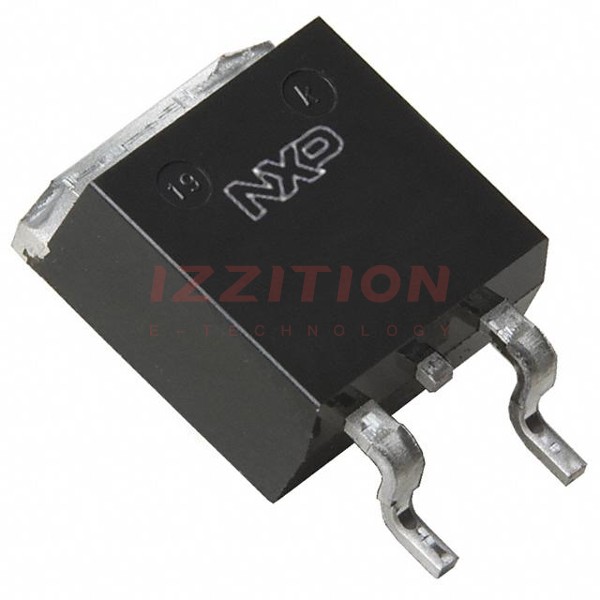

Nexperia USA Inc. BUK764R0-55B,118

Manufacturer No:
BUK764R0-55B,118
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 55V 75A D2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK764R0-55B,118 is a high-performance N-Channel TrenchMOS™ MOSFET manufactured by Nexperia USA Inc. This device is designed to offer superior efficiency and reliability in a variety of power management applications. It features a surface-mount TO-263-3 package, making it suitable for space-constrained designs while maintaining high power handling capabilities.

Key Specifications

ParameterValue
VDS (Max)55 V
ID (Max)75 A
RDS(on) (Max) @ ID, VGS4 mΩ @ 25 A, 10 V
VGS(th)1 - 4 V @ 1 mA
PD (Max)300 W
PackageTO-263-3 (D2PAK)
RoHS ComplianceYes

Key Features

  • High current handling capability of up to 75 A.
  • Low on-resistance (RDS(on)) of 4 mΩ at 25 A and 10 VGS.
  • Maximum drain-source voltage (VDS) of 55 V.
  • High power dissipation of up to 300 W.
  • Surface-mount TO-263-3 (D2PAK) package for compact designs.
  • RoHS compliant, ensuring environmental sustainability.

Applications

The BUK764R0-55B,118 MOSFET is suitable for a wide range of applications, including:

  • Power management in industrial and automotive systems.
  • Uninterruptible Power Supplies (UPS) and motor drives.
  • Electric vehicles and e-mobility solutions.
  • Collaborative robots (cobots) and other industrial equipment.
  • Energy-efficient power switching in renewable energy systems.

Q & A

  1. What is the maximum drain-source voltage (VDS) of the BUK764R0-55B,118 MOSFET?
    The maximum drain-source voltage (VDS) is 55 V.
  2. What is the maximum current (ID) that the BUK764R0-55B,118 can handle?
    The maximum current (ID) is 75 A.
  3. What is the on-resistance (RDS(on)) of the BUK764R0-55B,118?
    The on-resistance (RDS(on)) is 4 mΩ at 25 A and 10 VGS.
  4. In what package is the BUK764R0-55B,118 available?
    The BUK764R0-55B,118 is available in a TO-263-3 (D2PAK) package.
  5. Is the BUK764R0-55B,118 RoHS compliant?
    Yes, the BUK764R0-55B,118 is RoHS compliant.
  6. What are some typical applications for the BUK764R0-55B,118 MOSFET?
    Typical applications include power management in industrial and automotive systems, UPS and motor drives, electric vehicles, cobots, and renewable energy systems.
  7. What is the maximum power dissipation (PD) of the BUK764R0-55B,118?
    The maximum power dissipation (PD) is 300 W.
  8. What is the threshold voltage (VGS(th)) range for the BUK764R0-55B,118?
    The threshold voltage (VGS(th)) range is 1 - 4 V @ 1 mA.
  9. Why is the TO-263-3 (D2PAK) package beneficial?
    The TO-263-3 (D2PAK) package is beneficial because it allows for compact designs while maintaining high power handling capabilities.
  10. Where can I find detailed specifications and datasheets for the BUK764R0-55B,118?
    Detailed specifications and datasheets can be found on the Nexperia website, as well as on distributor websites such as Mouser and LCSC.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):55 V
Current - Continuous Drain (Id) @ 25°C:75A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:86 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:6776 pF @ 25 V
FET Feature:-
Power Dissipation (Max):300W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D2PAK
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
