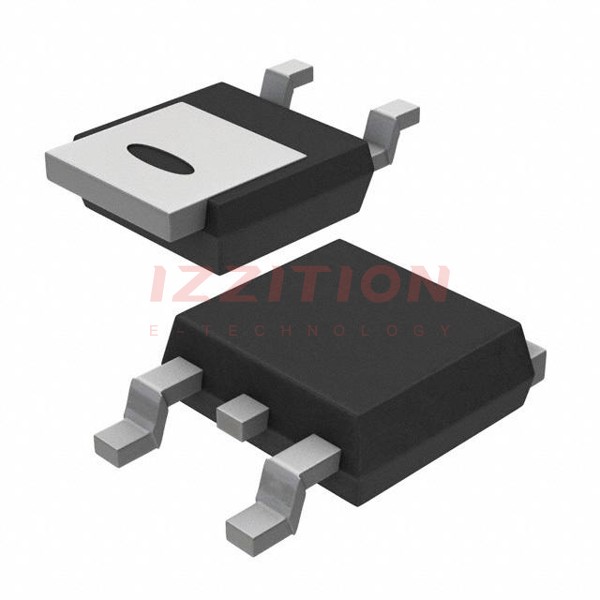

Nexperia USA Inc. BUK6226-75C,118

Manufacturer No:
BUK6226-75C,118
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 75V 33A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK6226-75C,118 is a power MOSFET produced by Nexperia USA Inc. This component is part of Nexperia's extensive range of power MOSFETs designed for high-performance applications. However, it is important to note that this specific part is currently obsolete and no longer manufactured.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)75 V
VGS (Gate-Source Voltage)±20 V
ID (Continuous Drain Current)22 A
RDS(on) (On-State Drain-Source Resistance)12 mΩ
Ptot (Total Power Dissipation)150 W
TJ (Junction Temperature)-55 to 175 °C
PackageTO-263 (D2PAK)

Key Features

  • High current handling capability of up to 22 A.
  • Low on-state resistance (RDS(on)) of 12 mΩ.
  • High voltage rating of 75 V.
  • Adequate thermal performance with a total power dissipation of 150 W.
  • Wide operating temperature range from -55 to 175 °C.
  • TO-263 (D2PAK) package for efficient heat dissipation and ease of mounting.

Applications

The BUK6226-75C,118 power MOSFET is suitable for various high-power applications, including but not limited to:

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • High-frequency switching circuits.
  • Automotive and industrial power systems.

Q & A

  1. What is the maximum drain-source voltage of the BUK6226-75C,118?
    The maximum drain-source voltage (VDS) is 75 V.
  2. What is the continuous drain current rating of this MOSFET?
    The continuous drain current (ID) is 22 A.
  3. What is the on-state drain-source resistance (RDS(on)) of this component?
    The on-state drain-source resistance (RDS(on)) is 12 mΩ.
  4. What is the total power dissipation (Ptot) of the BUK6226-75C,118?
    The total power dissipation (Ptot) is 150 W.
  5. What is the operating temperature range of this MOSFET?
    The operating temperature range is from -55 to 175 °C.
  6. In what package is the BUK6226-75C,118 available?
    The component is available in the TO-263 (D2PAK) package.
  7. Is the BUK6226-75C,118 still in production?
    No, the BUK6226-75C,118 is currently obsolete and no longer manufactured.
  8. Where can I find substitutes for the BUK6226-75C,118?
    You can find substitutes on the Digi-Key or Mouser Electronics websites by viewing the product page for this part.
  9. What are some common applications for this power MOSFET?
    Common applications include power supplies, DC-DC converters, motor control systems, high-frequency switching circuits, and automotive and industrial power systems.
  10. What is the significance of the '118' suffix in the part number?
    The suffix '118' typically indicates the packaging type and other specific details of the part, as defined by Nexperia's part numbering system.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):75 V
Current - Continuous Drain (Id) @ 25°C:33A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:29mOhm @ 12A, 10V
Vgs(th) (Max) @ Id:2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:34 nC @ 10 V
Vgs (Max):±16V
Input Capacitance (Ciss) (Max) @ Vds:2000 pF @ 25 V
FET Feature:-
Power Dissipation (Max):80W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

-
103

Please send RFQ , we will respond immediately.

Similar Products

Part Number BUK6226-75C,118 BUK6246-75C,118
Manufacturer Nexperia USA Inc. Nexperia USA Inc.
Product Status Obsolete Obsolete
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 75 V 75 V
Current - Continuous Drain (Id) @ 25°C 33A (Tc) 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 29mOhm @ 12A, 10V 46mOhm @ 10A, 10V
Vgs(th) (Max) @ Id 2.8V @ 1mA 2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 34 nC @ 10 V 21.4 nC @ 10 V
Vgs (Max) ±16V ±16V
Input Capacitance (Ciss) (Max) @ Vds 2000 pF @ 25 V 1280 pF @ 25 V
FET Feature - -
Power Dissipation (Max) 80W (Tc) 60W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package DPAK DPAK
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63 TO-252-3, DPak (2 Leads + Tab), SC-63
