BSN20,215
  • Share:

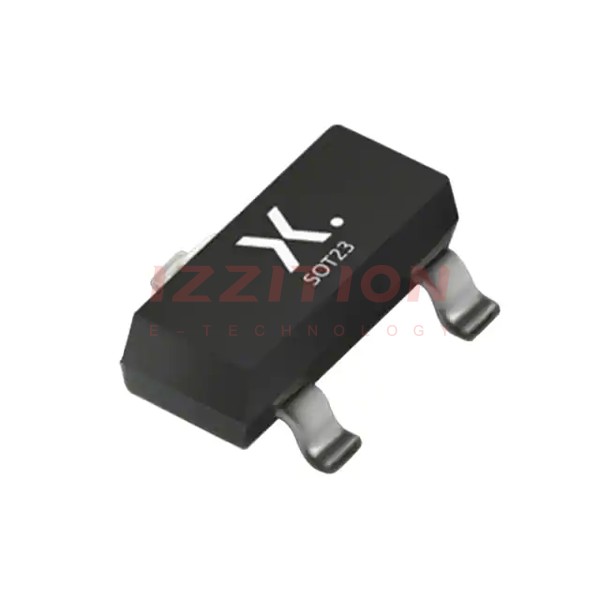

Nexperia USA Inc. BSN20,215

Manufacturer No:
BSN20,215
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 50V 173MA TO236AB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BSN20,215 is a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) produced by Nexperia USA Inc. Although this product is currently obsolete and no longer manufactured, it was widely used in various electronic applications due to its robust specifications and reliable performance. Here is an overview of its key characteristics and uses.

Key Specifications

ParameterValue
TechnologySilicon (Si)
Drain-Source Breakdown Voltage (Vds)50 V
Current Rating (Id)173 mA
Channel TypeN-Channel
Package TypeSOT-23 (TO236AB)
Packaging OptionsReel, Cut Tape, MouseReel

Key Features

  • N-Channel MOSFET with a drain-source breakdown voltage of 50 V.
  • Current rating of 173 mA, suitable for low to moderate current applications.
  • Compact SOT-23 (TO236AB) package, ideal for space-constrained designs.
  • Available in various packaging options including reel, cut tape, and MouseReel.

Applications

The BSN20,215 MOSFET is suitable for a variety of applications, including but not limited to:

  • Low-power switching circuits.
  • General-purpose amplification.
  • Voltage regulation and power management.
  • Automotive and industrial control systems.

Q & A

  1. What is the drain-source breakdown voltage of the BSN20,215 MOSFET?
    The drain-source breakdown voltage is 50 V.
  2. What is the current rating of the BSN20,215?
    The current rating is 173 mA.
  3. What is the channel type of the BSN20,215 MOSFET?
    The channel type is N-Channel.
  4. In what package is the BSN20,215 available?
    The BSN20,215 is available in the SOT-23 (TO236AB) package.
  5. Is the BSN20,215 still in production?
    No, the BSN20,215 is obsolete and no longer manufactured.
  6. What are some common applications for the BSN20,215 MOSFET?
    Common applications include low-power switching circuits, general-purpose amplification, voltage regulation, and automotive and industrial control systems.
  7. What packaging options are available for the BSN20,215?
    Packaging options include reel, cut tape, and MouseReel.
  8. Where can I find substitutes for the BSN20,215?
    You can find substitutes on websites like Digi-Key, Mouser, or by consulting the manufacturer's recommendations.
  9. What is the technology used in the BSN20,215 MOSFET?
    The technology used is Silicon (Si).
  10. Why is the BSN20,215 no longer manufactured?
    The specific reasons for discontinuation are not provided, but it is common for components to be phased out due to technological advancements or market demand.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):50 V
Current - Continuous Drain (Id) @ 25°C:173mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):5V, 10V
Rds On (Max) @ Id, Vgs:15Ohm @ 100mA, 10V
Vgs(th) (Max) @ Id:1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:25 pF @ 10 V
FET Feature:-
Power Dissipation (Max):830mW (Tc)
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:TO-236AB
Package / Case:TO-236-3, SC-59, SOT-23-3
0 Remaining View Similar

In Stock

-
167

Please send RFQ , we will respond immediately.

Same Series
BSN20,215
BSN20,215
MOSFET N-CH 50V 173MA TO236AB

Similar Products

Part Number BSN20,215 BSN20,235
Manufacturer Nexperia USA Inc. Nexperia USA Inc.
Product Status Obsolete Obsolete
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 50 V 50 V
Current - Continuous Drain (Id) @ 25°C 173mA (Ta) 173mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 5V, 10V 5V, 10V
Rds On (Max) @ Id, Vgs 15Ohm @ 100mA, 10V 15Ohm @ 100mA, 10V
Vgs(th) (Max) @ Id 1V @ 1mA 1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs - -
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 25 pF @ 10 V 25 pF @ 10 V
FET Feature - -
Power Dissipation (Max) 830mW (Tc) 830mW (Tc)
Operating Temperature -65°C ~ 150°C (TJ) -65°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package TO-236AB TO-236AB
Package / Case TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3
