Overview

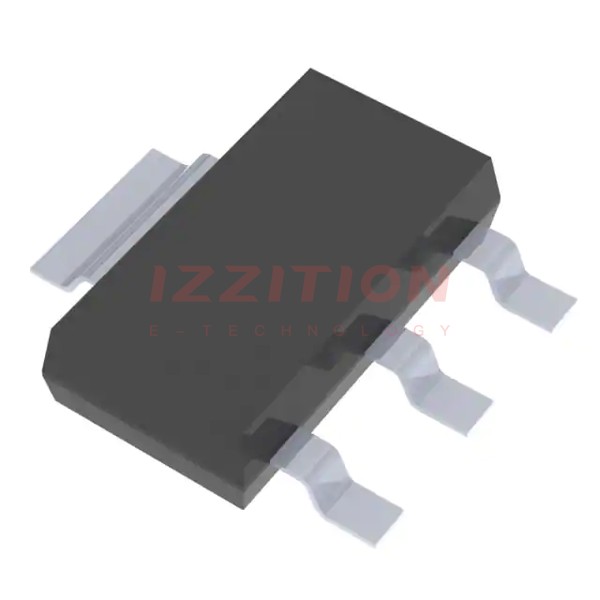

The BCP6925TC is a bipolar transistor produced by Diodes Incorporated, although it is currently obsolete and no longer manufactured. This component was part of the general-purpose transistor family, designed for various small-signal and medium-power applications. Despite its discontinuation, understanding its specifications and features can help in selecting suitable substitutes.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Current - Collector (Ic) (Max) | 1 | A |
| Voltage - Collector-Emitter (Vceo) | 40 | V |
| Voltage - Collector-Base (Vcbo) | 60 | V |
| Voltage - Emitter-Base (Vebo) | 5 | V |
| Power Dissipation (Pd) | 1.25 | W |
| Operating Temperature Range | -55 to 150 | °C |
Key Features
The BCP6925TC bipolar transistor was known for its general-purpose capabilities, making it suitable for a wide range of applications. Key features include:
- High collector current up to 1 A, making it suitable for medium-power applications.
- High voltage ratings, including Vceo of 40 V and Vcbo of 60 V, ensuring robust performance in various circuits.
- A moderate power dissipation of 1.25 W, allowing for reliable operation in diverse environments.
- A wide operating temperature range from -55°C to 150°C, enhancing its versatility in different thermal conditions.
Applications
The BCP6925TC, although discontinued, was typically used in various small-signal and medium-power applications, including:
- Amplifier circuits requiring moderate current and voltage handling.
- Switching circuits where high collector current and voltage ratings are necessary.
- Automotive and industrial control systems that demand robust and reliable performance.
- General-purpose electronic devices requiring a versatile bipolar transistor.
Q & A
- What is the BCP6925TC?
The BCP6925TC is a bipolar transistor produced by Diodes Incorporated, designed for general-purpose and medium-power applications.
- Is the BCP6925TC still in production?
No, the BCP6925TC is obsolete and no longer manufactured by Diodes Incorporated.
- What are the key specifications of the BCP6925TC?
Key specifications include a maximum collector current of 1 A, Vceo of 40 V, Vcbo of 60 V, and a power dissipation of 1.25 W.
- What are some typical applications for the BCP6925TC?
Typical applications include amplifier circuits, switching circuits, automotive and industrial control systems, and general-purpose electronic devices.
- What is the operating temperature range of the BCP6925TC?
The operating temperature range is from -55°C to 150°C.
- Can I still purchase the BCP6925TC?
No, since it is obsolete, it is no longer available for purchase. However, you can look for similar substitutes.
- What are some substitutes for the BCP6925TC?
Substitutes such as the BCP69,115 from Nexperia USA Inc. can be considered.
- Why was the BCP6925TC discontinued?
The specific reasons for discontinuation are not provided, but it is common for components to be discontinued due to market demand, technological advancements, or manufacturing considerations.
- How do I find more detailed specifications for the BCP6925TC?
You can refer to the datasheet or product documentation available from Diodes Incorporated or authorized distributors.
- Can I use the BCP6925TC in high-frequency applications?
The BCP6925TC is generally suited for medium-power and small-signal applications but may not be optimal for high-frequency applications. Always check the datasheet for specific frequency-related characteristics.
