Overview

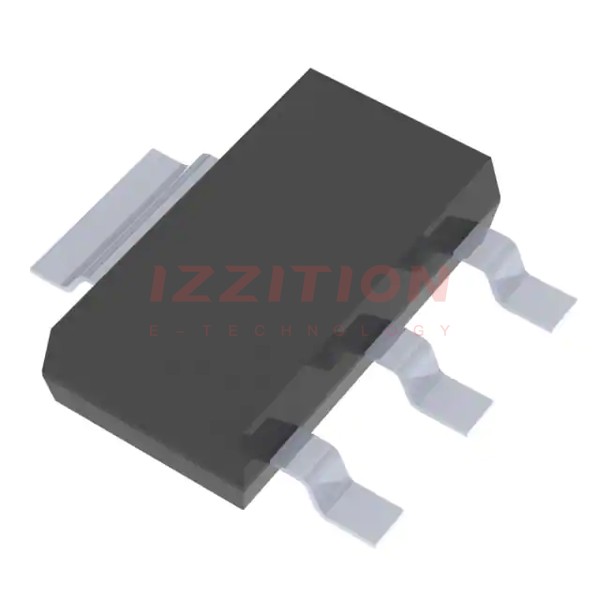

The BCP6925TA is a PNP silicon planar medium power transistor manufactured by Diodes Incorporated. This transistor is designed for general amplifier (AF) applications and is known for its high collector current, high current gain, and low collector-emitter saturation voltage. The BCP6925TA is part of the BCP69 series and is qualified according to AEC Q101, making it suitable for automotive and other demanding environments.
Key Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Collector-Emitter Voltage | VCEO | 20 | V |
| Collector-Base Voltage | VCBO | 25 | V |
| Emitter-Base Voltage | VEBO | 5 | V |
| Collector Current | IC | 1 | A |
| Peak Collector Current (tp ≤ 10 ms) | ICM | 2 | A |
| Base Current | IB | 100 | mA |
| Peak Base Current | IBM | 200 | mA |
| Total Power Dissipation (TS ≤ 114 °C) | Ptot | 3 | W |
| Junction Temperature | Tj | 150 | °C |
| Storage Temperature | Tstg | -65 to 150 | °C |
| Transition Frequency | fT | 100 | MHz |
Key Features
- High Collector Current: The BCP6925TA can handle a collector current of up to 1 A, making it suitable for applications requiring significant current handling.
- High Current Gain: With a DC current gain (hFE) ranging from 100 to 375, this transistor offers high amplification capabilities.
- Low Collector-Emitter Saturation Voltage: The transistor features a low VCEsat of 0.5 V, which is beneficial for reducing power losses in switching applications.
- Pb-free (RoHS Compliant) Package: The SOT223 package is lead-free and compliant with RoHS regulations, making it environmentally friendly.
- AEC Q101 Qualified: This qualification ensures the transistor meets the stringent requirements for automotive and other harsh environments.
Applications
The BCP6925TA is versatile and can be used in various applications, including:
- General Amplifier (AF) Applications: Suitable for amplifying signals in audio and other general-purpose amplifier circuits.
- Automotive Systems: Qualified according to AEC Q101, making it suitable for use in automotive electronics.
- Power Switching: The low collector-emitter saturation voltage and high current gain make it suitable for power switching applications.
- Industrial Control Systems: Can be used in industrial control systems where high reliability and robustness are required.
Q & A
- What is the maximum collector-emitter voltage of the BCP6925TA?
The maximum collector-emitter voltage (VCEO) is 20 V.
- What is the maximum collector current of the BCP6925TA?
The maximum collector current (IC) is 1 A.
- What is the typical DC current gain (hFE) of the BCP6925TA?
The typical DC current gain (hFE) ranges from 100 to 375).
- What is the collector-emitter saturation voltage (VCEsat) of the BCP6925TA?
The collector-emitter saturation voltage (VCEsat) is typically 0.5 V).
- Is the BCP6925TA RoHS compliant?
- What is the operating temperature range of the BCP6925TA?
The operating temperature range is from -55°C to 150°C (TJ)).
- What is the transition frequency (fT) of the BCP6925TA?
The transition frequency (fT) is 100 MHz).
- Is the BCP6925TA qualified for automotive applications?
- What is the package type of the BCP6925TA?
The package type is SOT223).
- What are the complementary types of the BCP6925TA?
The complementary type for the BCP6925TA (PNP) is the BCP68 (NPN)).
