STL26N60DM6
  • Share:

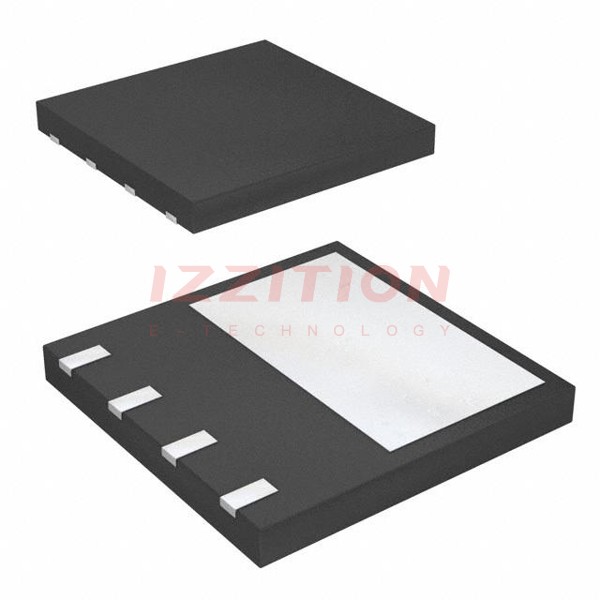

STMicroelectronics STL26N60DM6

Manufacturer No:
STL26N60DM6
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 600V 15A PWRFLAT HV
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STL26N60DM6 is a high-voltage N-channel Power MOSFET from STMicroelectronics, part of the MDmesh DM6 fast-recovery diode series. This device is designed to offer improved performance compared to the previous MDmesh fast generation. It features a robust and efficient design, making it suitable for a variety of high-power applications.

Key Specifications

Parameter Value
VDS (Drain-Source Voltage) 600 V
ID (Drain Current) 15 A
RDS(on) (On-Resistance) 175 mΩ (typ.)
Package 5-Pin PowerFLAT 8 x 8 HV
Series MDmesh DM6

Key Features

  • High voltage rating of 600 V, making it suitable for high-power applications.
  • Low on-resistance (RDS(on)) of 175 mΩ (typ.), reducing power losses and improving efficiency.
  • Fast recovery diode, enhancing switching performance and reducing switching losses.
  • Robust and reliable design, ensuring long-term operation in demanding environments.
  • Compact 5-Pin PowerFLAT 8 x 8 HV package, optimizing board space and thermal management.

Applications

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Industrial automation and control systems.
  • Renewable energy systems, such as solar and wind power.
  • High-power audio amplifiers and other high-current applications.

Q & A

  1. What is the maximum drain-source voltage of the STL26N60DM6?

    The maximum drain-source voltage (VDS) is 600 V.

  2. What is the typical on-resistance (RDS(on)) of the STL26N60DM6?

    The typical on-resistance (RDS(on)) is 175 mΩ.

  3. What is the maximum drain current (ID) of the STL26N60DM6?

    The maximum drain current (ID) is 15 A.

  4. In which package is the STL26N60DM6 available?

    The STL26N60DM6 is available in a 5-Pin PowerFLAT 8 x 8 HV package.

  5. What series does the STL26N60DM6 belong to?

    The STL26N60DM6 belongs to the MDmesh DM6 series.

  6. What are some common applications for the STL26N60DM6?

    Common applications include power supplies, motor control systems, industrial automation, renewable energy systems, and high-power audio amplifiers.

  7. Why is the STL26N60DM6 considered efficient for high-power applications?

    The STL26N60DM6 is considered efficient due to its low on-resistance and fast recovery diode, which reduce power losses and enhance switching performance.

  8. How does the STL26N60DM6 improve thermal management?

    The compact PowerFLAT 8 x 8 HV package helps in optimizing board space and thermal management.

  9. Is the STL26N60DM6 suitable for automotive applications?

    While it is not specifically marked as automotive-grade, it can be used in various high-power applications. For automotive-specific needs, other models from STMicroelectronics might be more suitable.

  10. Where can I find detailed specifications and datasheets for the STL26N60DM6?

    Detailed specifications and datasheets can be found on the official STMicroelectronics website or through authorized distributors like RS Components, Future Electronics, etc.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):600 V
Current - Continuous Drain (Id) @ 25°C:15A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:215mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id:4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:24 nC @ 10 V
Vgs (Max):±25V
Input Capacitance (Ciss) (Max) @ Vds:940 pF @ 100 V
FET Feature:-
Power Dissipation (Max):110W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PowerFlat™ (8x8) HV
Package / Case:8-PowerVDFN
