STH13N120K5-2AG
  • Share:

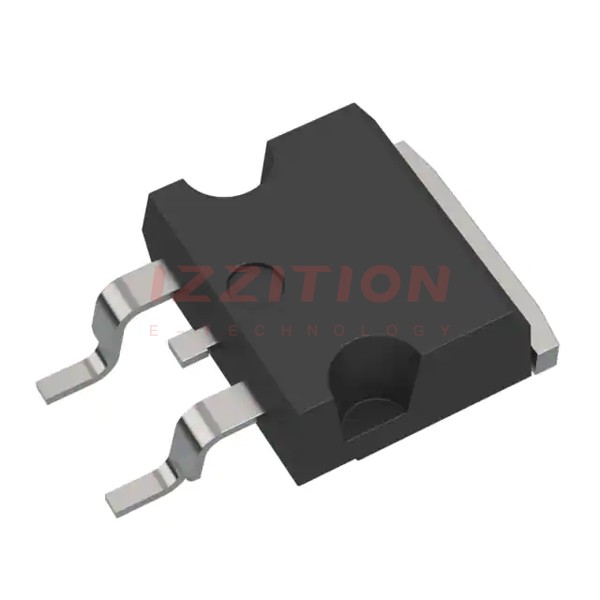

STMicroelectronics STH13N120K5-2AG

Manufacturer No:
STH13N120K5-2AG
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 1200V 12A H2PAK-2
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STH13N120K5-2AG is a high-performance N-Channel MOSFET produced by STMicroelectronics. This device is designed to offer exceptional electrical characteristics, making it suitable for a variety of high-power applications. It is AEC-Q101 qualified, ensuring its reliability and performance in automotive and industrial environments. The MOSFET features ultra-low on-resistance (RDS(on)) and gate charge, along with an excellent figure of merit (FoM), which enhances its efficiency and switching performance.

Key Specifications

ParameterValue
Voltage Rating (Vds)1200 V
Continuous Drain Current (Id)12 A
Power Dissipation (Pd)250 W
On-Resistance (RDS(on))690 mΩ @ 6 A, 10 V
Gate Threshold Voltage (Vgs(th))5 V @ 100 μA
Package TypeH2PAK-2
Avalanche Testing100% avalanche tested

Key Features

  • AEC-Q101 qualified for automotive applications
  • Industry's lowest RDS(on) x area, enhancing efficiency and performance
  • Industry's best figure of merit (FoM)
  • Ultra-low gate charge for fast switching times
  • 100% avalanche tested for reliability

Applications

The STH13N120K5-2AG MOSFET is suitable for various high-power applications, including:

  • Automotive systems (e.g., electric vehicles, hybrid vehicles)
  • Industrial power supplies and motor drives
  • Renewable energy systems (e.g., solar, wind power)
  • High-efficiency power conversion systems

Q & A

  1. What is the voltage rating of the STH13N120K5-2AG MOSFET?
    The voltage rating (Vds) of the STH13N120K5-2AG MOSFET is 1200 V.
  2. What is the continuous drain current of this MOSFET?
    The continuous drain current (Id) is 12 A.
  3. What is the power dissipation of the STH13N120K5-2AG?
    The power dissipation (Pd) is 250 W.
  4. What is the on-resistance (RDS(on)) of this MOSFET?
    The on-resistance (RDS(on)) is 690 mΩ @ 6 A, 10 V.
  5. Is the STH13N120K5-2AG AEC-Q101 qualified?
    Yes, the STH13N120K5-2AG is AEC-Q101 qualified.
  6. What is the package type of this MOSFET?
    The package type is H2PAK-2.
  7. Has the STH13N120K5-2AG been avalanche tested?
    Yes, it has been 100% avalanche tested.
  8. What are some key features of the STH13N120K5-2AG?
    Key features include ultra-low RDS(on) x area, best FoM, ultra-low gate charge, and 100% avalanche testing.
  9. In which applications is the STH13N120K5-2AG commonly used?
    Common applications include automotive systems, industrial power supplies, renewable energy systems, and high-efficiency power conversion systems.
  10. Where can I find detailed specifications for the STH13N120K5-2AG?
    Detailed specifications can be found on the official STMicroelectronics website, as well as on distributor websites like Digi-Key and Mouser Electronics.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):1200 V
Current - Continuous Drain (Id) @ 25°C:12A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:690mOhm @ 6A, 10V
Vgs(th) (Max) @ Id:5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs:44.2 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:1370 pF @ 100 V
FET Feature:-
Power Dissipation (Max):250W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:H2Pak-2
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0 Remaining View Similar

In Stock

$11.05
51

Please send RFQ , we will respond immediately.
