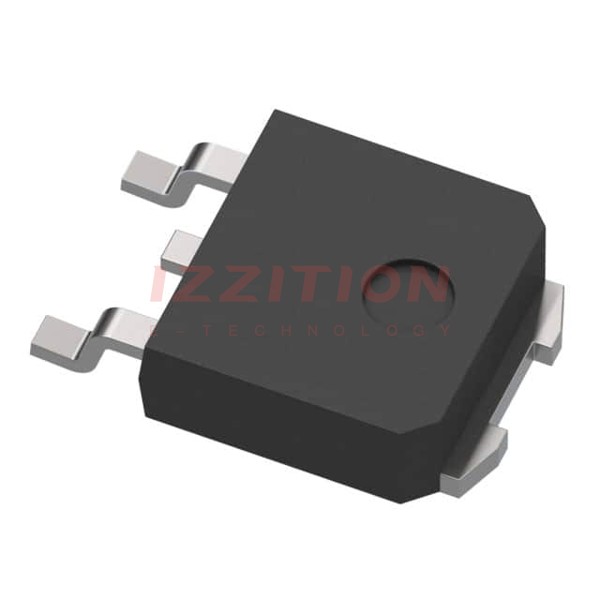

STD80N6F7
  • Share:

STMicroelectronics STD80N6F7

Manufacturer No:
STD80N6F7
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 40A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STD80N6F7 is a high-performance N-channel Power MOSFET from STMicroelectronics, part of the STripFET F7 series. This device is designed to offer excellent electrical characteristics, making it suitable for a wide range of power management applications. The STD80N6F7 is housed in a DPAK package, which provides good thermal performance and is compact enough for use in space-constrained designs.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)60 V
RDS(on) (On-Resistance)6.8 mΩ (typ.)
ID (Drain Current)40 A
Ptot (Total Power Dissipation)100 W
TJ (Junction Temperature)150 °C
PackageDPAK

Key Features

  • High current capability up to 40 A
  • Low on-resistance (RDS(on)) of 6.8 mΩ (typ.)
  • High voltage rating of 60 V
  • Compact DPAK package for efficient thermal management
  • Low thermal resistance
  • Suitable for high-frequency switching applications

Applications

  • Power supplies and DC-DC converters
  • Motor control and drives
  • Automotive systems (e.g., battery management, power steering)
  • Industrial control and automation
  • Renewable energy systems (e.g., solar, wind power)

Q & A

  1. What is the maximum drain-source voltage of the STD80N6F7?
    The maximum drain-source voltage (VDS) is 60 V.
  2. What is the typical on-resistance of the STD80N6F7?
    The typical on-resistance (RDS(on)) is 6.8 mΩ.
  3. What is the maximum drain current of the STD80N6F7?
    The maximum drain current (ID) is 40 A.
  4. In what package is the STD80N6F7 available?
    The STD80N6F7 is available in a DPAK package.
  5. What is the total power dissipation of the STD80N6F7?
    The total power dissipation (Ptot) is 100 W.
  6. What is the junction temperature range of the STD80N6F7?
    The junction temperature (TJ) range is up to 150 °C.
  7. Is the STD80N6F7 suitable for high-frequency switching applications?
    Yes, the STD80N6F7 is suitable for high-frequency switching applications due to its low on-resistance and high current capability.
  8. What are some common applications of the STD80N6F7?
    Common applications include power supplies, DC-DC converters, motor control, automotive systems, industrial control, and renewable energy systems.
  9. Does the STD80N6F7 have any automotive-grade versions?
    No, the STD80N6F7 is not specifically listed as an automotive-grade version, but there are other models in the STripFET F7 series that are automotive-grade.
  10. How does the DPAK package contribute to the performance of the STD80N6F7?
    The DPAK package provides good thermal performance and is compact, making it suitable for space-constrained designs.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:40A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:25 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1600 pF @ 30 V
FET Feature:-
Power Dissipation (Max):100W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D-PAK (TO-252)
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

$0.59
479

Please send RFQ , we will respond immediately.

Same Series
DD15S2S5WV5X/AA
DD15S2S5WV5X/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20WTS/AA
DD15S20WTS/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S2S0V50
DD15S2S0V50
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20LVL0
DD15S20LVL0
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20LVLX
DD15S20LVLX
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20LV3S/AA
DD15S20LV3S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
CBC13W3S10H00/AA
CBC13W3S10H00/AA
CONN D-SUB RCPT 13POS CRIMP
DD15S20WE2S/AA
DD15S20WE2S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD26S20000/AA
DD26S20000/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S200V3X
DD26S200V3X
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50V30
DD26S2S50V30
CONN D-SUB HD RCPT 26P SLDR CUP
RD50S1S50V50
RD50S1S50V50
CONN D-SUB RCPT 50POS CRIMP

Similar Products

Part Number STD80N6F7 STD80N6F6
Manufacturer STMicroelectronics STMicroelectronics
Product Status Active Obsolete
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V 60 V
Current - Continuous Drain (Id) @ 25°C 40A (Tc) 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V
Rds On (Max) @ Id, Vgs 8mOhm @ 20A, 10V 6.5mOhm @ 40A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA 4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 25 nC @ 10 V 122 nC @ 10 V
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 1600 pF @ 30 V 7480 pF @ 25 V
FET Feature - -
Power Dissipation (Max) 100W (Tc) 120W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package D-PAK (TO-252) DPAK
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63 TO-252-3, DPak (2 Leads + Tab), SC-63
