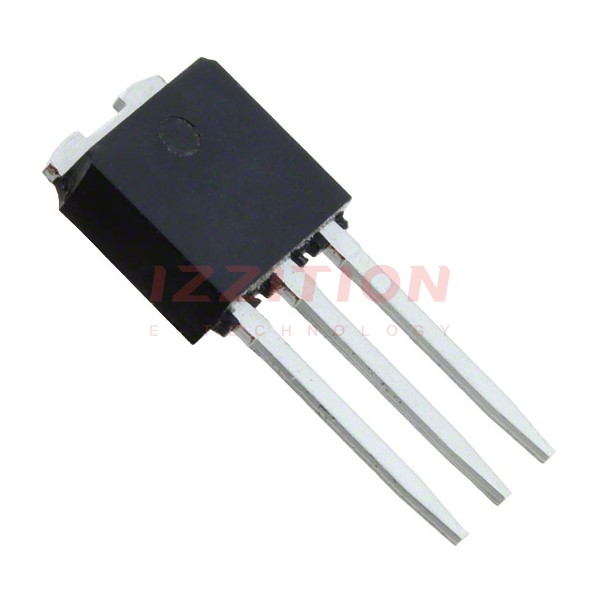

STMicroelectronics STD7NM80-1

Manufacturer No:
STD7NM80-1
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
MOSFET N-CH 800V 6.5A IPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STD7NM80-1 is a high-performance N-channel power MOSFET developed by STMicroelectronics. This device is part of STMicroelectronics' MDmesh technology series, known for its exceptional electrical characteristics and reliability. The STD7NM80-1 is designed to offer extremely low on-resistance, high dv/dt, and excellent avalanche characteristics, making it suitable for a variety of high-power applications.

Key Specifications

ParameterValue
Voltage Rating (Vds)800 V
On-Resistance (Rds(on))0.95 Ω (typ.)
Drain Current (Id)6.5 A
Gate to Source Voltage (Vgs)30 V
Fall Time (tf)10 ns
Input Capacitance (Ciss)620 pF
Maximum Operating Temperature150 °C

Key Features

  • Low on-resistance (Rds(on)) of 0.95 Ω (typ.) for efficient power handling.
  • High dv/dt capability for robust operation in high-frequency applications.
  • Excellent avalanche characteristics for enhanced reliability.
  • MDmesh technology for improved electrical performance and thermal management.
  • High voltage rating of 800 V, suitable for high-power applications.

Applications

The STD7NM80-1 is ideal for various high-power applications, including but not limited to:

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Industrial automation and control systems.
  • Renewable energy systems such as solar and wind power.
  • High-frequency switching applications.

Q & A

  1. What is the voltage rating of the STD7NM80-1 MOSFET?
    The voltage rating of the STD7NM80-1 is 800 V.
  2. What is the typical on-resistance of the STD7NM80-1?
    The typical on-resistance is 0.95 Ω.
  3. What is the maximum drain current of the STD7NM80-1?
    The maximum drain current is 6.5 A.
  4. What technology is used in the STD7NM80-1?
    The STD7NM80-1 uses STMicroelectronics' MDmesh technology.
  5. What is the maximum operating temperature of the STD7NM80-1?
    The maximum operating temperature is 150 °C.
  6. What is the gate to source voltage rating of the STD7NM80-1?
    The gate to source voltage rating is 30 V.
  7. What is the fall time of the STD7NM80-1?
    The fall time is 10 ns.
  8. What is the input capacitance of the STD7NM80-1?
    The input capacitance is 620 pF.
  9. In what package is the STD7NM80-1 available?
    The STD7NM80-1 is available in a DPAK package.
  10. What are some common applications for the STD7NM80-1?
    Common applications include power supplies, motor control systems, industrial automation, renewable energy systems, and high-frequency switching applications.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):800 V
Current - Continuous Drain (Id) @ 25°C:6.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:1.05Ohm @ 3.25A, 10V
Vgs(th) (Max) @ Id:5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:18 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:620 pF @ 25 V
FET Feature:-
Power Dissipation (Max):90W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-251 (IPAK)
Package / Case:TO-251-3 Short Leads, IPak, TO-251AA
0 Remaining View Similar

In Stock

-
518
