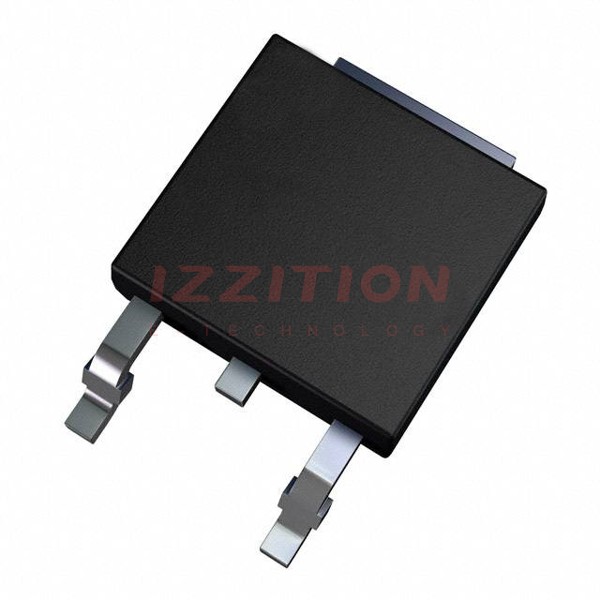

STD44N4LF6
  • Share:

STMicroelectronics STD44N4LF6

Manufacturer No:
STD44N4LF6
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 44A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STD44N4LF6 is an N-channel Power MOSFET developed by STMicroelectronics using the 6th generation of STripFET™ DeepGATE™ technology. This device features a new gate structure that enhances its performance and efficiency. It is designed for surface mount technology (SMT) and comes in a DPAK package, making it suitable for a variety of high-power applications.

Key Specifications

ParameterValue
Voltage Rating (Vds)40 V
On-Resistance (Rds(on))8.9 mΩ
Continuous Drain Current (Id)44 A
Power Dissipation (Pd)50 W
Package TypeDPAK

Key Features

  • Developed using 6th generation STripFET™ DeepGATE™ technology for enhanced performance.
  • New gate structure for improved efficiency.
  • Low on-resistance (Rds(on)) of 8.9 mΩ.
  • High continuous drain current (Id) of 44 A.
  • High power dissipation capability of 50 W.
  • Surface mount technology (SMT) in DPAK package.

Applications

The STD44N4LF6 is suitable for various high-power applications, including but not limited to:

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Automotive systems requiring high current and low on-resistance.
  • Industrial power management systems.

Q & A

  1. What is the voltage rating of the STD44N4LF6?
    The voltage rating (Vds) of the STD44N4LF6 is 40 V.
  2. What is the on-resistance (Rds(on)) of the STD44N4LF6?
    The on-resistance (Rds(on)) of the STD44N4LF6 is 8.9 mΩ.
  3. What is the continuous drain current (Id) of the STD44N4LF6?
    The continuous drain current (Id) of the STD44N4LF6 is 44 A.
  4. What is the power dissipation capability of the STD44N4LF6?
    The power dissipation capability of the STD44N4LF6 is 50 W.
  5. In what package is the STD44N4LF6 available?
    The STD44N4LF6 is available in a DPAK package.
  6. What technology is used in the STD44N4LF6?
    The STD44N4LF6 is developed using the 6th generation of STripFET™ DeepGATE™ technology.
  7. What are some common applications of the STD44N4LF6?
    The STD44N4LF6 is commonly used in power supplies, DC-DC converters, motor control systems, automotive systems, and industrial power management systems.
  8. Is the STD44N4LF6 suitable for surface mount technology (SMT)?
    Yes, the STD44N4LF6 is designed for surface mount technology (SMT).
  9. Where can I find detailed specifications for the STD44N4LF6?
    Detailed specifications for the STD44N4LF6 can be found in the datasheet available on STMicroelectronics' official website and other electronic component distributors like Digi-Key and Mouser.
  10. What are the benefits of the new gate structure in the STD44N4LF6?
    The new gate structure in the STD44N4LF6 enhances its performance and efficiency by reducing on-resistance and improving overall device reliability.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:44A (Tc)
Drive Voltage (Max Rds On, Min Rds On):5V, 10V
Rds On (Max) @ Id, Vgs:12.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:22 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1190 pF @ 25 V
FET Feature:-
Power Dissipation (Max):50W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

$1.55
361

Please send RFQ , we will respond immediately.
