STD40P8F6AG
  • Share:

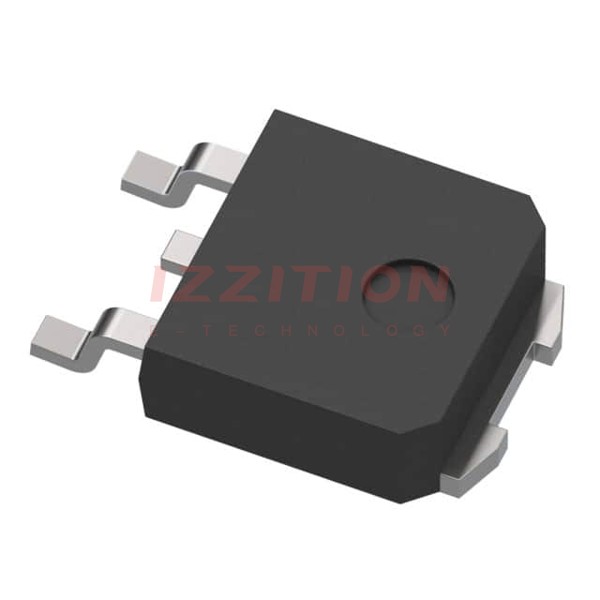

STMicroelectronics STD40P8F6AG

Manufacturer No:
STD40P8F6AG
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 80V DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STD40P8F6AG is an automotive-grade P-channel Power MOSFET developed by STMicroelectronics using the advanced STripFET™ F6 technology. This device features a new trench gate structure, which enhances its performance and reliability. It is specifically designed for automotive applications and is AEC-Q101 qualified, ensuring it meets the stringent requirements of the automotive industry.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)-80 V
RDS(on) (On-Resistance)18.5 mΩ (typ.)
ID (Drain Current)-40 A
PD (Power Dissipation)100 W (Tc)
PackageTO-252 (DPAK)
QualificationAEC-Q101

Key Features

  • Very low on-resistance (RDS(on)) of 18.5 mΩ (typ.)
  • Very low gate charge
  • High avalanche ruggedness
  • AEC-Q101 qualified for automotive applications
  • STripFET™ F6 technology with a new trench gate structure

Applications

The STD40P8F6AG is designed for various automotive applications, including power management, motor control, and other high-power switching applications. Its robust design and low on-resistance make it suitable for demanding environments.

Q & A

  1. What is the drain-source voltage rating of the STD40P8F6AG?
    The drain-source voltage rating is -80 V.
  2. What is the typical on-resistance of the STD40P8F6AG?
    The typical on-resistance is 18.5 mΩ.
  3. What is the maximum drain current of the STD40P8F6AG?
    The maximum drain current is -40 A.
  4. What package type is the STD40P8F6AG available in?
    The STD40P8F6AG is available in a TO-252 (DPAK) package.
  5. Is the STD40P8F6AG AEC-Q101 qualified?
    Yes, the STD40P8F6AG is AEC-Q101 qualified for automotive applications.
  6. What technology is used in the STD40P8F6AG?
    The STD40P8F6AG uses the STripFET™ F6 technology with a new trench gate structure.
  7. What are some typical applications of the STD40P8F6AG?
    Typical applications include power management, motor control, and other high-power switching applications in the automotive sector.
  8. What is the power dissipation rating of the STD40P8F6AG?
    The power dissipation rating is 100 W (Tc).
  9. Does the STD40P8F6AG have high avalanche ruggedness?
    Yes, the STD40P8F6AG features high avalanche ruggedness.
  10. Where can I find detailed specifications for the STD40P8F6AG?
    Detailed specifications can be found in the datasheet available on the STMicroelectronics website or through distributors like Digi-Key.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):80 V
Current - Continuous Drain (Id) @ 25°C:40A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:28mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:73 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:4112 pF @ 25 V
FET Feature:-
Power Dissipation (Max):100W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D-PAK (TO-252)
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

$2.00
220

Please send RFQ , we will respond immediately.
