STB120N4F6
  • Share:

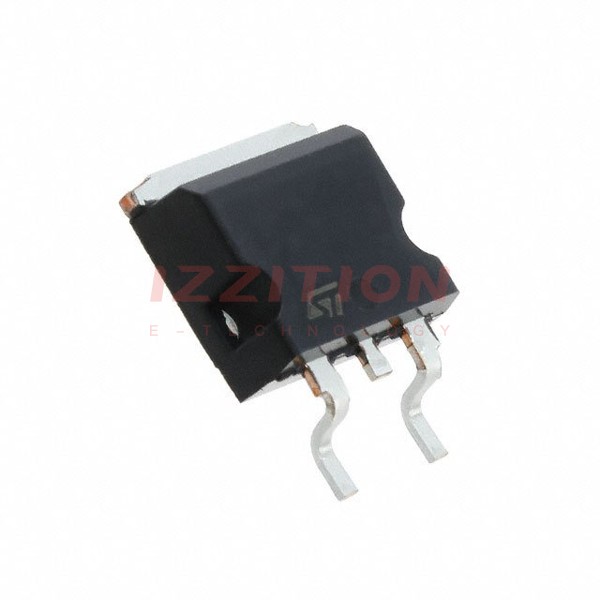

STMicroelectronics STB120N4F6

Manufacturer No:
STB120N4F6
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 80A D2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STB120N4F6 is an N-channel Power MOSFET developed by STMicroelectronics using the 6th generation of STripFET™ DeepGATE™ technology. This device is designed for automotive applications and is AEC-Q101 qualified, ensuring high reliability and performance in demanding environments. The MOSFET features a new gate structure that results in the lowest RDS(on) in all packages, making it ideal for high-efficiency switching applications.

Key Specifications

Parameter Value Unit
Drain-Source Voltage (VDS) 40 V
Gate-Source Voltage (VGS) ±20 V
Drain Current (ID) Continuous at TC = 25°C 80 A
Drain Current (ID) Continuous at TC = 100°C 80 A
Pulse Drain Current (IDM) 320 A
Total Dissipation at TC = 25°C 110 W
Storage Temperature (Tstg) -55 to 175 °C
Operating Junction Temperature (Tj) -55 to 175 °C
Static Drain-Source On-Resistance (RDS(on)) at VGS = 10 V, ID = 40 A 3.5 mΩ mΩ
Total Gate Charge (Qg) 65 nC nC
Rise Time (tr) 70 ns ns
Output Capacitance (Coss) 650 pF pF

Key Features

  • Designed for automotive applications and AEC-Q101 qualified.
  • Very low on-resistance (RDS(on) = 3.5 mΩ typ.).
  • Very low gate charge (Qg = 65 nC).
  • High avalanche ruggedness.
  • Low gate drive power loss.

Applications

The STB120N4F6 is primarily used in switching applications, particularly in the automotive sector due to its AEC-Q101 qualification. It is suitable for high-efficiency power management systems, DC-DC converters, and other applications requiring low on-resistance and high current handling capabilities.

Q & A

  1. What is the maximum drain-source voltage of the STB120N4F6?

    The maximum drain-source voltage (VDS) is 40 V.

  2. What is the maximum continuous drain current at 25°C?

    The maximum continuous drain current (ID) at TC = 25°C is 80 A.

  3. What is the typical on-resistance of the STB120N4F6?

    The typical on-resistance (RDS(on)) is 3.5 mΩ at VGS = 10 V and ID = 40 A.

  4. What is the total gate charge of the STB120N4F6?

    The total gate charge (Qg) is 65 nC.

  5. What is the rise time of the STB120N4F6?

    The rise time (tr) is 70 ns.

  6. What are the package options for the STB120N4F6?

    The STB120N4F6 is available in DPAK and D²PAK packages.

  7. Is the STB120N4F6 qualified for automotive applications?

    Yes, the STB120N4F6 is AEC-Q101 qualified for automotive applications.

  8. What is the maximum junction temperature of the STB120N4F6?

    The maximum junction temperature (Tj) is 175°C.

  9. What is the maximum storage temperature of the STB120N4F6?

    The maximum storage temperature (Tstg) is -55 to 175°C.

  10. What are some key applications of the STB120N4F6?

    The STB120N4F6 is used in switching applications, particularly in the automotive sector, and is suitable for high-efficiency power management systems and DC-DC converters.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:80A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:4mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:65 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:3850 pF @ 25 V
FET Feature:-
Power Dissipation (Max):110W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D²PAK (TO-263)
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0 Remaining View Similar

In Stock

$2.54
75

Please send RFQ , we will respond immediately.

Same Series
STB120N4F6
STB120N4F6
MOSFET N-CH 40V 80A D2PAK
STP120N4F6
STP120N4F6
MOSFET N-CH 40V 80A TO220AB

Similar Products

Part Number STB120N4F6 STB120N4LF6 STB140N4F6
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics
Product Status Active Active Active
FET Type N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V 40 V 40 V
Current - Continuous Drain (Id) @ 25°C 80A (Tc) 80A (Tc) 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 5V, 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 4mOhm @ 40A, 10V 4mOhm @ 40A, 10V -
Vgs(th) (Max) @ Id 4V @ 250µA 3V @ 250µA -
Gate Charge (Qg) (Max) @ Vgs 65 nC @ 10 V 80 nC @ 10 V -
Vgs (Max) ±20V ±20V -
Input Capacitance (Ciss) (Max) @ Vds 3850 pF @ 25 V 4300 pF @ 25 V -
FET Feature - - -
Power Dissipation (Max) 110W (Tc) 110W (Tc) 168W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package D²PAK (TO-263) D²PAK (TO-263) D²PAK (TO-263)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB TO-263-3, D²Pak (2 Leads + Tab), TO-263AB TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
