onsemi NVMFSC1D6N06CL

Manufacturer No:
NVMFSC1D6N06CL
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 35A/224A 8DFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

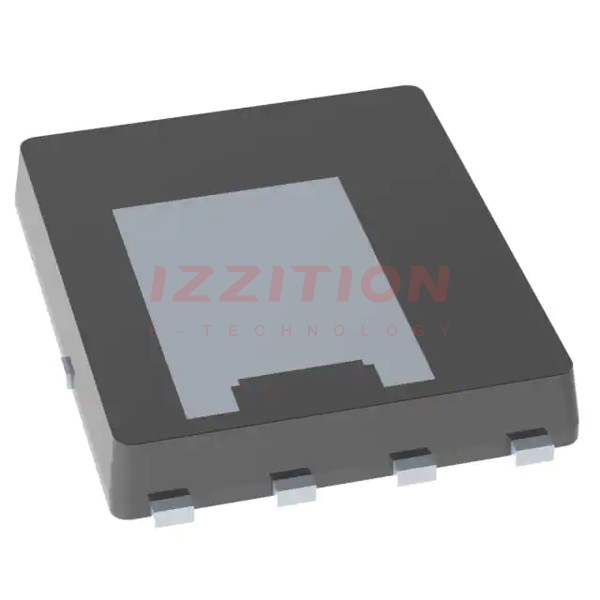

The NVMFSC1D6N06CL is a high-performance, dual-cool N-Channel MOSFET produced by onsemi. This device is designed to offer superior thermal performance and efficiency, making it suitable for a wide range of power management applications. The MOSFET features a compact DFN8 5x6 package, which enhances thermal dissipation and reduces the overall footprint in designs.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)60 V
ID (Continuous Drain Current)224 A
RDS(ON) (On-Resistance)1.5 mΩ
VGS(th) (Threshold Voltage)2.0 - 4.0 V
Package TypeDFN8 5x6
Operating Temperature Range-55°C to 150°C

Key Features

  • Dual-cool package for enhanced thermal performance
  • Low on-resistance (RDS(ON)) of 1.5 mΩ
  • High continuous drain current (ID) of 224 A
  • Compact DFN8 5x6 package for reduced footprint
  • Wide operating temperature range from -55°C to 150°C

Applications

The NVMFSC1D6N06CL is ideal for various high-power applications, including but not limited to:

  • Power supplies and DC-DC converters
  • Motor control and drive systems
  • Automotive systems, such as electric vehicles and hybrid vehicles
  • Industrial power management and control systems
  • Renewable energy systems, such as solar and wind power

Q & A

  1. What is the maximum drain-source voltage of the NVMFSC1D6N06CL?
    The maximum drain-source voltage (VDS) is 60 V.
  2. What is the continuous drain current rating of this MOSFET?
    The continuous drain current (ID) is 224 A.
  3. What is the on-resistance (RDS(ON)) of the NVMFSC1D6N06CL?
    The on-resistance (RDS(ON)) is 1.5 mΩ.
  4. What type of package does the NVMFSC1D6N06CL use?
    The NVMFSC1D6N06CL uses a DFN8 5x6 package.
  5. What is the operating temperature range of this MOSFET?
    The operating temperature range is from -55°C to 150°C.
  6. What are some typical applications for the NVMFSC1D6N06CL?
    Typical applications include power supplies, motor control systems, automotive systems, industrial power management, and renewable energy systems.
  7. Why is the dual-cool package beneficial?
    The dual-cool package enhances thermal performance by providing better heat dissipation, which is crucial for high-power applications.
  8. Where can I find detailed specifications for the NVMFSC1D6N06CL?
    Detailed specifications can be found in the datasheet available on onsemi's official website, as well as on distributor websites like Digi-Key and Mouser Electronics.
  9. Is the NVMFSC1D6N06CL suitable for high-frequency applications?
    Yes, the low on-resistance and compact package make it suitable for high-frequency applications.
  10. Can the NVMFSC1D6N06CL be used in automotive applications?
    Yes, it is suitable for automotive applications due to its robust specifications and wide operating temperature range.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:35A (Ta), 224A (Tc)
Drive Voltage (Max Rds On, Min Rds On):-
Rds On (Max) @ Id, Vgs:-
Vgs(th) (Max) @ Id:2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:91 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:6660 pF @ 25 V
FET Feature:-
Power Dissipation (Max):4.1W (Ta), 166W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-DFN (5x6.15)
Package / Case:8-PowerVDFN
0 Remaining View Similar

In Stock

$6.70
23
