Overview

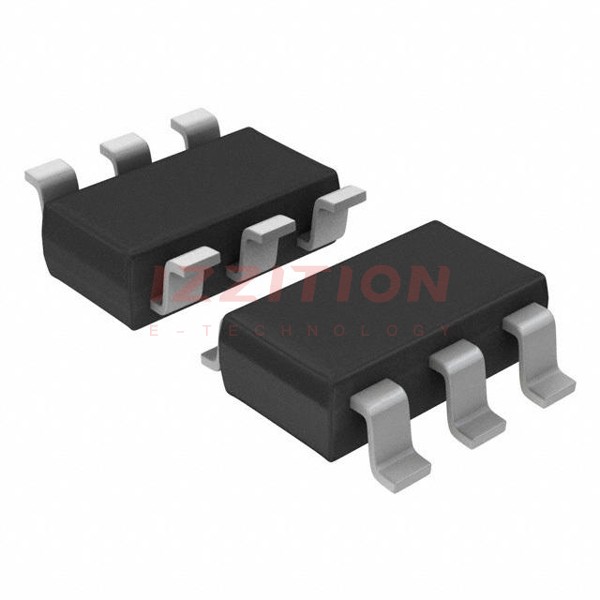

The NVGS5120PT1G is a single P-channel power MOSFET produced by onsemi, designed for high-performance applications. This device is housed in a TSOP-6 package and is notable for its low RDS(on) and high voltage rating. It is AEC-Q101 qualified, making it suitable for automotive and other demanding applications. The MOSFET is lead-free, halogen-free, and RoHS compliant, ensuring environmental sustainability and regulatory compliance.
Key Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Drain-to-Source Voltage | VDSS | -60 | V |
| Gate-to-Source Voltage | VGS | −20 | V |
| Continuous Drain Current (TA = 25°C) | ID | -2.5 | A |
| Continuous Drain Current (TA = 85°C) | ID | -2.0 | A |
| Gate Threshold Voltage | VGS(TH) | -1.0 to -3.0 | V |
| Drain-to-Source On Resistance (VGS = -10 V, ID = -2.9 A) | RDS(on) | 72 to 111 | mΩ |
| Forward Transconductance | gFS | 10.1 | S |
| Input Capacitance | CISS | 942 | pF |
| Output Capacitance | COSS | 72 | pF |
| Total Gate Charge | QG(TOT) | 18.1 | nC |
| Turn-On Delay Time | td(ON) | 8.7 | ns |
| Rise Time | tr | 4.9 | ns |
| Turn-Off Delay Time | td(OFF) | 38 | ns |
| Fall Time | tf | 12.8 | ns |
Key Features
- 60 V BVds with low RDS(on) in a TSOP-6 package
- 4.5 V gate rating
- AEC-Q101 qualified and PPAP capable, suitable for automotive and other demanding applications
- Pb-free, halogen-free, and RoHS compliant
- High side load switch and power switch capabilities
Applications
- High side load switch
- Power switch for printers and communication equipment
- Automotive applications requiring unique site and control change requirements
Q & A
- What is the maximum drain-to-source voltage of the NVGS5120PT1G? The maximum drain-to-source voltage is -60 V.
- What is the continuous drain current at 25°C? The continuous drain current at 25°C is -2.5 A.
- Is the NVGS5120PT1G AEC-Q101 qualified? Yes, it is AEC-Q101 qualified.
- What is the gate threshold voltage range? The gate threshold voltage range is -1.0 to -3.0 V.
- What is the typical drain-to-source on resistance at VGS = -10 V and ID = -2.9 A? The typical drain-to-source on resistance is 72 to 111 mΩ.
- What are the typical turn-on and turn-off delay times? The typical turn-on delay time is 8.7 ns, and the typical turn-off delay time is 38 ns.
- Is the NVGS5120PT1G lead-free and RoHS compliant? Yes, it is lead-free, halogen-free, and RoHS compliant.
- What are some common applications of the NVGS5120PT1G? Common applications include high side load switches and power switches for printers and communication equipment.
- What is the forward transconductance of the NVGS5120PT1G? The forward transconductance is 10.1 S.
- What is the total gate charge at VGS = -10 V and ID = -2.9 A? The total gate charge is 18.1 nC.
