NTTFS5C466NLTAG
  • Share:

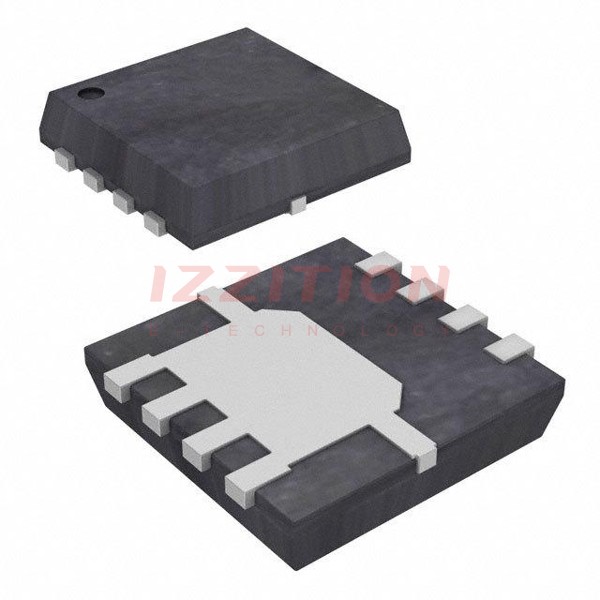

onsemi NTTFS5C466NLTAG

Manufacturer No:
NTTFS5C466NLTAG
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 14A/51A 8WDFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NTTFS5C466NLTAG is a high-performance, single N-Channel MOSFET produced by onsemi. This device is designed to offer excellent electrical characteristics, making it suitable for a wide range of applications that require high power handling and efficiency. The MOSFET features a low on-resistance and high current capability, which are crucial for minimizing power losses and maximizing system performance.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)40 V
RDS(ON) (On-Resistance)7.3 mΩ (typical at VGS = 10 V)
ID (Continuous Drain Current)51 A
VGS(th) (Threshold Voltage)1.5 V to 3.5 V
PD (Power Dissipation)Dependent on package and thermal conditions

Key Features

  • Low on-resistance (RDS(ON)) of 7.3 mΩ, reducing power losses and improving efficiency.
  • High continuous drain current (ID) of 51 A, suitable for high-power applications.
  • Single N-Channel configuration for simplicity and reliability.
  • Robust and reliable performance in various operating conditions.

Applications

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Automotive systems, including electric vehicles and hybrid vehicles.
  • Industrial control and automation.
  • Consumer electronics requiring high power handling.

Q & A

  1. What is the maximum drain-source voltage (VDS) of the NTTFS5C466NLTAG MOSFET?
    The maximum drain-source voltage (VDS) is 40 V.
  2. What is the typical on-resistance (RDS(ON)) of this MOSFET?
    The typical on-resistance (RDS(ON)) is 7.3 mΩ at VGS = 10 V.
  3. What is the continuous drain current (ID) rating of the NTTFS5C466NLTAG?
    The continuous drain current (ID) rating is 51 A.
  4. What are the typical applications of the NTTFS5C466NLTAG MOSFET?
    Typical applications include power supplies, motor control systems, automotive systems, industrial control, and consumer electronics requiring high power handling.
  5. What is the threshold voltage (VGS(th)) range of this MOSFET?
    The threshold voltage (VGS(th)) range is from 1.5 V to 3.5 V.
  6. Where can I find detailed specifications and datasheets for the NTTFS5C466NLTAG?
    Detailed specifications and datasheets can be found on the official onsemi website, as well as on distributor websites like Digi-Key, Mouser, and AllDataSheet.
  7. What is the significance of low on-resistance in a MOSFET?
    Low on-resistance reduces power losses and improves the overall efficiency of the system.
  8. Can the NTTFS5C466NLTAG be used in high-temperature environments?
    The suitability for high-temperature environments depends on the specific thermal conditions and the package used; refer to the datasheet for detailed thermal specifications.
  9. Is the NTTFS5C466NLTAG suitable for use in automotive systems?
    Yes, it is suitable for use in automotive systems, including electric and hybrid vehicles, due to its robust performance and high power handling capabilities.
  10. What is the typical power dissipation (PD) of this MOSFET?
    The power dissipation (PD) is dependent on the package and thermal conditions; refer to the datasheet for specific details.

Product Attributes

FET Type:N-Channel
Technology:-
Drain to Source Voltage (Vdss):-
Current - Continuous Drain (Id) @ 25°C:14A (Ta), 51A (Tc)
Drive Voltage (Max Rds On, Min Rds On):-
Rds On (Max) @ Id, Vgs:7.3mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):-
Input Capacitance (Ciss) (Max) @ Vds:-
FET Feature:-
Power Dissipation (Max):-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-WDFN (3.3x3.3)
Package / Case:8-PowerWDFN
0 Remaining View Similar

In Stock

$1.23
585

Please send RFQ , we will respond immediately.

Similar Products

Part Number NTTFS5C466NLTAG NTTFS5C460NLTAG
Manufacturer onsemi onsemi
Product Status Active Active
FET Type N-Channel N-Channel
Technology - -
Drain to Source Voltage (Vdss) - -
Current - Continuous Drain (Id) @ 25°C 14A (Ta), 51A (Tc) 19A (Ta), 74A (Tc)
Drive Voltage (Max Rds On, Min Rds On) - -
Rds On (Max) @ Id, Vgs 7.3mOhm @ 10A, 10V 4.8mOhm @ 35A, 10V
Vgs(th) (Max) @ Id 2.2V @ 250µA 2V @ 40µA
Gate Charge (Qg) (Max) @ Vgs - -
Vgs (Max) - -
Input Capacitance (Ciss) (Max) @ Vds - -
FET Feature - -
Power Dissipation (Max) - -
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package 8-WDFN (3.3x3.3) 8-WDFN (3.3x3.3)
Package / Case 8-PowerWDFN 8-PowerWDFN
