Overview

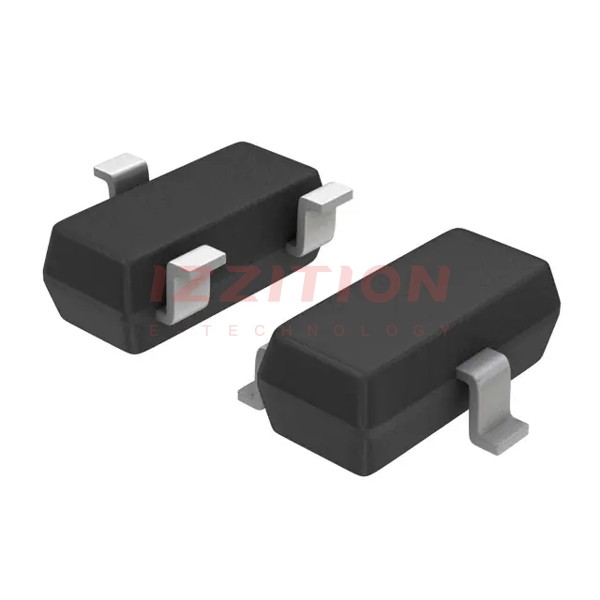

The NTR1P02T1G is a P-Channel power MOSFET produced by onsemi, designed for high-efficiency power management in various applications. This device is packaged in a miniature SOT-23 surface mount package, which saves board space and is ideal for portable and battery-powered products. The NTR1P02T1G is Pb-free and RoHS compliant, ensuring environmental sustainability.
Key Specifications
Rating | Symbol | Value | Unit |
---|---|---|---|
Drain-to-Source Voltage | VDSS | −20 | V |
Gate-to-Source Voltage - Continuous | VGS | ±20 | V |
Drain Current - Continuous @ TA = 25°C | ID | −1.0 | A |
Pulsed Drain Current (tp ≤ 1 μs) | IDM | −2.67 | A |
Total Power Dissipation @ TA = 25°C | PD | 400 | mW |
Operating and Storage Temperature Range | TJ, Tstg | −55 to 150 | °C |
Thermal Resistance; Junction-to-Ambient | RθJA | 300 | °C/W |
Maximum Lead Temperature for Soldering Purposes | TL | 260 | °C |
Gate Threshold Voltage | VGS(th) | −1.1 to −4.0 | V |
Static Drain-to-Source On-State Resistance (VGS = −10 V, ID = −1.5 A) | RDS(on) | 0.148 to 0.235 Ω | Ω |
Key Features
- Ultra Low On-Resistance: Provides higher efficiency and extends battery life with RDS(on) = 0.180 Ω at VGS = −10 V and RDS(on) = 0.280 Ω at VGS = −4.5 V.
- Miniature SOT-23 Surface Mount Package: Saves board space and is suitable for compact designs.
- Pb-Free and RoHS Compliant: Ensures environmental sustainability.
- AEC-Q101 Qualified and PPAP Capable: Suitable for automotive and other applications requiring unique site and control change requirements.
- Low Gate Threshold Voltage: Facilitates easier control and switching.
Applications
- DC-DC Converters
- Computers
- Printers
- PCMCIA Cards
- Cellular and Cordless Telephones
Q & A
- What is the maximum drain-to-source voltage of the NTR1P02T1G?
The maximum drain-to-source voltage (VDSS) is −20 V.
- What is the continuous drain current rating at 25°C?
The continuous drain current (ID) is −1.0 A at 25°C.
- What is the thermal resistance from junction to ambient?
The thermal resistance from junction to ambient (RθJA) is 300 °C/W.
- Is the NTR1P02T1G Pb-free and RoHS compliant?
Yes, the NTR1P02T1G is Pb-free and RoHS compliant.
- What are the typical on-state resistance values?
The typical on-state resistance (RDS(on)) is 0.180 Ω at VGS = −10 V and 0.280 Ω at VGS = −4.5 V.
- What is the gate threshold voltage range?
The gate threshold voltage (VGS(th)) range is from −1.1 to −4.0 V.
- What are some common applications for the NTR1P02T1G?
Common applications include DC-DC converters, computers, printers, PCMCIA cards, and cellular and cordless telephones.
- What is the maximum lead temperature for soldering purposes?
The maximum lead temperature for soldering purposes is 260°C.
- Is the NTR1P02T1G AEC-Q101 qualified?
Yes, the NTR1P02T1G is AEC-Q101 qualified and PPAP capable.
- What is the input capacitance at VDS = −5 V and VGS = 0 V?
The input capacitance (Ciss) is 165 pF at VDS = −5 V and VGS = 0 V.
