Overview

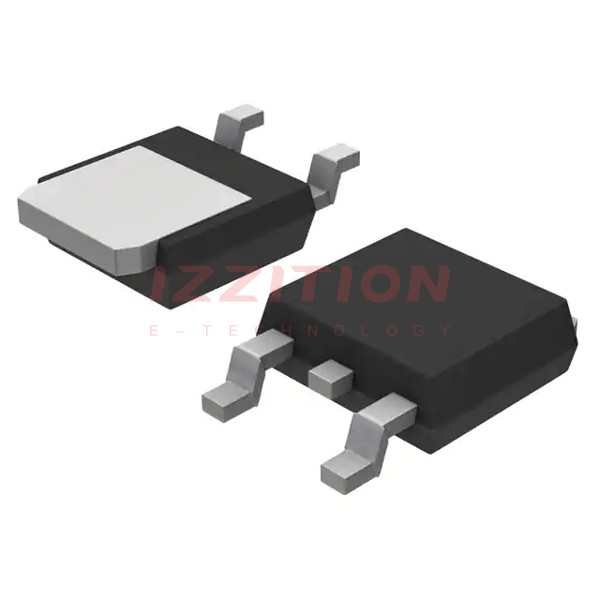

The NTD18N06LT4G is a power MOSFET produced by onsemi, designed for low voltage, high-speed switching applications. This N-Channel, logic-level MOSFET is housed in a DPAK package and is Pb-Free and RoHS compliant. It is suitable for various power management and control applications, including power supplies, converters, power motor controls, and bridge circuits.
Key Specifications
Rating Symbol | Value | Unit |
---|---|---|
Drain-to-Source Voltage (VDSS) | 60 | Vdc |
Drain-to-Gate Voltage (VDGR) | 60 | Vdc |
Gate-to-Source Voltage (VGS) | ±15 (Continuous), ±20 (Non-repetitive) | Vdc |
Drain Current (ID) | 18 (Continuous @ TA = 25°C), 10 (Continuous @ TA = 100°C), 54 (Single Pulse) | A |
Total Power Dissipation @ TA = 25°C | 55 W | W |
Operating and Storage Temperature Range | -55 to +175 °C | °C |
Thermal Resistance - Junction-to-Case (RθJC) | 2.73 °C/W | °C/W |
Maximum Lead Temperature for Soldering | 260 °C | °C |
Static Drain-to-Source On-Resistance (RDS(on)) | 54 mΩ (Typical @ VGS = 5.0 V, ID = 9.0 A) | mΩ |
Key Features
- AEC Q101 Qualified for the NTDV18N06L version
- Pb-Free and RoHS compliant
- Logic-level gate drive for easy interface with microcontrollers and other logic circuits
- Low on-resistance (RDS(on)) for reduced power losses
- High-speed switching capabilities
- Safe operating area (SOA) for reliable operation in various load conditions
- Avalanche energy rated for robustness against inductive loads
Applications
- Power Supplies
- Converters
- Power Motor Controls
- Bridge Circuits
- Other high-speed switching applications requiring low voltage and high current handling
Q & A
- What is the maximum drain-to-source voltage (VDSS) of the NTD18N06LT4G?
The maximum drain-to-source voltage (VDSS) is 60 Vdc.
- What is the continuous drain current (ID) at 25°C and 100°C?
The continuous drain current (ID) is 18 A at 25°C and 10 A at 100°C.
- Is the NTD18N06LT4G Pb-Free and RoHS compliant?
Yes, the NTD18N06LT4G is Pb-Free and RoHS compliant.
- What are the typical applications of the NTD18N06LT4G?
The typical applications include power supplies, converters, power motor controls, and bridge circuits.
- What is the thermal resistance - junction-to-case (RθJC) of the NTD18N06LT4G?
The thermal resistance - junction-to-case (RθJC) is 2.73 °C/W.
- What is the maximum lead temperature for soldering?
The maximum lead temperature for soldering is 260 °C.
- What is the static drain-to-source on-resistance (RDS(on)) at VGS = 5.0 V and ID = 9.0 A?
The static drain-to-source on-resistance (RDS(on)) is typically 54 mΩ.
- Is the NTD18N06LT4G suitable for high-speed switching applications?
Yes, the NTD18N06LT4G is designed for high-speed switching applications.
- What is the operating and storage temperature range of the NTD18N06LT4G?
The operating and storage temperature range is -55 to +175 °C.
- Is the NTD18N06LT4G AEC Q101 Qualified?
The NTDV18N06L version of this MOSFET is AEC Q101 Qualified.
