NJW3281G
  • Share:

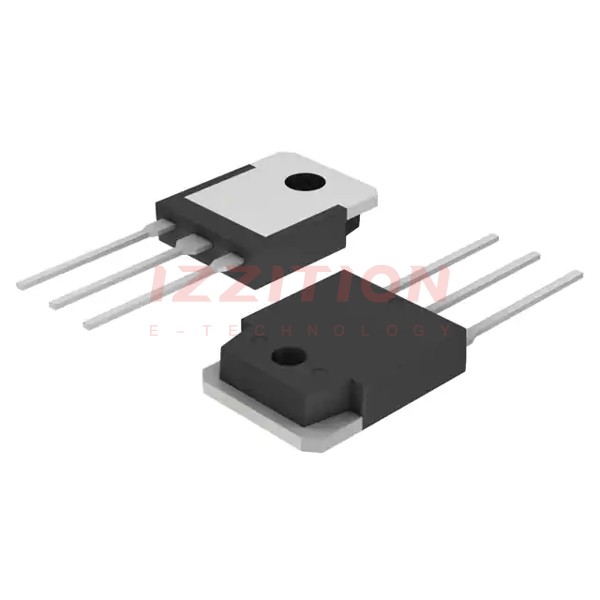

onsemi NJW3281G

Manufacturer No:
NJW3281G
Manufacturer:
onsemi
Package:
Tube
Description:
TRANS NPN 250V 15A TO3P-3L
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NJW3281G is a high-power NPN bipolar transistor manufactured by onsemi. This transistor is designed for high-power applications, including power audio, disk head positioners, and other linear applications. It is part of a complementary pair with the NJW1302G PNP transistor, offering symmetrical characteristics and excellent gain linearity.

Key Specifications

ParameterValueUnit
Transistor TypeNPN
Maximum DC Collector Current15A
Maximum Collector-Emitter Voltage250Vdc
Maximum Collector-Base Voltage250Vdc
Maximum Emitter-Base Voltage5Vdc
Maximum Power Dissipation200W
Package TypeTO-3P
Mounting TypeThrough Hole
Maximum Operating Frequency1 MHz
Pin Count3
Dimensions15.8 x 5 x 20.1 mm
Maximum Operating Temperature+150 °C
Transition Frequency (ft)30 MHz
Forward Current Transfer Ratio (hFE), MIN75

Key Features

  • Exceptional Safe Operating Area (SOA)
  • NPN/PNP Gain Matching within 10% from 50 mA to 5 A
  • Excellent Gain Linearity
  • High BVCEO and high frequency capabilities
  • Reliable performance at higher powers
  • Symmetrical characteristics in complementary configurations
  • Accurate reproduction of input signal and greater dynamic range
  • Pb-free and RoHS compliant

Applications

  • High-power audio amplifiers
  • Disk head positioners
  • Switching regulators
  • High-frequency inverters
  • General-purpose power amplifiers
  • Home amplifiers and receivers
  • Professional audio amplifiers (theater and stadium sound systems, public address systems)

Q & A

  1. What is the maximum DC collector current of the NJW3281G transistor?
    The maximum DC collector current is 15 A.
  2. What is the maximum collector-emitter voltage of the NJW3281G transistor?
    The maximum collector-emitter voltage is 250 Vdc.
  3. What is the package type of the NJW3281G transistor?
    The package type is TO-3P.
  4. What is the maximum power dissipation of the NJW3281G transistor?
    The maximum power dissipation is 200 W.
  5. What is the maximum operating frequency of the NJW3281G transistor?
    The maximum operating frequency is 1 MHz.
  6. What are the dimensions of the NJW3281G transistor?
    The dimensions are 15.8 x 5 x 20.1 mm.
  7. What is the maximum operating temperature of the NJW3281G transistor?
    The maximum operating temperature is +150 °C.
  8. Is the NJW3281G transistor Pb-free and RoHS compliant?
    Yes, it is Pb-free and RoHS compliant.
  9. What are some typical applications of the NJW3281G transistor?
    Typical applications include high-power audio, disk head positioners, switching regulators, high-frequency inverters, and general-purpose power amplifiers.
  10. What is the transition frequency (ft) of the NJW3281G transistor?
    The transition frequency (ft) is 30 MHz.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):15 A
Voltage - Collector Emitter Breakdown (Max):250 V
Vce Saturation (Max) @ Ib, Ic:600mV @ 800mA, 8A
Current - Collector Cutoff (Max):50µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:75 @ 3A, 5V
Power - Max:200 W
Frequency - Transition:30MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3, SC-65-3
Supplier Device Package:TO-3P-3L
0 Remaining View Similar

In Stock

$5.14
116

Please send RFQ , we will respond immediately.

Same Series
NJW3281G
NJW3281G
TRANS NPN 250V 15A TO3P-3L

Similar Products

Part Number NJW3281G NJW0281G
Manufacturer onsemi onsemi
Product Status Active Active
Transistor Type NPN NPN
Current - Collector (Ic) (Max) 15 A 15 A
Voltage - Collector Emitter Breakdown (Max) 250 V 250 V
Vce Saturation (Max) @ Ib, Ic 600mV @ 800mA, 8A 1V @ 500mA, 5A
Current - Collector Cutoff (Max) 50µA (ICBO) 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 75 @ 3A, 5V 75 @ 3A, 5V
Power - Max 200 W 150 W
Frequency - Transition 30MHz 30MHz
Operating Temperature -65°C ~ 150°C (TJ) -65°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole
Package / Case TO-3P-3, SC-65-3 TO-3P-3, SC-65-3
Supplier Device Package TO-3P-3L TO-3P-3L
