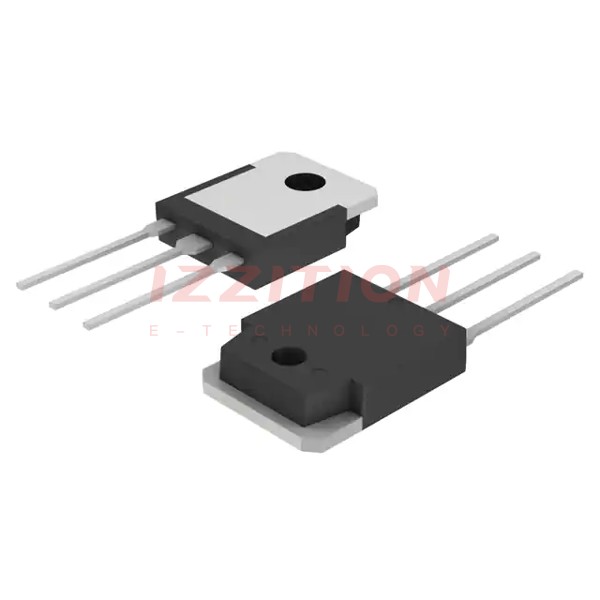

onsemi NJW0281G

Manufacturer No:
NJW0281G
Manufacturer:
onsemi
Package:
Bulk
Description:
TRANS NPN 250V 15A TO3P-3L
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NJW0281G is a high-performance NPN power bipolar transistor manufactured by onsemi. It is part of the NJW series and is designed for use in high-fidelity audio amplifier output stages and other linear applications. This transistor is known for its exceptional safe operating area, excellent gain linearity, and high collector-emitter breakdown voltage, making it suitable for a variety of audio and power amplification tasks.

Key Specifications

ParameterValueUnit
PolarityNPN
TypePower Transistor
Collector-Base Voltage (Vcb)250V
Collector-Emitter Voltage (Vce)250V
Emitter-Base Voltage (Veb)5V
Collector Current (Ic max)15A
Total Power Dissipation (Pd)150W
Transition Frequency (ft)30MHz
DC Current Gain (hFE min)75
Operating Junction Temperature (Tj)-65°C to 150°C
Package StyleTO-3P
Mounting TypeFlange Mount

Key Features

  • Exceptional Safe Operating Area
  • NPN/PNP Gain Matching within 10% from 50 mA to 3 A
  • Excellent Gain Linearity
  • High BVCEO
  • High Frequency
  • Pb-Free and RoHS Compliant

Applications

  • High-End Consumer Audio Products
  • Home Amplifiers
  • Home Receivers
  • Professional Audio Amplifiers
  • Theater and Stadium Sound Systems
  • Public Address Systems (PAs)

Q & A

  1. What is the maximum collector-emitter voltage of the NJW0281G transistor?
    The maximum collector-emitter voltage (Vce) is 250 V.
  2. What is the maximum collector current of the NJW0281G transistor?
    The maximum collector current (Ic max) is 15 A.
  3. What is the total power dissipation of the NJW0281G transistor?
    The total power dissipation (Pd) is 150 W.
  4. What is the transition frequency of the NJW0281G transistor?
    The transition frequency (ft) is 30 MHz.
  5. What is the DC current gain (hFE) of the NJW0281G transistor?
    The minimum DC current gain (hFE) is 75.
  6. What is the operating junction temperature range of the NJW0281G transistor?
    The operating junction temperature range is -65°C to 150°C.
  7. In what package is the NJW0281G transistor available?
    The NJW0281G transistor is available in a TO-3P package.
  8. What mounting type is used for the NJW0281G transistor?
    The mounting type is Flange Mount.
  9. Is the NJW0281G transistor Pb-Free and RoHS compliant?
    Yes, the NJW0281G transistor is Pb-Free and RoHS compliant.
  10. What are some typical applications of the NJW0281G transistor?
    Typical applications include high-end consumer audio products, home amplifiers, home receivers, professional audio amplifiers, theater and stadium sound systems, and public address systems.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):15 A
Voltage - Collector Emitter Breakdown (Max):250 V
Vce Saturation (Max) @ Ib, Ic:1V @ 500mA, 5A
Current - Collector Cutoff (Max):10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:75 @ 3A, 5V
Power - Max:150 W
Frequency - Transition:30MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3, SC-65-3
Supplier Device Package:TO-3P-3L
