NJW1302G
  • Share:

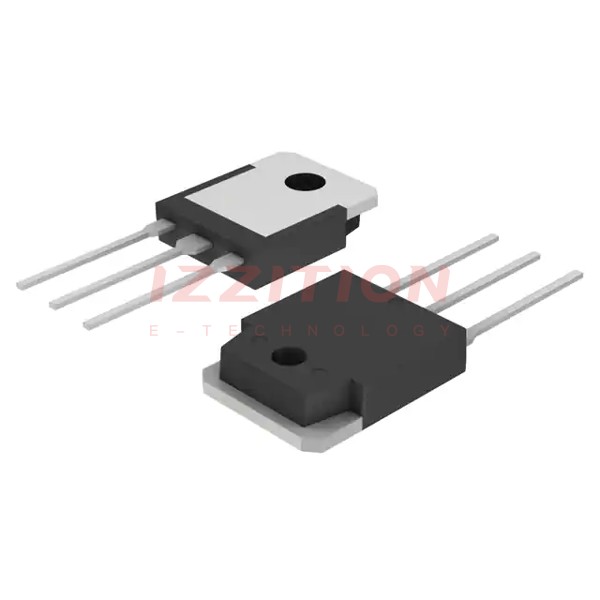

onsemi NJW1302G

Manufacturer No:
NJW1302G
Manufacturer:
onsemi
Package:
Tube
Description:
TRANS PNP 250V 15A TO3P-3L
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NJW1302G is a PNP power transistor manufactured by onsemi, designed for high-power applications such as high-end consumer audio products, professional audio amplifiers, and other linear applications. This transistor is part of a complementary pair with the NJW3281G (NPN), offering symmetrical characteristics and reliable performance at higher powers.

Key Specifications

Rating Symbol Value Unit
Collector-Emitter Voltage VCEO 250 Vdc
Collector-Base Voltage VCBO 250 Vdc
Emitter-Base Voltage VEBO 5.0 Vdc
Collector Current - Continuous IC 15 Adc
Collector Current - Peak ICM 30 Adc
Base Current - Continuous IB 1.6 Adc
Total Power Dissipation @ TC = 25°C PD 200 W
Thermal Resistance, Junction-to-Case RJC 0.625 °C/W
Thermal Resistance, Junction-to-Ambient RJA 40 °C/W
Operating and Storage Junction Temperature Range TJ, Tstg -65 to +150 °C

Key Features

  • Exceptional Safe Operating Area (SOA)
  • NPN/PNP gain matching within 10% from 50 mA to 5 A
  • Excellent gain linearity
  • High BVCEO (Collector-Emitter Voltage)
  • High frequency operation (up to 30 MHz)
  • Pb-free and RoHS compliant
  • Symmetrical characteristics in complementary configurations
  • Accurate reproduction of input signal
  • Greater dynamic range
  • High amplifier bandwidth

Applications

  • High-end consumer audio products (home amplifiers, home receivers)
  • Professional audio amplifiers (theater and stadium sound systems, public address systems)
  • Disk head positioners and other linear applications

Q & A

  1. What is the NJW1302G transistor used for?

    The NJW1302G is used in high-power audio applications, disk head positioners, and other linear applications.

  2. What is the maximum collector-emitter voltage for the NJW1302G?

    The maximum collector-emitter voltage (VCEO) is 250 Vdc.

  3. What is the continuous collector current rating for the NJW1302G?

    The continuous collector current (IC) is 15 Adc.

  4. Is the NJW1302G Pb-free and RoHS compliant?
  5. What is the thermal resistance from junction to case for the NJW1302G?

    The thermal resistance from junction to case (RJC) is 0.625 °C/W.

  6. What are the operating and storage temperature ranges for the NJW1302G?

    The operating and storage junction temperature range is -65 to +150 °C.

  7. What is the gain linearity of the NJW1302G?

    The NJW1302G has excellent gain linearity.

  8. Can the NJW1302G be used in complementary configurations?
  9. What is the maximum power dissipation for the NJW1302G at TC = 25°C?

    The total power dissipation (PD) at TC = 25°C is 200 W.

  10. What is the current-gain bandwidth product of the NJW1302G?

    The current-gain bandwidth product (fT) is up to 30 MHz.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):15 A
Voltage - Collector Emitter Breakdown (Max):250 V
Vce Saturation (Max) @ Ib, Ic:600mV @ 800mA, 8A
Current - Collector Cutoff (Max):50µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:75 @ 3A, 5V
Power - Max:200 W
Frequency - Transition:30MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3, SC-65-3
Supplier Device Package:TO-3P-3L
0 Remaining View Similar

In Stock

$5.00
132

Please send RFQ , we will respond immediately.

Same Series
NJW3281G
NJW3281G
TRANS NPN 250V 15A TO3P-3L

Similar Products

Part Number NJW1302G NJW0302G
Manufacturer onsemi onsemi
Product Status Active Active
Transistor Type PNP PNP
Current - Collector (Ic) (Max) 15 A 15 A
Voltage - Collector Emitter Breakdown (Max) 250 V 250 V
Vce Saturation (Max) @ Ib, Ic 600mV @ 800mA, 8A 1V @ 500mA, 5A
Current - Collector Cutoff (Max) 50µA (ICBO) 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 75 @ 3A, 5V 75 @ 3A, 5V
Power - Max 200 W 150 W
Frequency - Transition 30MHz 30MHz
Operating Temperature -65°C ~ 150°C (TJ) -65°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole
Package / Case TO-3P-3, SC-65-3 TO-3P-3, SC-65-3
Supplier Device Package TO-3P-3L TO-3P-3L
