NJW0302G
  • Share:

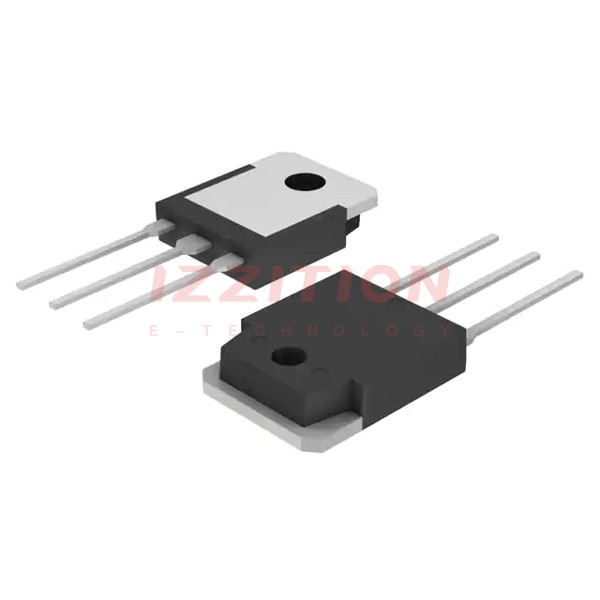

onsemi NJW0302G

Manufacturer No:
NJW0302G
Manufacturer:
onsemi
Package:
Tube
Description:
TRANS PNP 250V 15A TO3P-3L
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NJW0302G is a PNP bipolar power transistor manufactured by onsemi. It is designed for high fidelity audio amplifier output stages and other linear applications. This transistor is known for its superior gain linearity and safe operating area performance, making it an ideal choice for applications requiring reliable and accurate signal reproduction.

Key Specifications

ParameterValueUnit
Transistor PolarityPNP
Collector Emitter Voltage (Vceo)250V
Continuous Collector Current (Ic)15A
Power Dissipation (Pd)150W
DC Current Gain (hFE) Min75
No. of Pins3
Transistor Case StyleTO-3P
Transition Frequency (ft)30MHz
Operating Temperature Max (Tj)150°C

Key Features

  • Complement to NJW0281G
  • Exceptional Safe Operating Area
  • Gain Matching within 10% from 50 mA to 3 A
  • Excellent Gain Linearity
  • High BVCEO
  • High Frequency
  • Reliable Performance at Higher Powers
  • Accurate Reproduction of Input Signal
  • Greater Dynamic Range
  • High Amplifier Bandwidth

Applications

The NJW0302G is primarily designed for high fidelity audio amplifier output stages. It is also suitable for other linear applications, including industrial and signal processing uses.

Q & A

  1. What is the transistor polarity of the NJW0302G?
    The transistor polarity of the NJW0302G is PNP.
  2. What is the maximum collector-emitter voltage of the NJW0302G?
    The maximum collector-emitter voltage (Vceo) is 250 V.
  3. What is the continuous collector current of the NJW0302G?
    The continuous collector current (Ic) is 15 A.
  4. What is the power dissipation of the NJW0302G?
    The power dissipation (Pd) is 150 W.
  5. What is the minimum DC current gain (hFE) of the NJW0302G?
    The minimum DC current gain (hFE) is 75.
  6. What is the transistor case style of the NJW0302G?
    The transistor case style is TO-3P.
  7. What is the transition frequency of the NJW0302G?
    The transition frequency (ft) is 30 MHz.
  8. What is the maximum operating temperature of the NJW0302G?
    The maximum operating temperature (Tj) is 150 °C.
  9. Is the NJW0302G RoHS compliant?
    Yes, the NJW0302G is RoHS compliant.
  10. What are the primary applications of the NJW0302G?
    The primary applications include high fidelity audio amplifier output stages and other linear applications.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):15 A
Voltage - Collector Emitter Breakdown (Max):250 V
Vce Saturation (Max) @ Ib, Ic:1V @ 500mA, 5A
Current - Collector Cutoff (Max):10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:75 @ 3A, 5V
Power - Max:150 W
Frequency - Transition:30MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3, SC-65-3
Supplier Device Package:TO-3P-3L
0 Remaining View Similar

In Stock

$2.92
284

Please send RFQ , we will respond immediately.

Same Series
NJW0281G
NJW0281G
TRANS NPN 250V 15A TO3P-3L

Similar Products

Part Number NJW0302G NJW1302G
Manufacturer onsemi onsemi
Product Status Active Active
Transistor Type PNP PNP
Current - Collector (Ic) (Max) 15 A 15 A
Voltage - Collector Emitter Breakdown (Max) 250 V 250 V
Vce Saturation (Max) @ Ib, Ic 1V @ 500mA, 5A 600mV @ 800mA, 8A
Current - Collector Cutoff (Max) 10µA (ICBO) 50µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 75 @ 3A, 5V 75 @ 3A, 5V
Power - Max 150 W 200 W
Frequency - Transition 30MHz 30MHz
Operating Temperature -65°C ~ 150°C (TJ) -65°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole
Package / Case TO-3P-3, SC-65-3 TO-3P-3, SC-65-3
Supplier Device Package TO-3P-3L TO-3P-3L
