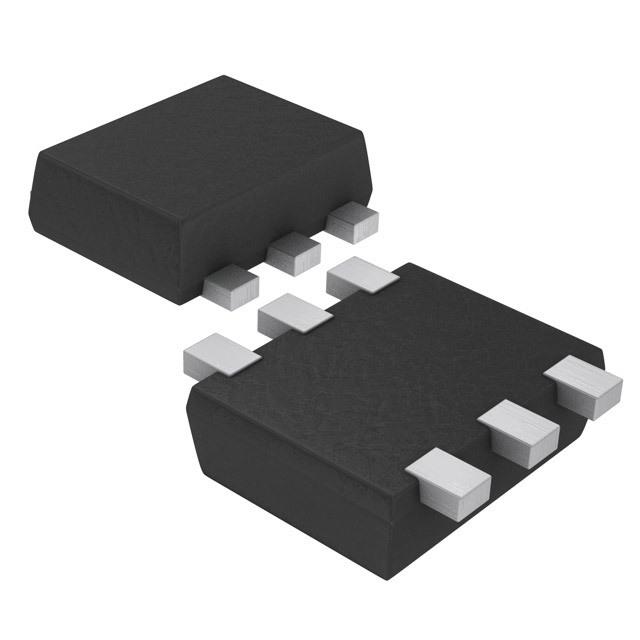

onsemi MCH6421-TL-E

Manufacturer No:
MCH6421-TL-E
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 20V 5.5A 6MCPH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MCH6421-TL-E is a single N-Channel Power MOSFET produced by onsemi, utilizing advanced trench technology to minimize gate charge and reduce on-resistance. This component is designed for general-purpose switching applications and is known for its high efficiency and reliability. The MCH6421-TL-E is packaged in a 6-MCPH (Multi-Chip Power Package) surface mount configuration, making it suitable for a variety of electronic circuits requiring efficient power management.

Key Specifications

ParameterSpecification
Voltage - Rated DC (Vds)20V
Continuous Drain Current (Id)5.5A
On Resistance (Rds(on))38mΩ
Power Dissipation (Max)1.5W (Ta)
Operating Temperature-55°C to 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-MCPH

Key Features

  • Advanced trench technology for low on-resistance and minimal gate charge.
  • High efficiency and reliability in switching applications.
  • Surface mount 6-MCPH package for easy integration into circuit boards.
  • Wide operating temperature range from -55°C to 150°C.
  • Low on-resistance of 38mΩ, reducing energy losses.

Applications

The MCH6421-TL-E is versatile and can be used in various applications, including:

  • Power supplies and DC-DC converters for efficient voltage regulation.
  • Motor control and drive systems for precise current management.
  • Automotive and industrial electronics where high reliability and efficiency are crucial.
  • Consumer electronics requiring compact and efficient power management solutions.

Q & A

  1. What is the maximum voltage rating of the MCH6421-TL-E?
    The maximum voltage rating is 20V.
  2. What is the continuous drain current of the MCH6421-TL-E?
    The continuous drain current is 5.5A.
  3. What is the on-resistance of the MCH6421-TL-E?
    The on-resistance is 38mΩ.
  4. What is the maximum power dissipation of the MCH6421-TL-E?
    The maximum power dissipation is 1.5W (Ta).
  5. What is the operating temperature range of the MCH6421-TL-E?
    The operating temperature range is -55°C to 150°C (TJ).
  6. What type of package does the MCH6421-TL-E use?
    The MCH6421-TL-E uses a 6-MCPH surface mount package.
  7. What are the key features of the MCH6421-TL-E?
    The key features include advanced trench technology, high efficiency, reliability, and a wide operating temperature range.
  8. In what types of applications is the MCH6421-TL-E commonly used?
    The MCH6421-TL-E is commonly used in power supplies, motor control systems, automotive electronics, and consumer electronics.
  9. Why is the MCH6421-TL-E preferred in power management applications?
    The MCH6421-TL-E is preferred due to its low on-resistance, high efficiency, and reliability.
  10. Is the MCH6421-TL-E suitable for high-temperature environments?
    Yes, the MCH6421-TL-E can operate in temperatures up to 150°C (TJ).

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:5.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
Rds On (Max) @ Id, Vgs:38mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id:1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:5.1 nC @ 4.5 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:410 pF @ 10 V
FET Feature:-
Power Dissipation (Max):1.5W (Ta)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-MCPH
Package / Case:6-SMD, Flat Leads
0 Remaining View Similar

In Stock

$0.59
1,489

Please send RFQ , we will respond immediately.

Same Series
MCH6421-TL-W
MCH6421-TL-W
MOSFET N-CH 20V 5.5A MCPH6

Similar Products

Part Number MCH6421-TL-E MCH6424-TL-E MCH6421-TL-W MCH3421-TL-E MCH6321-TL-E
Manufacturer onsemi Sanyo onsemi onsemi onsemi
Product Status Obsolete Active Obsolete Obsolete Obsolete
FET Type N-Channel - N-Channel N-Channel P-Channel
Technology MOSFET (Metal Oxide) - MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20 V - 20 V 100 V 20 V
Current - Continuous Drain (Id) @ 25°C 5.5A (Ta) - 5.5A (Ta) 800mA (Ta) 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V - 1.8V, 4.5V - -
Rds On (Max) @ Id, Vgs 38mOhm @ 2A, 4.5V - 38mOhm @ 2A, 4.5V 890mOhm @ 400mA, 10V 83mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id 1.3V @ 1mA - 1.3V @ 1mA - -
Gate Charge (Qg) (Max) @ Vgs 5.1 nC @ 4.5 V - 5.1 nC @ 4.5 V 4.8 nC @ 10 V 4.6 nC @ 4.5 V
Vgs (Max) ±12V - ±12V - -
Input Capacitance (Ciss) (Max) @ Vds 410 pF @ 10 V - 410 pF @ 10 V 165 pF @ 20 V 375 pF @ 10 V
FET Feature - - - - -
Power Dissipation (Max) 1.5W (Ta) - 1.5W (Ta) 900mW (Ta) -
Operating Temperature 150°C (TJ) - 150°C (TJ) 150°C (TJ) -
Mounting Type Surface Mount - Surface Mount Surface Mount Surface Mount
Supplier Device Package 6-MCPH - SC-88FL/MCPH6 3-MCPH 6-MCPH
Package / Case 6-SMD, Flat Leads - 6-TSSOP, SC-88, SOT-363 3-SMD, Flat Leads 6-SMD, Flat Leads
