FDN8601
  • Share:

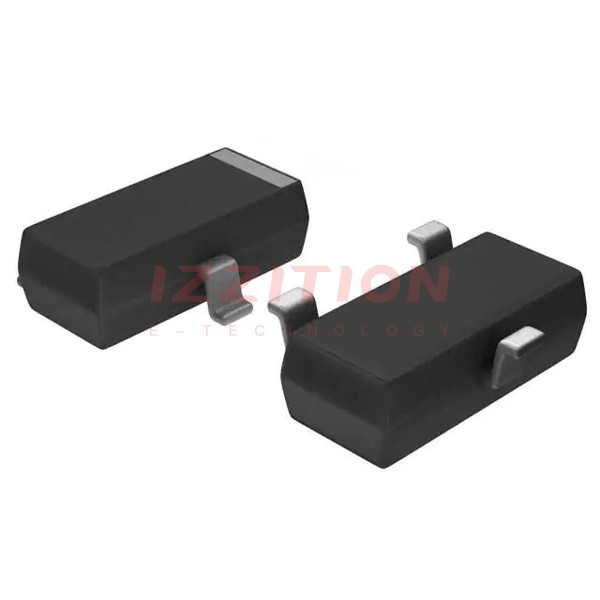

onsemi FDN8601

Manufacturer No:
FDN8601
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 2.7A SUPERSOT3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDN8601 is an N-Channel MOSFET produced by onsemi, utilizing an advanced Power Trench® process. This technology optimizes the device for low on-resistance (rDS(on)), enhanced switching performance, and increased ruggedness. The FDN8601 is designed to meet the demands of various high-performance applications, offering reliable and efficient operation.

Key Specifications

ParameterValue
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Continuous Drain Current (ID)2.7 A
Package Type3-Pin SOT-23

Key Features

  • Low on-resistance (rDS(on)) for efficient operation
  • Enhanced switching performance for high-speed applications
  • High ruggedness to withstand harsh operating conditions
  • Compact 3-Pin SOT-23 package for space-saving designs

Applications

The FDN8601 is suitable for a variety of applications, including:

  • Brushless DC motor control
  • Power management in consumer electronics
  • Automotive systems requiring high reliability and efficiency
  • Industrial control and automation

Q & A

  1. What is the drain to source voltage (Vdss) of the FDN8601?
    The drain to source voltage (Vdss) of the FDN8601 is 100 V.
  2. What is the continuous drain current (ID) of the FDN8601?
    The continuous drain current (ID) of the FDN8601 is 2.7 A.
  3. What package type does the FDN8601 use?
    The FDN8601 uses a 3-Pin SOT-23 package.
  4. What technology is used in the FDN8601?
    The FDN8601 uses MOSFET (Metal Oxide) technology.
  5. What are some key features of the FDN8601?
    The FDN8601 features low on-resistance (rDS(on)), enhanced switching performance, and high ruggedness.
  6. What are some typical applications of the FDN8601?
    The FDN8601 is typically used in brushless DC motor control, power management in consumer electronics, automotive systems, and industrial control and automation.
  7. Who is the manufacturer of the FDN8601?
    The FDN8601 is manufactured by onsemi.
  8. What is the FET type of the FDN8601?
    The FDN8601 is an N-Channel MOSFET.
  9. Is the FDN8601 available in full production?
    Yes, the FDN8601 is in full production.
  10. Where can I find detailed specifications for the FDN8601?
    Detailed specifications for the FDN8601 can be found in the datasheet available on the onsemi website or through distributors like Digi-Key and Mouser.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:2.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On):6V, 10V
Rds On (Max) @ Id, Vgs:109mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:5 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:210 pF @ 50 V
FET Feature:-
Power Dissipation (Max):1.5W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23-3
Package / Case:TO-236-3, SC-59, SOT-23-3
0 Remaining View Similar

In Stock

$0.95
531

Please send RFQ , we will respond immediately.
