FDMC008N08C
  • Share:

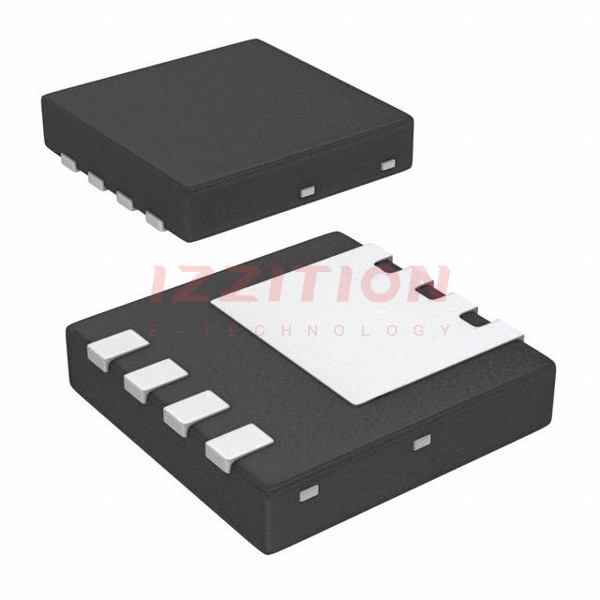

onsemi FDMC008N08C

Manufacturer No:
FDMC008N08C
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CHANNEL 80V 60A 8PQFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDMC008N08C is an N-Channel MOSFET produced by onsemi, utilizing their advanced POWERTRENCH process with Shielded Gate technology. This device is designed to minimize on-state resistance while maintaining superior switching performance and a best-in-class soft body diode. It is suitable for various high-power applications requiring efficient and reliable operation.

Key Specifications

ParameterValueUnit
Drain to Source Voltage (VDS)80V
Gate to Source Voltage (VGS)±20V
Continuous Drain Current (ID) at TC = 25°C60A
Continuous Drain Current (ID) at TC = 100°C38A
Pulsed Drain Current (ID)273A
Power Dissipation (PD) at TC = 25°C57W
Operating and Storage Junction Temperature Range-55 to +150°C
Static Drain to Source On Resistance (RDS(on)) at VGS = 10 V, ID = 21 A7.8mΩ
Static Drain to Source On Resistance (RDS(on)) at VGS = 6 V, ID = 10 A19.3mΩ
Thermal Resistance, Junction to Case (RθJC)2.2°C/W
Thermal Resistance, Junction to Ambient (RθJA)53°C/W

Key Features

  • Shielded Gate MOSFET Technology
  • Low on-state resistance: Max RDS(on) = 7.8 mΩ at VGS = 10 V, ID = 21 A
  • 50% lower Qrr than other MOSFET suppliers, reducing switching noise/EMI
  • MSL1 robust package design
  • 100% UIL tested
  • Pb-free, halide-free, and RoHS compliant

Applications

  • Primary DC-DC MOSFET
  • Synchronous rectifier in DC-DC and AC-DC converters
  • Motor drive applications
  • Solar power systems

Q & A

  1. What is the maximum drain to source voltage (VDS) of the FDMC008N08C? The maximum VDS is 80 V.
  2. What is the continuous drain current (ID) at a case temperature of 25°C? The continuous ID at TC = 25°C is 60 A.
  3. What is the thermal resistance from junction to case (RθJC) of the FDMC008N08C? The RθJC is 2.2 °C/W.
  4. Is the FDMC008N08C RoHS compliant? Yes, it is Pb-free, halide-free, and RoHS compliant.
  5. What are the typical applications of the FDMC008N08C? Typical applications include primary DC-DC MOSFET, synchronous rectifier in DC-DC and AC-DC converters, motor drive, and solar power systems.
  6. What is the maximum power dissipation (PD) at TC = 25°C? The maximum PD at TC = 25°C is 57 W.
  7. What is the gate to source threshold voltage (VGS(th)) of the FDMC008N08C? The VGS(th) is between 2.0 V and 4.0 V.
  8. How does the Shielded Gate technology benefit the FDMC008N08C? The Shielded Gate technology minimizes on-state resistance and maintains superior switching performance with a best-in-class soft body diode.
  9. What is the single pulse avalanche energy (EAS) of the FDMC008N08C? The EAS is 150 mJ.
  10. What package type is the FDMC008N08C available in? The FDMC008N08C is available in a WDFN8 package.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):80 V
Current - Continuous Drain (Id) @ 25°C:60A (Tc)
Drive Voltage (Max Rds On, Min Rds On):6V, 10V
Rds On (Max) @ Id, Vgs:7.8mOhm @ 21A, 10V
Vgs(th) (Max) @ Id:4V @ 120µA
Gate Charge (Qg) (Max) @ Vgs:29 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2150 pF @ 40 V
FET Feature:-
Power Dissipation (Max):57W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-PQFN (3.3x3.3), Power33
Package / Case:8-PowerWDFN
