Overview

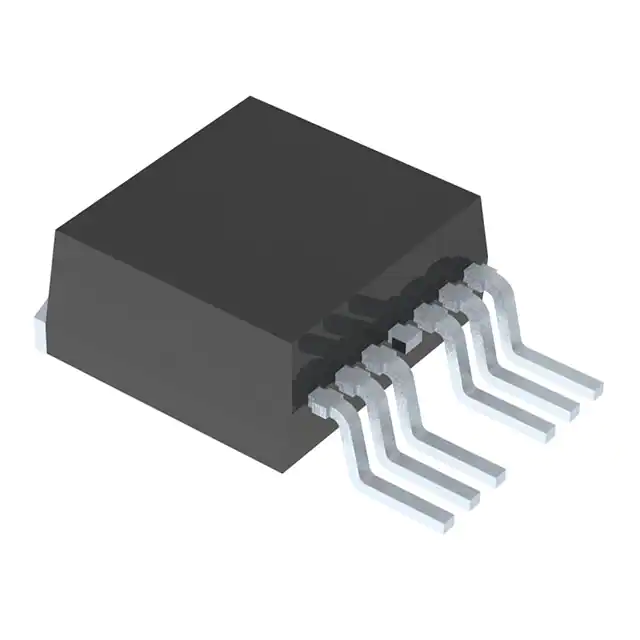

The FDB070AN06A0 is an N-Channel PowerTrench® MOSFET produced by onsemi (formerly Fairchild Semiconductor). This device is designed for high-performance applications requiring low on-resistance and high current handling. Although the component is currently obsolete and not in production, it remains relevant for reference and legacy systems. The FDB070AN06A0 features a drain-to-source voltage (VDSS) of 60 V, a continuous drain current (ID) of up to 80 A, and a typical on-resistance (RDS(ON)) of 6.1 mΩ at VGS = 10 V and ID = 80 A.
Key Specifications
| Parameter | Unit | Min | Max | |
|---|---|---|---|---|
| Drain to Source Voltage (VDSS) | V | - | - | 60 |
| Gate to Source Voltage (VGS) | V | - | - | ±20 |
| Continuous Drain Current (ID) at TC < 97°C, VGS = 10V | A | - | - | 80 |
| Continuous Drain Current (ID) at TA = 25°C, VGS = 10V, RθJA = 43°C/W | A | - | - | 15 |
| Power Dissipation (PD) | W | - | - | 175 |
| Thermal Resistance Junction to Ambient (RθJA) | °C/W | - | - | 43 |
| On-Resistance (RDS(ON)) at VGS = 10V, ID = 80A | mΩ | - | 6.1 | 7 |
| Total Gate Charge (Qg(TOT)) at VGS = 10V | nC | - | 51 | 66 |
| Gate to Source Threshold Voltage (VGS(TH)) | V | 2 | - | 4 |
Key Features
- Low on-resistance (RDS(ON)) of 6.1 mΩ at VGS = 10 V and ID = 80 A.
- Low Miller charge and Qrr for reduced switching losses.
- UIS (Unclamped Inductive Switching) capability for both single pulse and repetitive pulse.
- High current handling capability with a continuous drain current of up to 80 A.
- Operating and storage temperature range of -55°C to 175°C.
Applications
- Motor drives.
- Uninterruptible power supplies (UPS).
- Battery protection circuits.
- Synchronous rectification for ATX, server, and telecom power supplies.
Q & A
- What is the maximum drain-to-source voltage (VDSS) of the FDB070AN06A0?
The maximum drain-to-source voltage (VDSS) is 60 V.
- What is the typical on-resistance (RDS(ON)) of the FDB070AN06A0?
The typical on-resistance (RDS(ON)) is 6.1 mΩ at VGS = 10 V and ID = 80 A.
- What are the operating and storage temperature ranges for the FDB070AN06A0?
The operating and storage temperature ranges are -55°C to 175°C.
- What is the maximum continuous drain current (ID) at TC < 97°C and VGS = 10V?
The maximum continuous drain current (ID) is 80 A.
- What are some typical applications of the FDB070AN06A0?
Typical applications include motor drives, uninterruptible power supplies (UPS), battery protection circuits, and synchronous rectification for ATX, server, and telecom power supplies.
- What is the thermal resistance junction to ambient (RθJA) of the FDB070AN06A0?
The thermal resistance junction to ambient (RθJA) is 43°C/W.
- Does the FDB070AN06A0 have UIS capability?
Yes, the FDB070AN06A0 has UIS (Unclamped Inductive Switching) capability for both single pulse and repetitive pulse.
- What is the total gate charge (Qg(TOT)) at VGS = 10V?
The total gate charge (Qg(TOT)) is typically 51 nC at VGS = 10V.
- Is the FDB070AN06A0 still in production?
No, the FDB070AN06A0 is obsolete and not in production.
- What package type is the FDB070AN06A0 available in?
The FDB070AN06A0 is available in the D2-PAK package.
