Overview

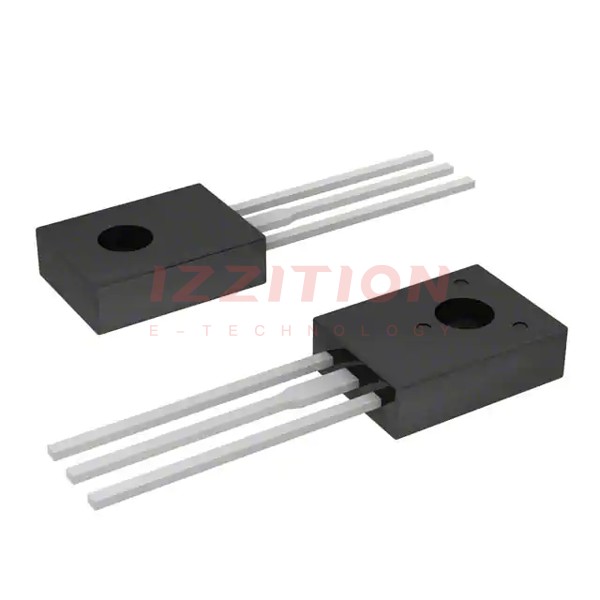

The onsemi BD682STU is a PNP Darlington Bipolar Power Transistor designed for high-current applications. It is part of the Darlington transistor family, known for its high DC current gain and monolithic construction. This transistor is particularly suited for use as output devices in complementary general-purpose amplifier applications.
Key Specifications
| Parameter | Value |
|---|---|
| Collector-Base Voltage (VCBO) | 100 V |
| Emitter-Base Voltage (VEBO) | 5 V |
| Maximum DC Collector Current | 4 A |
| Maximum Collector Cut-off Current | 200 μA |
| DC Current Gain (hFE) | 750 (Min) @ IC = 1.5 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.5 V |
| Package Type | TO-126-3 |
| Power Dissipation | 14 W |
Key Features
- High DC current gain (hFE = 750 Min @ IC = 1.5 A)
- Monolithic construction for reliability and performance
- PNP Darlington configuration for high-current handling
- Maximum collector current of 4 A and collector-base voltage of 100 V
- Available in Pb-Free packages
- ROHS compliant
Applications
The onsemi BD682STU is suitable for a variety of high-current applications, including:
- General-purpose amplifier circuits
- Power switching and control circuits
- Motor control and driver circuits
- High-current driver applications in industrial and automotive systems
