BC847CDW1T1H
  • Share:

onsemi BC847CDW1T1H

Manufacturer No:
BC847CDW1T1H
Manufacturer:
onsemi
Package:
Bulk
Description:
SS SC88 GP XSTR NPN 45V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

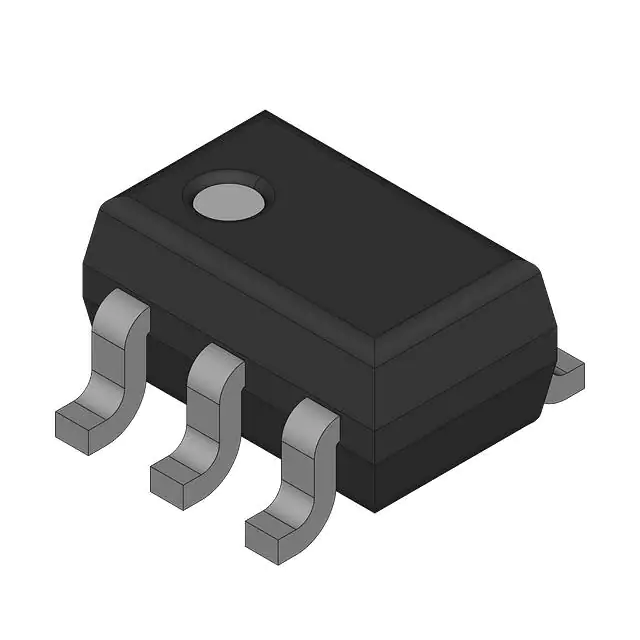

The BC847CDW1T1H is a general-purpose NPN epitaxial silicon transistor produced by onsemi. This transistor is part of the BC847 series, which is designed for a wide range of applications including switching and amplifier circuits. It is housed in the SOT-363/SC-88 package, making it suitable for low power surface mount applications.

Key Specifications

Parameter Symbol Min Typ Max Unit
Collector-Base Voltage VCBO - - 50 V
Collector-Emitter Voltage VCEO - - 45 V
Emitter-Base Voltage VEBO - - 6 V
Collector Current (DC) IC - - 100 mA
Junction Temperature TJ - - 150 °C
Storage Temperature Range TSTG -65 - 150 °C
Power Dissipation PD - - 310 mW
Thermal Resistance, Junction-to-Ambient RθJA - - 403 °C/W
DC Current Gain (hFE) hFE 200 420 800 -
Collector-Emitter Saturation Voltage VCE(sat) 0.1 - 0.6 mV
Base-Emitter Saturation Voltage VBE(sat) 0.7 - 0.9 mV

Key Features

  • General-purpose NPN epitaxial silicon transistor suitable for switching and amplifier applications.
  • Low noise characteristics, particularly in the BC850 variant.
  • Suitable for automatic insertion in thick and thin-film circuits.
  • Housed in the SOT-363/SC-88 package, ideal for low power surface mount applications.
  • High DC current gain (hFE) with classifications ranging from 200 to 800.
  • Low collector-emitter and base-emitter saturation voltages.

Applications

  • Switching circuits: The BC847CDW1T1H is suitable for various switching applications due to its high current gain and low saturation voltages.
  • Amplifier circuits: It is designed for general-purpose amplifier applications, making it versatile in audio, signal processing, and other electronic circuits.
  • Automotive and industrial control systems: Its robust specifications make it suitable for use in automotive and industrial control systems.
  • Consumer electronics: It can be used in a variety of consumer electronic devices requiring reliable and efficient transistor performance.

Q & A

  1. What is the maximum collector-emitter voltage (VCEO) for the BC847CDW1T1H transistor?

    The maximum collector-emitter voltage (VCEO) for the BC847CDW1T1H transistor is 45 V.

  2. What is the typical DC current gain (hFE) for this transistor?

    The typical DC current gain (hFE) for the BC847CDW1T1H transistor ranges from 200 to 800, depending on the classification.

  3. What is the maximum collector current (IC) for this transistor?

    The maximum collector current (IC) for the BC847CDW1T1H transistor is 100 mA.

  4. What is the thermal resistance, junction-to-ambient (RθJA), for this transistor?

    The thermal resistance, junction-to-ambient (RθJA), for the BC847CDW1T1H transistor is 403 °C/W.

  5. What package type is the BC847CDW1T1H transistor housed in?

    The BC847CDW1T1H transistor is housed in the SOT-363/SC-88 package.

  6. What are the typical applications for the BC847CDW1T1H transistor?

    The BC847CDW1T1H transistor is typically used in switching and amplifier applications, as well as in automotive, industrial, and consumer electronics.

  7. What is the maximum junction temperature (TJ) for this transistor?

    The maximum junction temperature (TJ) for the BC847CDW1T1H transistor is 150 °C.

  8. What is the storage temperature range (TSTG) for this transistor?

    The storage temperature range (TSTG) for the BC847CDW1T1H transistor is -65 to +150 °C.

  9. What is the power dissipation (PD) for this transistor?

    The power dissipation (PD) for the BC847CDW1T1H transistor is 310 mW.

  10. What are the collector-emitter and base-emitter saturation voltages for this transistor?

    The collector-emitter saturation voltage (VCE(sat)) is typically 0.1 to 0.6 mV, and the base-emitter saturation voltage (VBE(sat)) is typically 0.7 to 0.9 mV.

  11. Is the BC847CDW1T1H transistor suitable for low noise applications?

    Yes, the BC847CDW1T1H transistor, particularly the BC850 variant, is known for its low noise characteristics.
