6HP04MH-TL-W
  • Share:

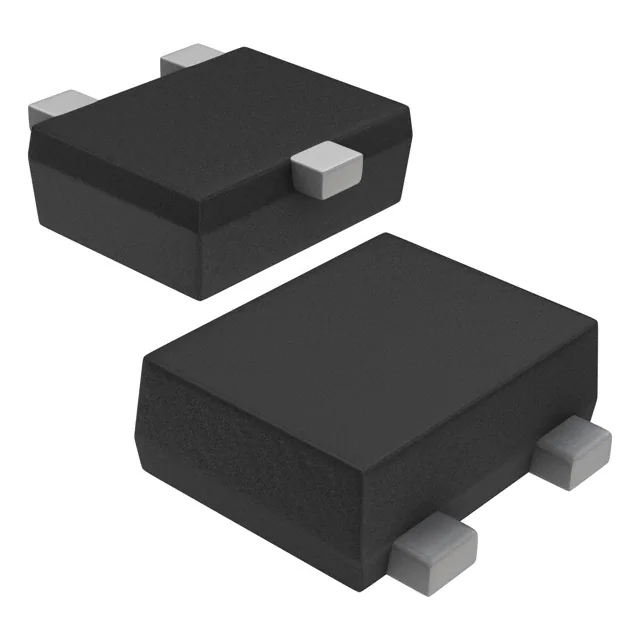

onsemi 6HP04MH-TL-W

Manufacturer No:
6HP04MH-TL-W
Manufacturer:
onsemi
Package:
Cut Tape (CT)
Description:
MOSFET P-CH 60V 370MA SC70FL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 6HP04MH-TL-W is a P-Channel MOSFET produced by onsemi. This surface-mount device is part of the SC-70FL/MCPH3 package family and is designed for a variety of applications requiring low power consumption and high efficiency. The MOSFET is known for its compact size and robust performance, making it suitable for use in space-constrained designs.

Key Specifications

ParameterValue
Voltage Rating (Vds)-60V
Continuous Drain Current (Id)-0.37A (Ta = 25°C)
Maximum Drain Current (Idm)-1.48A
Power Dissipation (Pd)0.6W (Ta = 25°C)
Package TypeSC-70FL/MCPH3

Key Features

  • Compact SC-70FL/MCPH3 package for space-saving designs
  • Low power consumption and high efficiency
  • High voltage rating of -60V
  • Continuous drain current of -0.37A at 25°C
  • Maximum drain current of -1.48A
  • Low thermal resistance for improved heat dissipation

Applications

The 6HP04MH-TL-W P-Channel MOSFET is suitable for a wide range of applications, including but not limited to:

  • Power management and switching circuits
  • Audio and video equipment
  • Automotive systems
  • Consumer electronics
  • Industrial control systems

Q & A

  1. What is the voltage rating of the 6HP04MH-TL-W MOSFET?
    The voltage rating of the 6HP04MH-TL-W MOSFET is -60V.
  2. What is the continuous drain current of the 6HP04MH-TL-W at 25°C?
    The continuous drain current is -0.37A at 25°C.
  3. What is the maximum drain current of the 6HP04MH-TL-W?
    The maximum drain current is -1.48A.
  4. What is the power dissipation of the 6HP04MH-TL-W at 25°C?
    The power dissipation is 0.6W at 25°C.
  5. What package type does the 6HP04MH-TL-W use?
    The 6HP04MH-TL-W uses the SC-70FL/MCPH3 package.
  6. What are some common applications for the 6HP04MH-TL-W?
    Common applications include power management, audio and video equipment, automotive systems, consumer electronics, and industrial control systems.
  7. Where can I find the datasheet for the 6HP04MH-TL-W?
    The datasheet can be found on the official onsemi website or through distributors like Mouser, Digi-Key, and Xecor.
  8. Is the 6HP04MH-TL-W suitable for high-power applications?
    No, the 6HP04MH-TL-W is designed for low to moderate power applications due to its power dissipation and current ratings.
  9. What are the benefits of using the SC-70FL/MCPH3 package?
    The SC-70FL/MCPH3 package offers a compact size, which is beneficial for space-constrained designs, and it also has low thermal resistance for improved heat dissipation.
  10. Can I use the 6HP04MH-TL-W in automotive applications?
    Yes, the 6HP04MH-TL-W can be used in automotive systems due to its robust performance and suitable specifications.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:370mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):4V, 10V
Rds On (Max) @ Id, Vgs:4.2Ohm @ 190mA, 10V
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:0.84 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:24.1 pF @ 20 V
FET Feature:-
Power Dissipation (Max):600mW (Ta)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SC-70FL/MCPH3
Package / Case:SOT-23-3 Flat Leads
0 Remaining View Similar

In Stock

-
544

Please send RFQ , we will respond immediately.

Similar Products

Part Number 6HP04MH-TL-W 6HP04CH-TL-W
Manufacturer onsemi onsemi
Product Status Discontinued at Digi-Key Obsolete
FET Type P-Channel P-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V 60 V
Current - Continuous Drain (Id) @ 25°C 370mA (Ta) 370mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4V, 10V 4V, 10V
Rds On (Max) @ Id, Vgs 4.2Ohm @ 190mA, 10V 4.2Ohm @ 190mA, 10V
Vgs(th) (Max) @ Id - -
Gate Charge (Qg) (Max) @ Vgs 0.84 nC @ 10 V 0.84 nC @ 10 V
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 24.1 pF @ 20 V 24.1 pF @ 20 V
FET Feature - -
Power Dissipation (Max) 600mW (Ta) -
Operating Temperature 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package SC-70FL/MCPH3 3-CPH
Package / Case SOT-23-3 Flat Leads TO-236-3, SC-59, SOT-23-3
