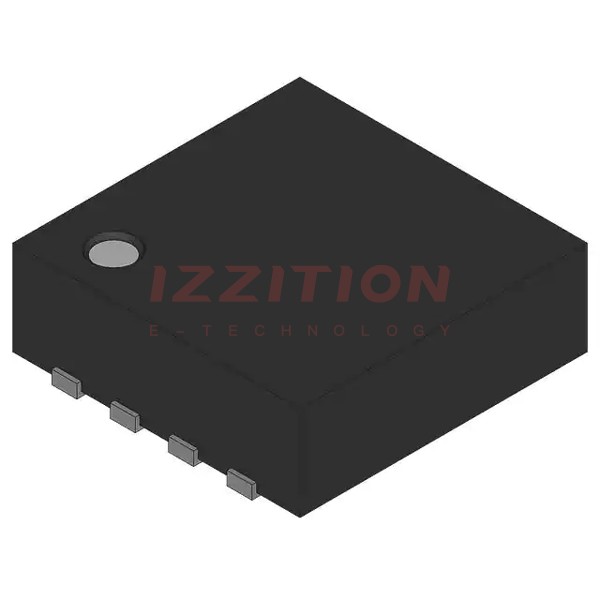

NXP USA Inc. PML260SN,118

Manufacturer No:
PML260SN,118
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
MOSFET N-CH 200V 8.8A DFN3333-8
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PML260SN,118 is an N-Channel MOSFET produced by Nexperia USA Inc. This device is designed for high-performance applications requiring efficient power management. It features a surface mount DFN3333-8 package, making it suitable for compact and high-density designs.

Key Specifications

ParameterValueUnit
Vdss (Drain-Source Voltage)200V
Id (Continuous Drain Current at Tc=25°C)8.8A
Ptot (Total Power Dissipation at Tc=25°C)50W
Vgs(th) (Threshold Voltage)1.5-3.5V
Rds(on) (On-State Resistance)Typically 12 mΩmΩ
Package TypeDFN3333-8

Key Features

  • N-Channel MOSFET with high drain current capability of 8.8 A at Tc=25°C.
  • High voltage rating of 200 V, suitable for various power management applications.
  • Low on-state resistance (Rds(on)) of typically 12 mΩ, ensuring efficient power handling.
  • Compact DFN3333-8 surface mount package, ideal for space-constrained designs.
  • RoHS compliant and lead-free, aligning with environmental regulations.

Applications

The PML260SN,118 is versatile and can be used in a variety of applications, including but not limited to:

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Industrial automation and control systems.
  • Automotive systems requiring high reliability and efficiency.
  • Consumer electronics where compact and efficient power management is crucial.

Q & A

  1. What is the maximum drain-source voltage (Vdss) of the PML260SN,118?
    The maximum drain-source voltage (Vdss) is 200 V.
  2. What is the continuous drain current (Id) at Tc=25°C?
    The continuous drain current (Id) at Tc=25°C is 8.8 A.
  3. What is the total power dissipation (Ptot) at Tc=25°C?
    The total power dissipation (Ptot) at Tc=25°C is 50 W.
  4. What is the typical on-state resistance (Rds(on)) of the PML260SN,118?
    The typical on-state resistance (Rds(on)) is 12 mΩ.
  5. What type of package does the PML260SN,118 use?
    The PML260SN,118 uses a DFN3333-8 surface mount package.
  6. Is the PML260SN,118 RoHS compliant?
    Yes, the PML260SN,118 is RoHS compliant and lead-free.
  7. What are some common applications for the PML260SN,118?
    Common applications include power supplies, motor control systems, industrial automation, automotive systems, and consumer electronics.
  8. What is the threshold voltage (Vgs(th)) range of the PML260SN,118?
    The threshold voltage (Vgs(th)) range is 1.5-3.5 V.
  9. Is the PML260SN,118 suitable for high-density designs?
    Yes, the compact DFN3333-8 package makes it suitable for high-density designs.
  10. Where can I find detailed specifications and datasheets for the PML260SN,118?
    Detailed specifications and datasheets can be found on the Nexperia website, Digi-Key, and other authorized distributors.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):200 V
Current - Continuous Drain (Id) @ 25°C:8.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On):6V, 10V
Rds On (Max) @ Id, Vgs:294mOhm @ 2.6A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:13.3 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:657 pF @ 30 V
FET Feature:-
Power Dissipation (Max):50W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DFN3333-8
Package / Case:8-VDFN Exposed Pad
0 Remaining View Similar

In Stock

$0.32
1,562

Please send RFQ , we will respond immediately.
