MRF6V2010NR1
  • Share:

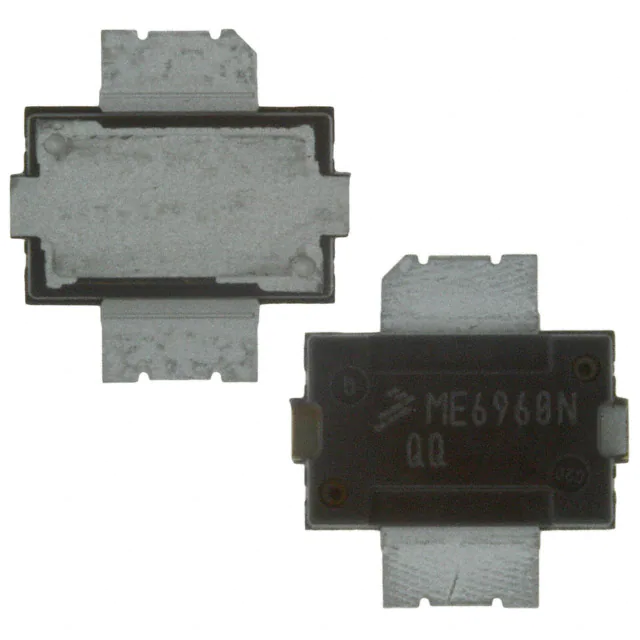

NXP USA Inc. MRF6V2010NR1

Manufacturer No:
MRF6V2010NR1
Manufacturer:
NXP USA Inc.
Package:
Tape & Reel (TR)
Description:
FET RF 110V 220MHZ TO270-2
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MRF6V2010NR1 is a high-performance RF power MOSFET manufactured by NXP USA Inc. This device is designed primarily for continuous wave (CW) large-signal output and driver applications, operating within the frequency range of 10 to 450 MHz. It is particularly suited for industrial, medical, and scientific applications due to its robust specifications and reliability.

Key Specifications

ParameterValue
Frequency Range10 - 450 MHz
Output Power (Pout)10 W (at 220 MHz, VDD = 50 Vdc)
Power Gain23.9 dB (at 220 MHz, VDD = 50 Vdc)
Drain Efficiency62% (at 220 MHz, VDD = 50 Vdc)
Drain-Source Voltage (VDS)Up to 50 Vdc
Drain Current (IDQ)30 mA
Package / CaseTO-270AA
VSWR Capability10:1 @ 50 Vdc, 220 MHz, 10 W CW output power

Key Features

  • Characterized with series equivalent large-signal impedance parameters.
  • Qualified up to a maximum of 50 VDD operation.
  • Integrated ESD protection.
  • Capable of handling high VSWR (Voltage Standing Wave Ratio).
  • 225°C capable plastic package.
  • Designed for pulsed wideband large-signal output and driver applications.

Applications

The MRF6V2010NR1 is suitable for various high-power RF applications, including:

  • Industrial RF systems.
  • Medical devices requiring high RF power.
  • Scientific instruments and research equipment.
  • Broadcasting and communication systems.

Q & A

  1. What is the frequency range of the MRF6V2010NR1? The MRF6V2010NR1 operates within the frequency range of 10 to 450 MHz.
  2. What is the maximum output power of the MRF6V2010NR1? The maximum output power is 10 W at 220 MHz with VDD = 50 Vdc.
  3. What is the power gain of the MRF6V2010NR1 at 220 MHz? The power gain is 23.9 dB at 220 MHz with VDD = 50 Vdc.
  4. What is the drain efficiency of the MRF6V2010NR1 at 220 MHz? The drain efficiency is 62% at 220 MHz with VDD = 50 Vdc.
  5. What is the maximum drain-source voltage (VDS) for the MRF6V2010NR1? The maximum VDS is up to 50 Vdc.
  6. What package type is the MRF6V2010NR1 available in? The MRF6V2010NR1 is available in the TO-270AA package.
  7. Does the MRF6V2010NR1 have integrated ESD protection? Yes, the MRF6V2010NR1 has integrated ESD protection.
  8. What is the VSWR capability of the MRF6V2010NR1? The device can handle a 10:1 VSWR at 50 Vdc, 220 MHz, and 10 W CW output power.
  9. What are the special considerations for mounting the MRF6V2010NR1? Special considerations must be followed in board design and mounting to avoid exceeding the maximum allowable operating junction temperature. Refer to NXP Application Notes AN3263 and AN1907 for proper mounting methods.
  10. What are some typical applications for the MRF6V2010NR1? Typical applications include industrial RF systems, medical devices, scientific instruments, and broadcasting and communication systems.

Product Attributes

Transistor Type:LDMOS
Frequency:220MHz
Gain:23.9dB
Voltage - Test:50 V
Current Rating (Amps):-
Noise Figure:-
Current - Test:30 mA
Power - Output:10W
Voltage - Rated:110 V
Package / Case:TO-270AA
Supplier Device Package:TO-270-2
0 Remaining View Similar

In Stock

-
387

Please send RFQ , we will respond immediately.

Same Series
MRF6V2010NBR5
MRF6V2010NBR5
FET RF 110V 220MHZ TO-272-2
MRF6V2010NBR1
MRF6V2010NBR1
FET RF 110V 220MHZ TO272-2
MRF6V2010GNR1
MRF6V2010GNR1
FET RF 110V 220MHZ TO-270G-2
MRF6V2010GNR5
MRF6V2010GNR5
FET RF 110V 220MHZ TO-270G-2

Similar Products

Part Number MRF6V2010NR1 MRF6V2010NBR1
Manufacturer NXP USA Inc. NXP USA Inc.
Product Status Obsolete Obsolete
Transistor Type LDMOS LDMOS
Frequency 220MHz 220MHz
Gain 23.9dB 23.9dB
Voltage - Test 50 V 50 V
Current Rating (Amps) - -
Noise Figure - -
Current - Test 30 mA 30 mA
Power - Output 10W 10W
Voltage - Rated 110 V 110 V
Package / Case TO-270AA TO-272BC
Supplier Device Package TO-270-2 TO-272-2
