NXP USA Inc. BUK9875-100A/CU115

Manufacturer No:
BUK9875-100A/CU115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
N-CHANNEL POWER MOSFET
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

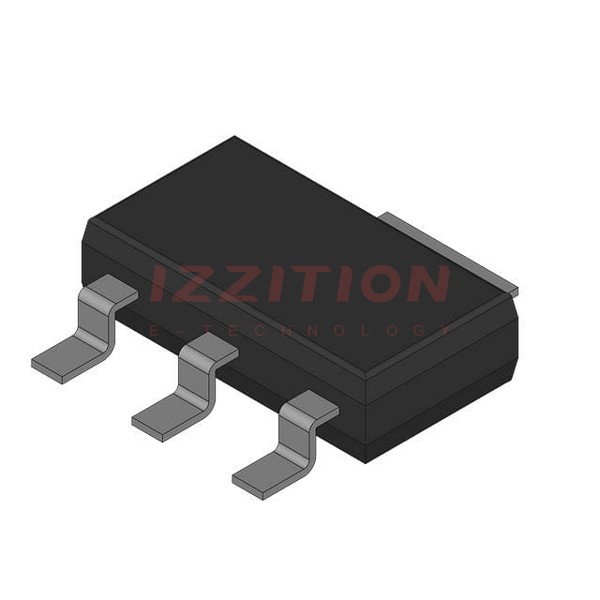

The BUK9875-100A/CU115 is an N-channel TrenchMOS logic level Field-Effect Transistor (FET) produced by Nexperia (previously part of NXP Semiconductors). This device is designed using TrenchMOS technology and is packaged in a SC-73 (SOT223) package. It is suitable for a wide range of applications due to its high efficiency and reliability.

Key Specifications

Parameter Value Unit
Type Number BUK9875-100A
Package SC-73 (SOT223)
Channel Type N-channel
VDS (max) 100 V
ID (max) @ 25°C 7 A
RDSon (max) @ VGS = 10 V 72 mΩ
RDSon (max) @ VGS = 5 V 75 mΩ
RDSon (max) @ VGS = 4.5 V @ 25°C 84 mΩ
Tj (max) 150 °C
Ptot (max) 8 W
Qr (typ) 220 nC
VGSth (typ) 1.5 V
Automotive Qualified Yes
Ciss (typ) 1270 pF
Coss (typ) 140 pF

Key Features

  • TrenchMOS Technology: Enhances performance with lower RDSon and improved switching characteristics.
  • Logic Level Operation: Compatible with standard logic levels, making it easy to integrate into various circuits.
  • High Efficiency: Low on-resistance and minimal switching losses contribute to high efficiency in power management applications.
  • Reliability: Qualified for automotive use, ensuring robust performance under demanding conditions.
  • Compact Package: SC-73 (SOT223) package is space-efficient and suitable for surface mount applications.

Applications

  • Automotive Systems: Suitable for various automotive applications due to its automotive qualification and robust performance.
  • Industrial Power Management: Used in industrial power supplies, motor control, and other high-power applications.
  • Consumer Electronics: Found in consumer electronics such as power adapters, battery chargers, and other power management circuits.
  • Computing and Server Systems: Used in power supply units (PSUs) and other power management components in computing and server systems.

Q & A

  1. What is the maximum drain-source voltage (VDS) of the BUK9875-100A?

    The maximum drain-source voltage (VDS) is 100 V.

  2. What is the maximum continuous drain current (ID) at 25°C?

    The maximum continuous drain current (ID) at 25°C is 7 A.

  3. What is the typical threshold voltage (VGSth)?

    The typical threshold voltage (VGSth) is 1.5 V.

  4. Is the BUK9875-100A automotive qualified?

    Yes, the BUK9875-100A is automotive qualified.

  5. What is the maximum on-resistance (RDSon) at VGS = 10 V?

    The maximum on-resistance (RDSon) at VGS = 10 V is 72 mΩ.

  6. What is the package type of the BUK9875-100A?

    The package type is SC-73 (SOT223).

  7. What is the maximum junction temperature (Tj)?

    The maximum junction temperature (Tj) is 150°C.

  8. What is the typical input capacitance (Ciss)?

    The typical input capacitance (Ciss) is 1270 pF.

  9. What is the typical output capacitance (Coss)?

    The typical output capacitance (Coss) is 140 pF.

  10. What technology is used in the BUK9875-100A?

    The BUK9875-100A uses TrenchMOS technology.
