BUK9875-100A/C1115
  • Share:

NXP USA Inc. BUK9875-100A/C1115

Manufacturer No:
BUK9875-100A/C1115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
N-CHANNEL POWER MOSFET
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

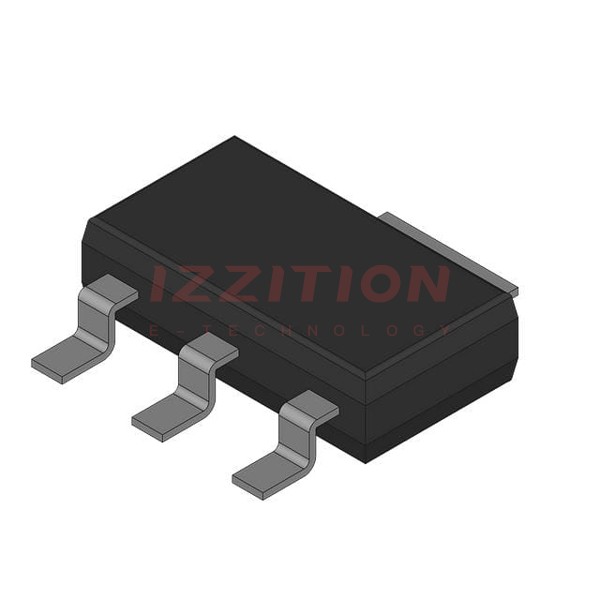

The BUK9875-100A/C1115 is an N-channel TrenchMOS logic level Field-Effect Transistor (FET) produced by NXP USA Inc., now part of Nexperia. This device is designed using TrenchMOS technology, which offers high efficiency and reliability. The BUK9875-100A/C1115 is packaged in a plastic surface-mounted SC-73 (SOT223) package, which provides an increased heatsink for better thermal performance.

This MOSFET is characterized by its low on-state resistance and high current handling capabilities, making it suitable for a variety of applications requiring high power and efficiency.

Key Specifications

Parameter Conditions Min Typ Max Unit
VDS (Drain-Source Voltage) Tj ≥ 25 °C; Tj ≤ 150 °C - - 100 V
VGS (Gate-Source Voltage) - -10 - 10 V
ID (Continuous Drain Current) Tsp = 25 °C; VGS = 5 V - - 7 A
ID (Continuous Drain Current at Tsp = 100 °C) VGS = 5 V - - 4 A
Ptot (Total Power Dissipation) Tsp = 25 °C - - 8 W
Tj (Junction Temperature) - -55 - 150 °C
RDSon (Drain-Source On-State Resistance at VGS = 10 V) - - - 72 mΩ
VGS(th) (Gate-Source Threshold Voltage) ID = 1 mA; VDS = VGS; Tj = 25 °C - 1.5 - V

Key Features

  • TrenchMOS Technology: Offers low on-state resistance and high efficiency.
  • Logic Level Operation: Compatible with standard logic levels, making it easy to integrate into various circuits.
  • High Current Handling: Capable of handling up to 7 A of continuous drain current at 25 °C.
  • Low RDSon: On-state resistance as low as 72 mΩ at VGS = 10 V.
  • Wide Operating Temperature Range: From -55 °C to 150 °C, suitable for diverse environmental conditions.
  • SC-73 (SOT223) Package: Provides an increased heatsink for better thermal performance.

Applications

The BUK9875-100A/C1115 is versatile and can be used in a variety of applications, including:

  • Automotive Systems: Suitable for use in automotive electronics due to its robustness and wide operating temperature range.
  • Industrial Power Systems: Used in power supplies, motor control, and other industrial power applications requiring high efficiency and reliability.
  • Consumer Electronics: Found in power management circuits of consumer electronics such as laptops, smartphones, and other portable devices.
  • Power Management: Ideal for DC-DC converters, battery management systems, and other power management solutions.

Q & A

  1. What is the maximum drain-source voltage (VDS) of the BUK9875-100A/C1115?

    The maximum drain-source voltage (VDS) is 100 V.

  2. What is the continuous drain current (ID) at 25 °C?

    The continuous drain current (ID) at 25 °C is 7 A.

  3. What is the typical gate-source threshold voltage (VGS(th))?

    The typical gate-source threshold voltage (VGS(th)) is 1.5 V.

  4. What is the maximum on-state resistance (RDSon) at VGS = 10 V?

    The maximum on-state resistance (RDSon) at VGS = 10 V is 72 mΩ.

  5. What is the operating temperature range of the BUK9875-100A/C1115?

    The operating temperature range is from -55 °C to 150 °C.

  6. What package type is used for the BUK9875-100A/C1115?

    The device is packaged in a plastic surface-mounted SC-73 (SOT223) package.

  7. Is the BUK9875-100A/C1115 automotive qualified?
  8. What is the total power dissipation (Ptot) at 25 °C?

    The total power dissipation (Ptot) at 25 °C is 8 W.

  9. What is the peak drain current (IDM)?

    The peak drain current (IDM) is 28 A for pulses ≤ 10 µs.

  10. What is the input capacitance (Ciss)?

    The input capacitance (Ciss) is typically 1270 pF.

Product Attributes

FET Type:-
Technology:-
Drain to Source Voltage (Vdss):-
Current - Continuous Drain (Id) @ 25°C:-
Drive Voltage (Max Rds On, Min Rds On):-
Rds On (Max) @ Id, Vgs:-
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):-
Input Capacitance (Ciss) (Max) @ Vds:-
FET Feature:-
Power Dissipation (Max):-
Operating Temperature:-
Mounting Type:-
Supplier Device Package:-
Package / Case:-
0 Remaining View Similar

In Stock

-
52

Please send RFQ , we will respond immediately.
