BUK9875-100A,115
  • Share:

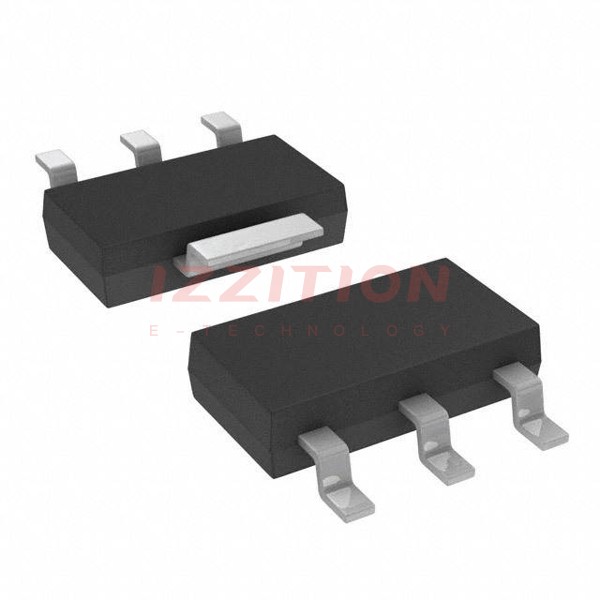

NXP USA Inc. BUK9875-100A,115

Manufacturer No:
BUK9875-100A,115
Manufacturer:
NXP USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 7A SOT-223
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK9875-100A,115 is a logic level N-channel enhancement mode Field-Effect Transistor (FET) produced by Nexperia, which was previously part of NXP Semiconductors. This MOSFET utilizes TrenchMOS technology and is packaged in a plastic SOT223 (SC-73) package. It is designed for high efficiency and reliability, making it suitable for a wide range of applications across various industries.

Key Specifications

ParameterValue
Type numberBUK9875-100A
PackageSOT223 (SC-73)
Channel typeN-channel
VDS [max]100 V
RDSon [max] @ VGS = 10 V72 mΩ
RDSon [max] @ VGS = 5 V75 mΩ
RDSon [max] @ VGS = 4.5 V; @25°C84 mΩ
Tj [max]150°C
ID [max]7 A
Ptot [max]8 W
Qr [typ]220 nC
VGSth [typ]1.5 V
Automotive qualifiedYes
Ciss [typ]1270 pF
Coss [typ]140 pF

Key Features

  • Logic level gate drive for easy interface with microcontrollers and other logic circuits.
  • TrenchMOS technology for low on-state resistance and high efficiency.
  • High current capability of up to 7 A.
  • Low thermal resistance due to the SOT223 package.
  • Automotive qualified, ensuring reliability in demanding environments.
  • Compliant with RoHS regulations.

Applications

The BUK9875-100A,115 is versatile and can be used in various applications across different industries, including:

  • Automotive systems: For power management and control in vehicles.
  • Industrial control: In motor control, power supplies, and other industrial automation systems.
  • Power management: In DC-DC converters, battery management systems, and other power management circuits.
  • Consumer electronics: In power supplies, motor control, and other consumer electronic devices.

Q & A

  1. What is the maximum drain-source voltage (VDS) of the BUK9875-100A,115?
    The maximum drain-source voltage is 100 V.
  2. What is the typical on-state resistance (RDSon) at VGS = 10 V?
    The typical on-state resistance at VGS = 10 V is 72 mΩ.
  3. What is the maximum continuous drain current (ID)?
    The maximum continuous drain current is 7 A.
  4. Is the BUK9875-100A,115 automotive qualified?
    Yes, it is automotive qualified.
  5. What is the package type of the BUK9875-100A,115?
    The package type is SOT223 (SC-73).
  6. What is the maximum junction temperature (Tj)?
    The maximum junction temperature is 150°C.
  7. What is the typical gate-source threshold voltage (VGSth)?
    The typical gate-source threshold voltage is 1.5 V.
  8. Is the BUK9875-100A,115 RoHS compliant?
    Yes, it is RoHS compliant.
  9. What are some common applications of the BUK9875-100A,115?
    Common applications include automotive systems, industrial control, power management, and consumer electronics.
  10. Where can I purchase the BUK9875-100A,115?
    You can purchase it from various distributors such as Nexperia's official distributors, Mouser, and other electronic component suppliers.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:7A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:72mOhm @ 8A, 10V
Vgs(th) (Max) @ Id:2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±10V
Input Capacitance (Ciss) (Max) @ Vds:1690 pF @ 25 V
FET Feature:-
Power Dissipation (Max):8W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SC-73
Package / Case:TO-261-4, TO-261AA
0 Remaining View Similar

In Stock

-
488

Please send RFQ , we will respond immediately.
