Overview

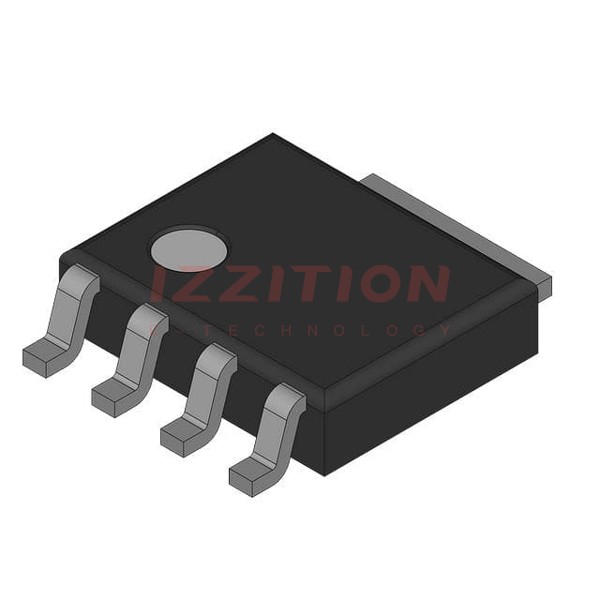

The BUK7Y22-100E115 is a standard level N-channel MOSFET produced by NXP USA Inc. This device is part of NXP's TrenchMOS technology family and is packaged in the LFPAK56 (Power SO8) package. It has been designed and qualified to the AEC Q101 standard, ensuring high reliability and performance in automotive and industrial applications.
Key Specifications
| Parameter | Value |
|---|---|
| VDS (Max) | 100 V |
| RDS(on) (Max) @ VGS = 10 V | 22 mΩ |
| RDS(on) (Max) @ VGS = 4.5 V | - |
| ID (Max) | 100 A |
| QG(tot) (Typ) | - |
| Package | LFPAK56 (Power SO8) |
| Qualification Standard | AEC Q101 |
Key Features
- Standard level N-channel MOSFET using TrenchMOS technology.
- Low on-state resistance (RDS(on)) for high efficiency and low thermal losses.
- High current capability up to 100 A.
- Wide safe operating area (SOA) for reliable current management.
- Copper clip technology for low inductance and high current transient robustness.
- Exposed leads for easy optical inspection.
Applications
- Automotive systems, including motor control and power supplies.
- Industrial power supplies and DC-DC converters.
- High-performance computing, such as point-of-load and Vcore applications.
- Power-over-Ethernet (PoE) and other high-current applications.
- Power tools, medical devices, and remote control vehicles.
